Classic Invisible Overflow Rectangular basin
Product Options
mounting options
standard pedestal
|
regal pedestal
|
with aluminium stand
|
with furniture
|

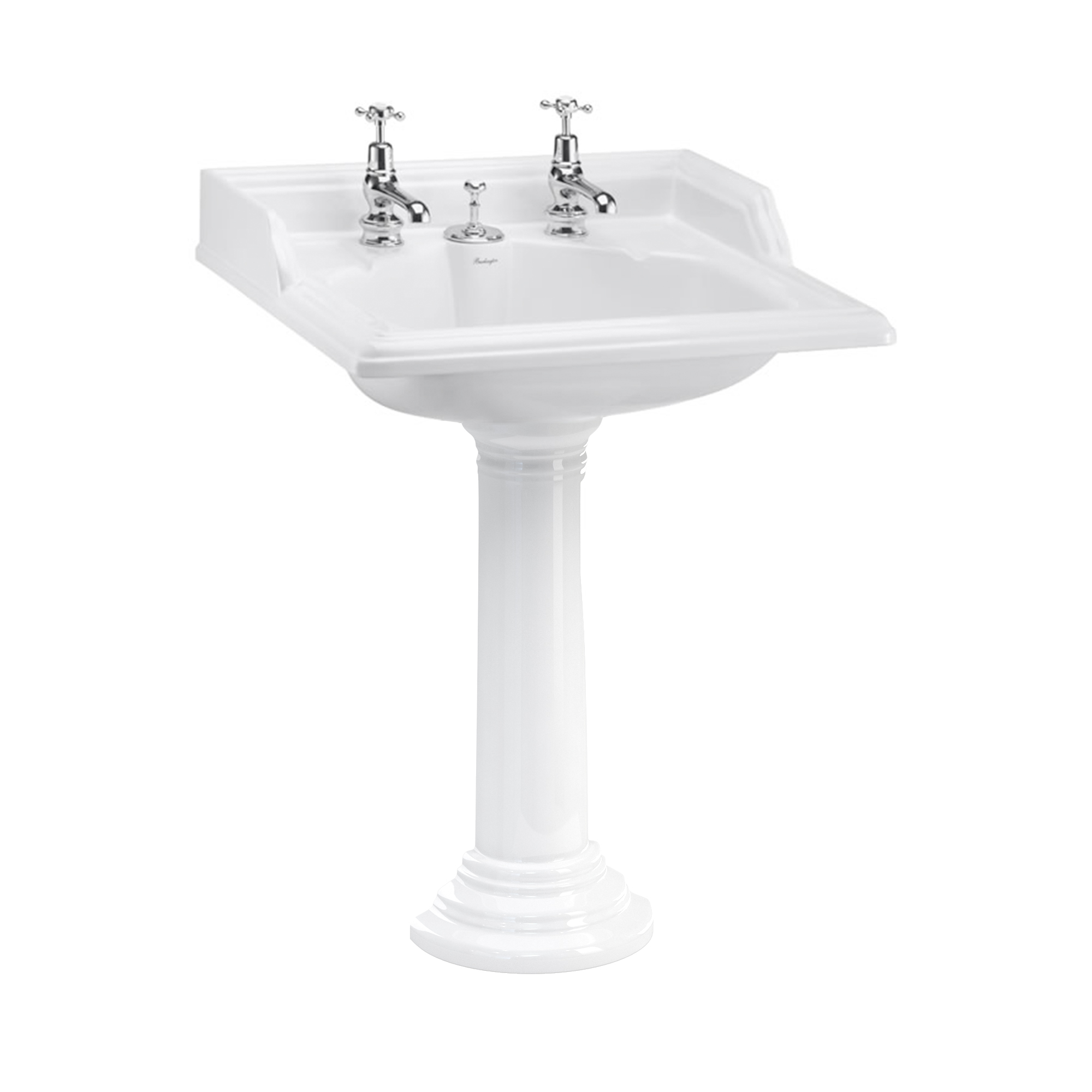

As Shown
| B14 Classic 65cm basin for integrated waste & overflow |
| P9R Regal round pedestal |
Nett Weight
| B14 - basin - 16.95kg |
| P9R - pedestal - 10kg |
Gross Weight Including Packaging
| B14 - basin - 21.15kg |
| P9R - pedestal - 11.5kg |
Packed Dimension
| B14 - 670 x 597 x 315 = 0.126 m3 |
| P9R - 360 x 315 x 745 = 0.0845 m3 |
Tap Hole Options
| Available with one (1TH), two (2TH) or three (3TH) tap holes |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
Available with two (2TH) tap holes only. This basin has 230mm tap hole centres which means it much be used with the arch basin mixer with 230mm tap centres or pillar taps. |
|
The invisible overflow drains the water when the water level reaches the top of the basin. |
Compatible Products
| W9 - Classic Basin Invisible Overflow & Waste |
Downloads
-
2D CAD-File - DWG -
B14 P9R
(B14_P9R_20201030.dwg)
-

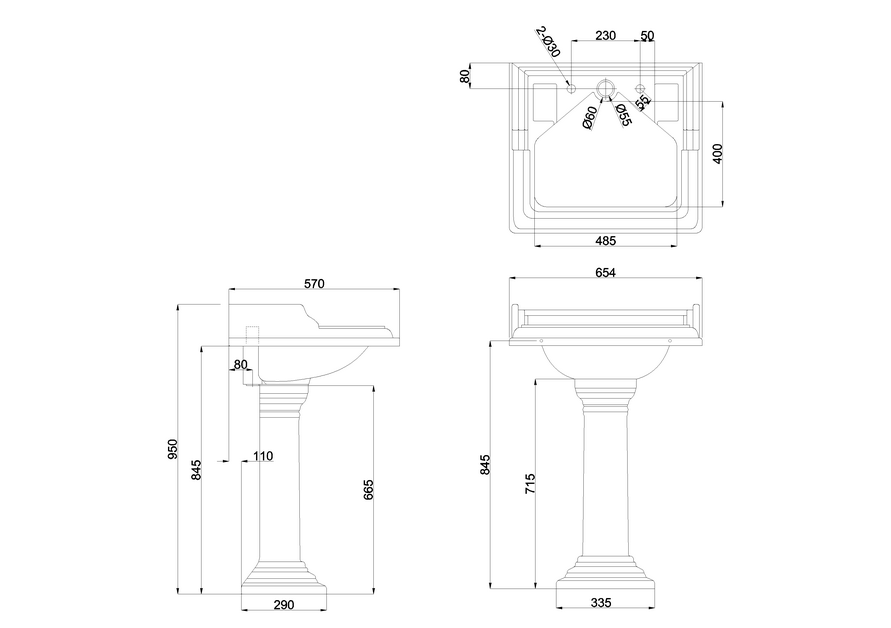

2D Drawing - PDF -
B14 P9R
(B14_P9R_20201030.pdf)
2D Drawing - PDF - B14 P9R
-
3D DWG - File - DWG
-
B14 P9R
(2702 with 70017.dwg)
-
3D RFA BIMM Objects - File - RFA
-
B14 P9R
(2702 with 70017.rfa)
