Standard S Low Level WC
asaq2.Model.Web_product_new?.web_name
Product Options
cistern size options
S trap low level WC with 520 lever cistern Standard Cistern S trap low level WC with 440 lever cistern Slimline Cistern
Cistern options
S trap low level WC with 440 lever cistern With Lever S trap low level WC with 440 front push button cistern With front push button
Alternate Text
As Shown
C3 Close coupled/low level ceramic lever cistern
P19 Burlington low level S trap pan
T31CHR Low Level Flush Pipe kit including Flush pipes and reverse screw cistern connector
S18 Gloss white soft close hinge seat
Colour
C3 - cistern - Gloss White
P19 - pan - Gloss White
T31CHR - fittings - Polished Chrome
S18 - seat - Gloss White
Material
C3 - cistern - Vitreous China
P19 - pan - Vitreous China
T31CHR - fittings - Brass
S18 - seat - Urea
Size
C3 - 215 x 450 x 330mm
P19 - 580 x 360 x 425mm
T31CHR - 221 x 38 x 420mm
S18 - 370 x 439 x 56mm
Nett Weight
C3 - cistern - 14.1kg
P19 - pan - 18.35kg
T31CHR - fittings - 1.27kg
S18 - seat - 2.53kg
Gross Weight Including Packaging
C3 - cistern - 16.3kg
P19 - pan - 21.2kg
T31CHR - fittings - 1.59kg
S18 - seat - 2.76kg
Packed Dimension
C3 - 537 x 227 x 360 = 0.0439 m3
P19 - 595 x 375 x 445 = 0.0993 m3
T31CHR - 440 x 230 x 65 = 0.0066 m3
S18 - 462 x 376 x 72 = 0.0125 m3
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 248:2002
BS EN 33:2019
BS EN 14055:2018
BS EN 997:2018
Additional Information
Inlet Position Inlet is located on the base of cistern tank on the right side
SP12 44cm Cistern Lid for C3 & C4
SP511 back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021 bottom sealing washer of flush valve for product C1, C3, C3, C4
SP965 brass decorative cover of cistern connection for product T31 CHR
SP1353 brass fixing nut for all finishes products of T30, T31, T33, T34
SP17A chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP5 cistern fittings for C3 (with small metal spacer)
SP84 cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP9 cistern Push Button
SP890 flush pipe of product T31 CHR
SP504_2 inlet valve for Burlington close coupled cisterns
SP508 kit for close couple cistern
SP507 kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP160 l shape bracket(pair) for T31CHR
SP17 screw fixing pack for pan and bidet
SP387 WC floor fixing plastic caps - GOLD
SP1744 white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
Downloads
  • Instructions - PDF - C3 (English)
  • Instructions - PDF - T31CHR (English)
  • Instructions - PDF - S18 (English)
  • Instructions - PDF - S18 (French)
  • Instructions - PDF - T31CHR (French)
  • Instructions - PDF - C3 (French)
  • 3D DWG - File - DWG  -  C3 T31 CHR P19 (70028.dwg)
  • 3D RFA BIMM Objects - File - RFA  -  C3 T31 CHR P19 (70028.rfa)
  • 3D STP - File - STP  -  C3 T31 CHR P19 (C3.stp)
  • 3D STP - File - STP  -  C3 T31 CHR P19 (P19.stp)
  • 3D IGS - File - IGS  -  C3 T31 CHR P19 (t31.igs)
  • 3D IGS - File - IGS - S18 (S18.igs)
  • Lifestyle image 1 - tiff pending.
  • Product image 1 - jpg

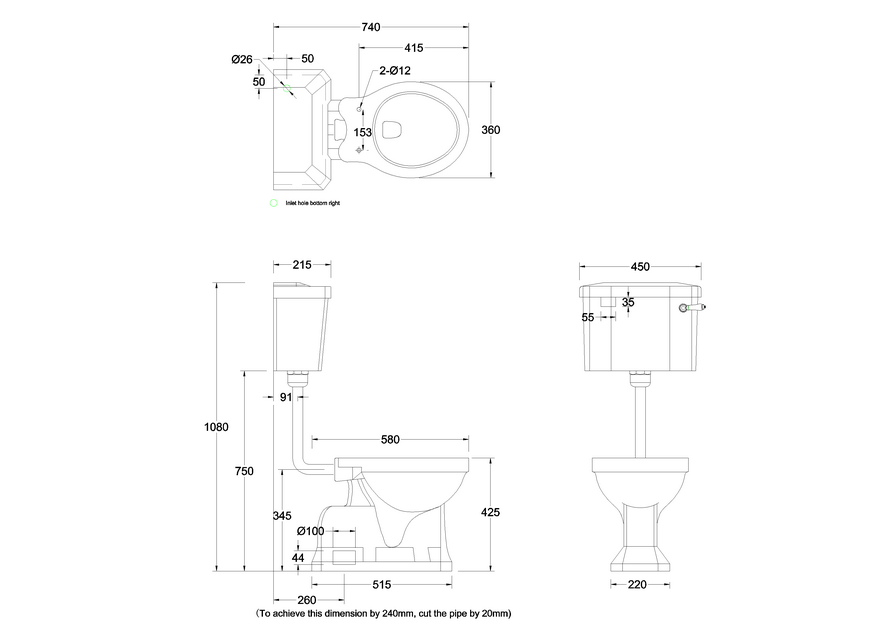

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
