ClearGreen Baths - Viride Baths
Product Options
Bath size options
left hand
|
right hand
|
As Shown
| R39 Viride offset bath RH |
Colour
| R39 - bath - Gloss White |
Material
| R39 - bath - Acrylic |
Nett Weight
| R39 - bath - 23.75kg |
Gross Weight Including Packaging
| R39 - bath - 24.35kg |
Packed Dimension
| R39 - 1710 x 760 x 450 = 0.5848 m3 |
Bath water capacity
| 135 litres displaced water capacity |
Tap Hole Options
| 0, 1, 2 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Overflow hole is predrilled |
Compatible Products
| CW8 - Click-clack bath waste |
| R40 - Viride offset bath panel 1700 x 750mm |
| SP231 | leg sets for Enviro, Sustain, EcoCurve, Verde, Reuse, Viride baths |
Downloads
-
2D CAD-File - DWG -
R39
(R39.dwg)
-

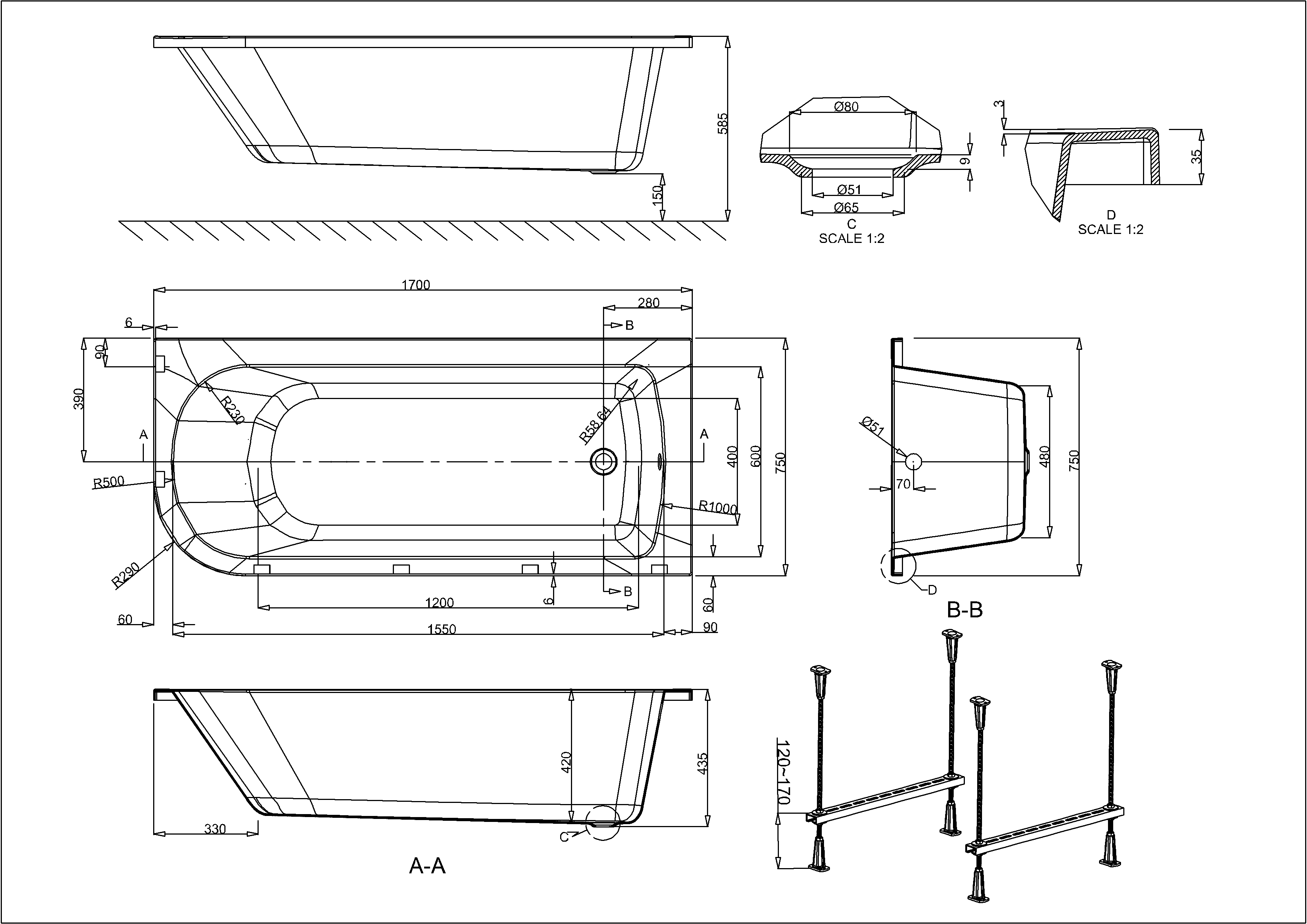

2D Drawing - PDF -
R39
(R39.pdf)
2D Drawing - PDF - R39
-
3D DWG - File - DWG
-
R39
(R39BS-1777H-R_1.dwg)
-
3D DXF - File - DXF
-
R39
(R39BS-1777H-R_1.dxf)
-
3D IGS - File - IGS
-
R39
(R39BS-1777H-R_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
R39
(R39.rfa)
