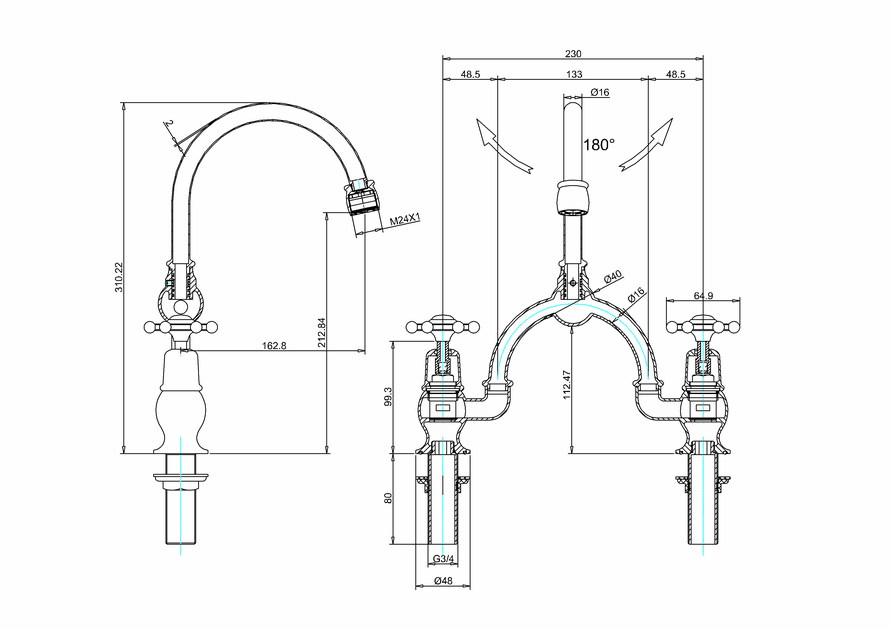

Burlington arch basin mixer with curved spout (230 mm tap centers)
asaq2.Model.Web_product_new?.web_name
Product Options
Tap Head Options (Chrome Finish Shown)
2 tap hole arch mixer with curved spout (230mm centres) Claremont 2 tap hole arch mixer with curved spout (230mm centres) Anglesey Ceramic Tap Hand_T1_PAGE71_PAGE73.jpg Birkenhead
Quarter turn options
2 tap hole arch mixer with curved spout (230mm centres) quarter turn full_done.jpg tradional screw-down
Tap Base options

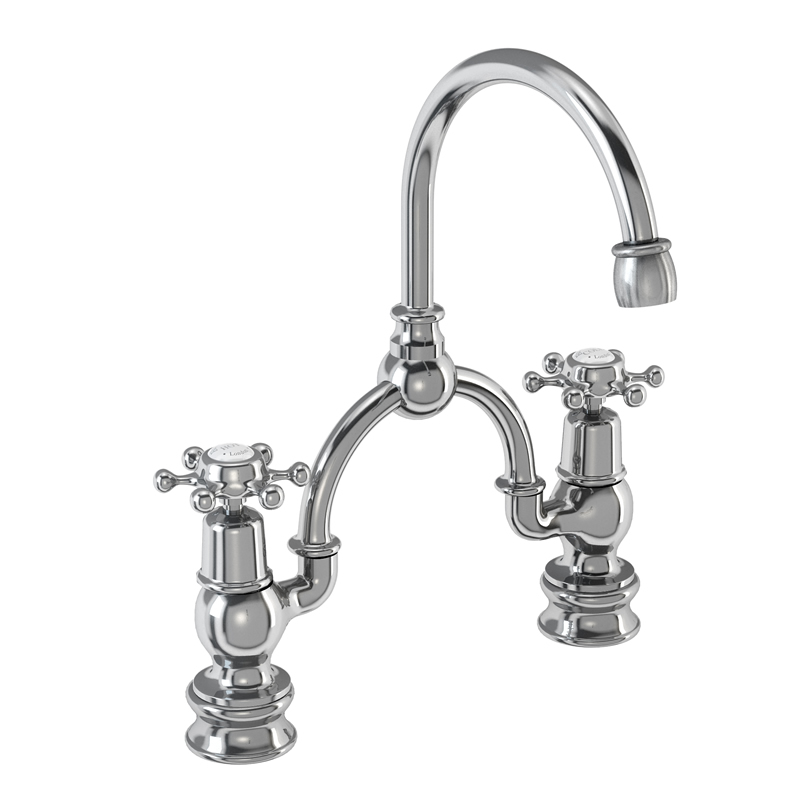

2 tap hole arch mixer with curved spout (230mm centres) Standard base 2 tap hole arch mixer with curved spout (230mm centres) Regent base
Indicies & lever finish

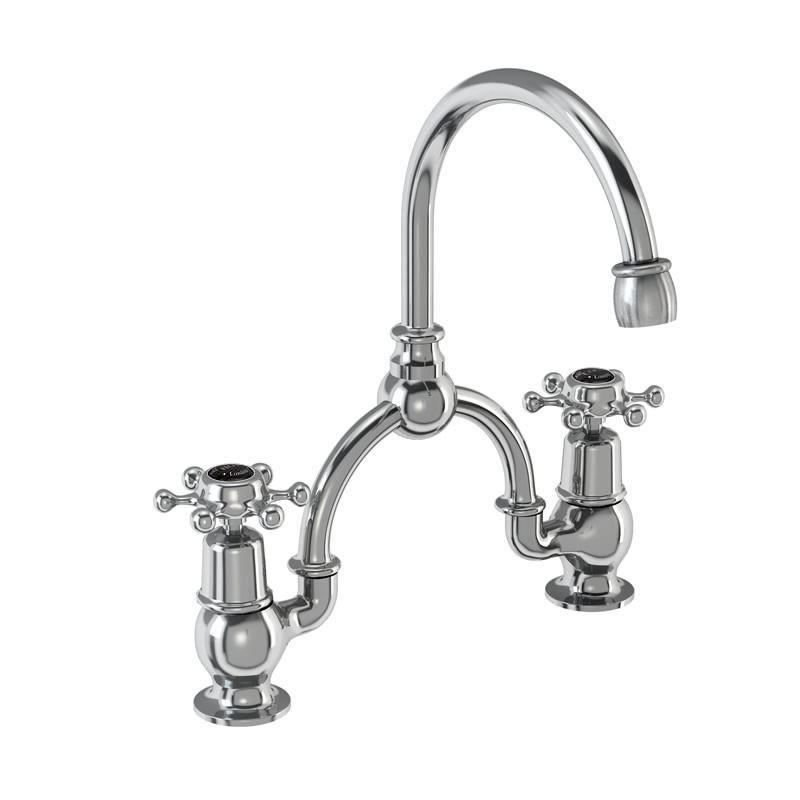

2 tap hole arch mixer with curved spout (230mm centres) White Birkenhead Medici 2 tap hole arch mixer with curved spout (230mm centres) Medici 2 tap hole arch mixer with curved spout (230mm centres) Black
Alternate Text

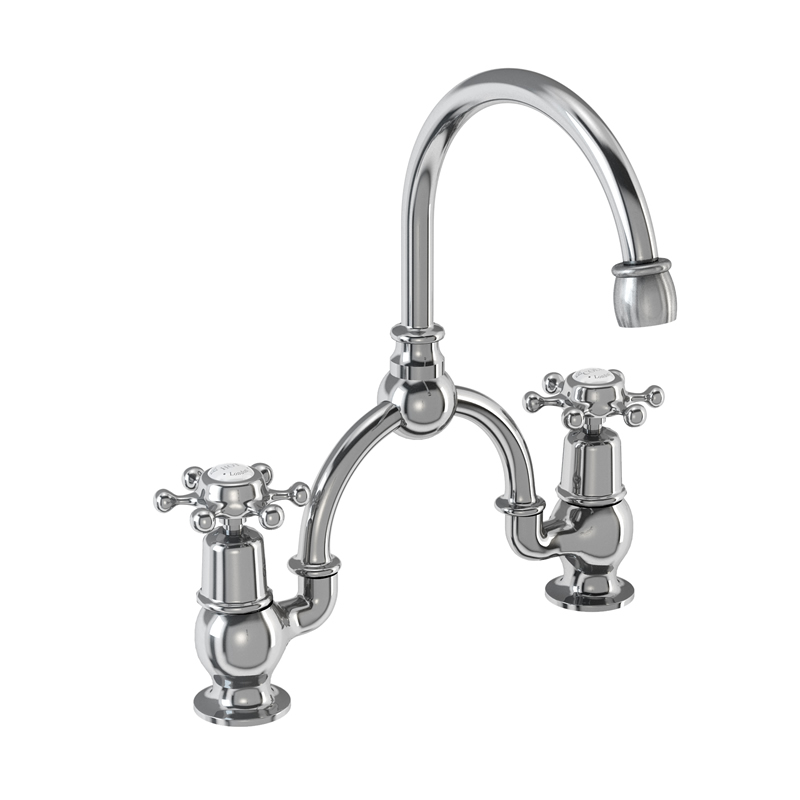

As Shown
T25 Arch mixer with curved spout 3TH
T3 Birkenhead tap handles
BI28  -  Combined product code
Gross Weight Including Packaging
T25 - tap - 2.24kg
T3 - tap handle - 0.2kg
Guarantee
15 year guarantee*
*Full terms & conditions here
Standards Information
BS EN 200:2008
BS EN 817:2008
Additional Information
Supplied with flow straighter for use with low water pressure
Also supplied with aerator for use with high water pressure
This Tap is for fitting to classic basins with invisible overflow B14, B16
Flow Rates
System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar 4 bar 5 bar
Spout (straightener) 10.3  16.28  23  33.3  41.8  n/a  n/a
Spout (aerator) 4.7  7.3  10.5  15.1  18.56  n/a  n/a
SP162 aerator & flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP1548 aerator for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP523 chrome finish Bell shape part for T5, T6, T7, T8, T9, T10, T11, T12, T13, T14, T15, T16, T26, T24, T25, T27 and relative Quarter turn taps
SP931 decorative cap of Burlington tap handles - cold
SP930 decorative cap of Burlington tap handles - hot
SP93 fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3)
SP1547 flow straightener for all finishes products of T27-QT, T2WB, T25, T9, T2WS, T25-QT, T11, T8-QT, T10-QT, T2DB, T10, V32, T24, T2DS, T9-QT, T24-QT, T8
SP92 G3, 4 fixing nut and washer for all finishes products of T7, T18, T14-QT
SP1006 o rings of spout for all finishes products of T24, T24-QT, T25, T25-QT, T8, T8-QT, T9, T9-QT
SP45 T1, T2, T3 'Hot' and 'Cold' ceramic indice
SP27 T9, T24, T25 3, 4 full turn cartridge
SP99 the fixing screw and washer for T1, T2, T3, T4, V1, V2, V3
SP1093 thread tube O ring seal for all finishes products of T16, T16-QT, T14, T14-QT, T24, T24-QT, T25, T25-QT, T26, T5, T5-QT, T6, T6-QT, T7, T7-QT
