Straight radiator valves
Product Options
Finish Options
chrome & white
|
chrome & medici
|
nickel & white
|
gold
|
brushed nickel
|
As Shown
| R7 NKL Straight radiator Valve - nickel |
Material
| R7 NKL - valve - Brass |
Nett Weight
| R7 NKL - valve - 0.9kg |
Gross Weight Including Packaging
| R7 NKL - valve - 1kg |
Packed Dimension
| R7 NKL - 150 x 120 x 50 = 0.0009 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 2767:1991 |
| SP93 | fixing screw and washer for all finishes products of valve handle (T1, T2, T3, V1, V2, V3) |
| ARCSP36 | nickel finish floor caps for ARCR6 NKL, ARCR7 NKL, R6 NKL, R7 NKL (pair) |
| SP1784 | olives part (one pair) for R6 CHR, R7 CHR, AF1S, AF3S, EF1S, EF2S, T2WB, T2WS |
| SP1017 | set of washers for product R6 CHR, R7 CHR, ARCR6 NKL, ARCR7 NKL, ARCR6 CHR, ARCR7 CHR, R6 GOLD, R7 GOLD |
Downloads
-
2D CAD-File - DWG -
R7 NKL
(ARCR7 NKL_LD.dwg)
-

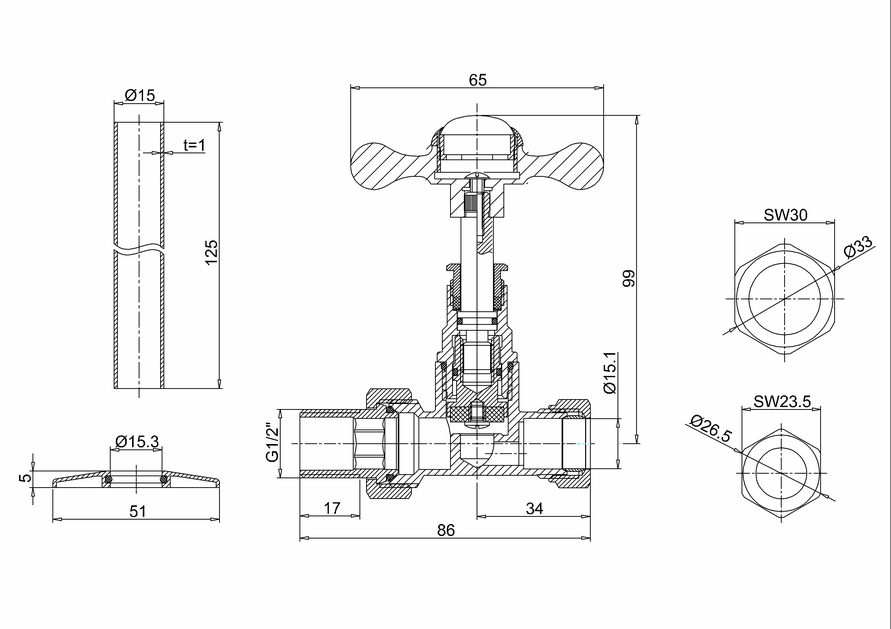

2D Drawing - PDF -
R7 NKL
(ARCR7 NKL_LD.pdf)
2D Drawing - PDF - R7 NKL
-
3D DWG - File - DWG
-
R7 NKL
(R7_1.dwg)
-
3D DXF - File - DXF
-
R7 NKL
(R7_1.dxf)
-
3D IGS - File - IGS
-
R7 NKL
(R7_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
R7 NKL
(R7_1.rfa)
