900mm basin
Product Options
mounting options
overflow finish options
tap hole options
|
pedestal
|
basin stand
|
ceramic console legs
|
|
nickel overflow
|
chrome overflow
|
no tap holes
|
1 tap hole
|
2 tap holes
|
3 tap holes
|

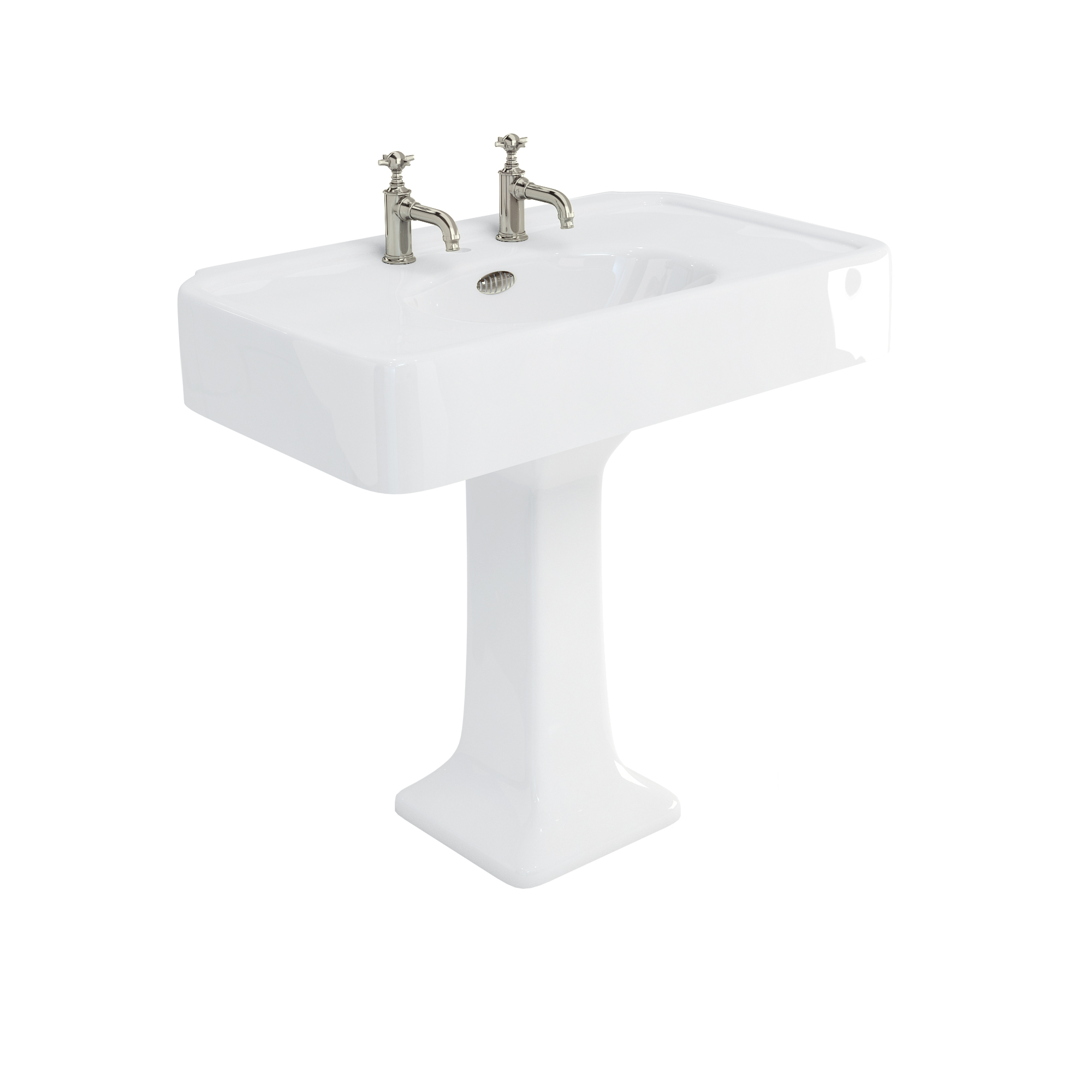

As Shown
| ARC900 2TH 900mm Arcade basin 2TH |
| ARC1 Arcade pedestal |
Gross Weight Including Packaging
| ARC900 2TH - basin - 34.9kg |
| ARC1 - pedestal - 16.1kg |
Tap Hole Options
| Available with no(NT), one(1TH), two(2TH) or three(3TH) tap holes. |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
|
A chrome overflow ring availabel as optional item(A68 CHR). |
|
To order the correct tap hole configuration simply use NTH, 1TH, 2TH or 3TH at the end of the basin product code. |
Compatible Products
| W18 NKL - Flip top basin waste (for basins with overflow ) |
| A68CHR | arcade overflow of basin - chrome |
| ARCSP8 | arcade overflow ring - nickel |
Downloads
-
2D CAD-File - DWG -
ARC900 2TH ARC1
(ARC1-ARC900 2TH_20201127.dwg)
-
2D Drawing - PDF -
ARC900 2TH ARC1
(ARC1-ARC900 2TH_20201127.pdf)
2D Drawing - PDF - ARC900 2TH ARC1
-
3D DWG - File - DWG
-
ARC900 2TH ARC1
(80053.dwg)
-
3D DXF - File - DXF
-
ARC900 2TH ARC1
(80053.dxf)
-
3D IGS - File - IGS
-
ARC900 2TH ARC1
(80053.igs)
-
3D RFA BIMM Objects - File - RFA
-
ARC900 2TH ARC1
(80053.rfa)
