1200mm basin
Product Options
mounting options
overflow finish options
tap hole options
basin stand
|
ceramic console legs
|
|
nickel overflow
|
chrome overflow
|
|
no tap holes
|
1 tap hole
|
2 tap holes
|
3 tap holes
|

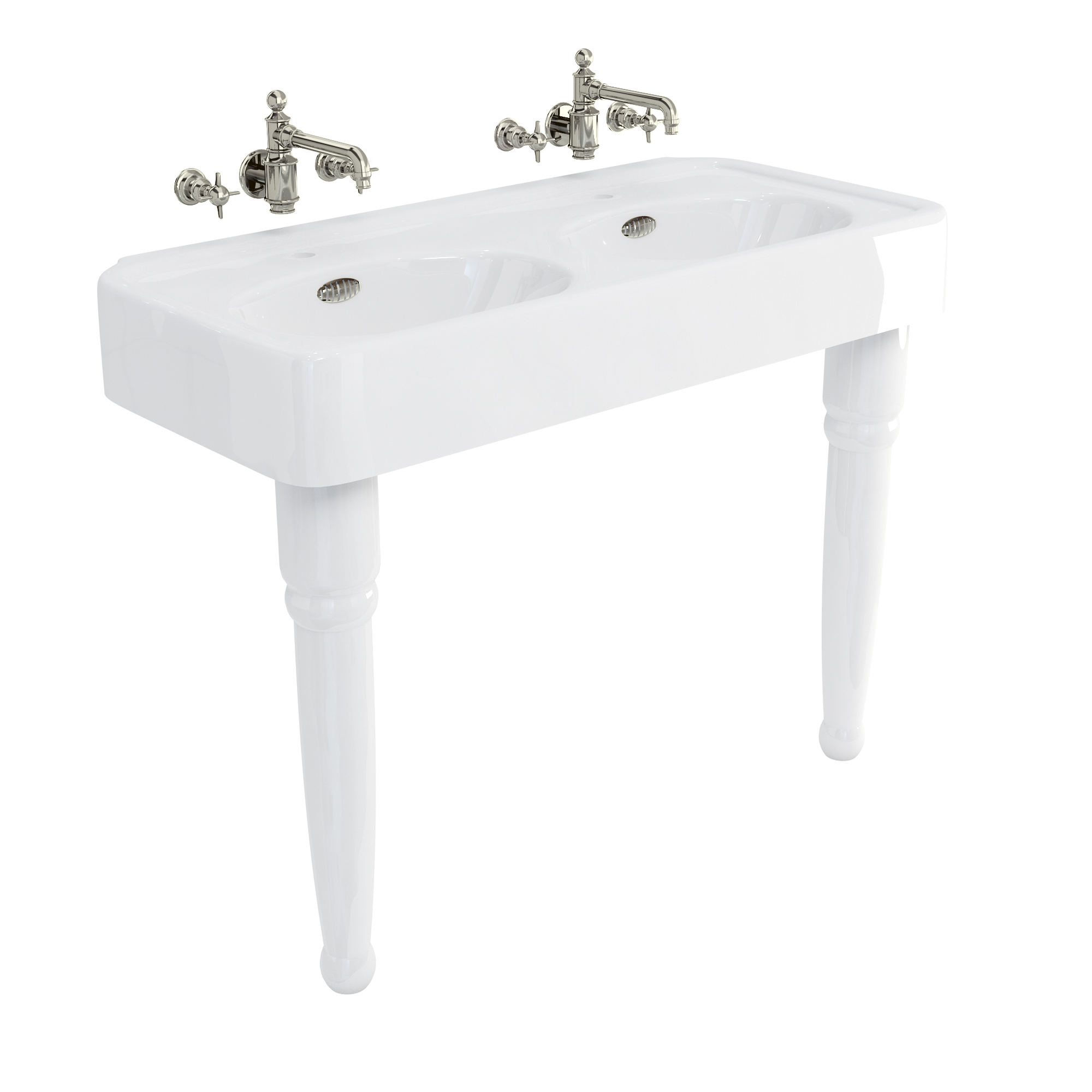

As Shown
| ARC1200 NTH 1200mm Arcade double basin NTH |
| ARC2 Arcade ceramic console legs |
Nett Weight
| ARC1200 NTH - basin - 40.9kg |
| ARC2 - legs - 6.6kg |
Gross Weight Including Packaging
| ARC1200 NTH - basin - 45.5kg |
| ARC2 - legs - 7.6kg |
Tap Hole Options
| Available with no(NT), one(1TH), two(2TH) or three(3TH) tap holes. |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2006 |
|
BS EN 31:2011 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W14 - Traditional basin bottle trap |
| W18 NKL - Flip top basin waste (for basins with overflow ) |
| W4 NKL - Traditional bottle trap with extended wall tube |
| W18 - Flip-top basin waste slotted |
| A68CHR | arcade overflow of basin - chrome |
| ARCSP8 | arcade overflow ring - nickel |
Downloads
-
2D CAD-File - DWG -
ARC1200 NTH ARC2
(ARC2-ARC1200 NTH_20201127.dwg)
-

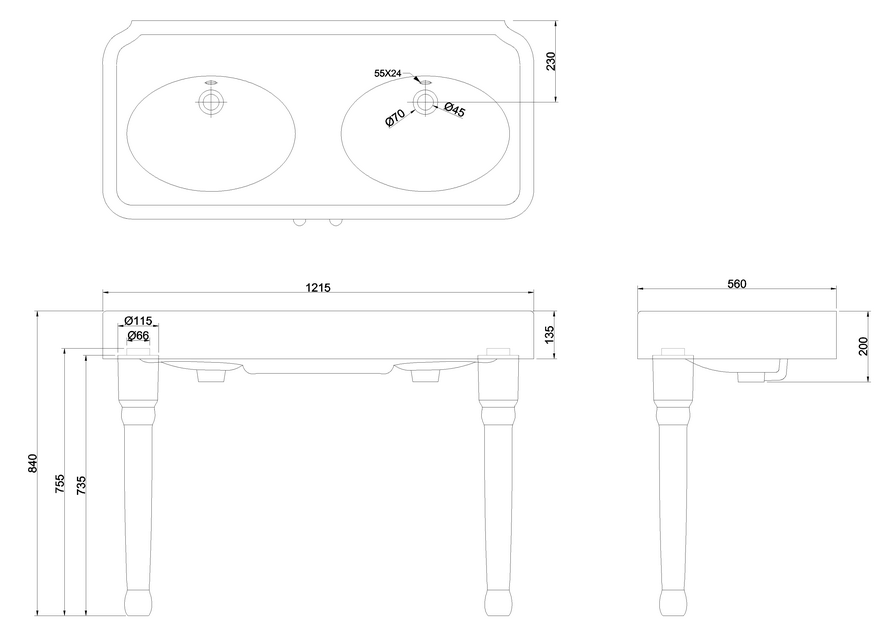

2D Drawing - PDF -
ARC1200 NTH ARC2
(ARC2-ARC1200 NTH_20201127.pdf)
2D Drawing - PDF - ARC1200 NTH ARC2
-
3D DWG - File - DWG
-
ARC1200 NTH ARC2
(80059.dwg)
-
3D DXF - File - DXF
-
ARC1200 NTH ARC2
(80059.dxf)
-
3D IGS - File - IGS
-
ARC1200 NTH ARC2
(80059.igs)
-
3D RFA BIMM Objects - File - RFA
-
ARC1200 NTH ARC2
(80059.rfa)
-
