Arcade open back close-coupled pan and dual flush cistern
Product Options
finish options
chrome
|
nickel
|
As Shown
| ARC3 Arcade open back close coupled pan |
| ARC5 Arcade close coupled cistern |
| S45 Soft close seat |
| A51 NKL Burlington seat handle Nickel |
| A75 NKL Burlington soft close hinges with screws (pair) - Nickel |
| ARCSP6 Arcade/Riviera cistern lever |
Colour
| ARC3 - pan - white |
| ARC5 - cistern - Gloss White |
| S45 - seat - Matt White |
| A51 NKL - accessories - Polished Nickel |
| A75 NKL - hinge - Polished Nickel |
| ARCSP6 - cistern lever - nickel |
Material
| ARC3 - pan - vitreous china |
| ARC5 - cistern - Vitreous China |
| S45 - seat - Engineered Wood - MDF |
| A51 NKL - accessories - Brass |
| A75 NKL - hinge - Zinc Alloy |
| ARCSP6 - cistern lever - zinc alloy |
Size
| ARC3 - 665 x 365 x 480mm |
| ARC5 - 185 x 500 x 405mm |
| S45 - 432 x 371 x 67mm |
| A51 NKL - 56 x 56 x 8mm |
| A75 NKL - 72 x 80 x 34mm |
| ARCSP6 - 80 x 25 x 80mm |
Nett Weight
| ARC3 - pan - 26.25kg |
| ARC5 - cistern - 16.95kg |
| S45 - seat - 3.33kg |
| A51 NKL - accessories - 0.04kg |
| A75 NKL - hinge - 0.5kg |
| ARCSP6 - cistern lever - 0.04kg |
Gross Weight Including Packaging
| ARC3 - pan - 28.6kg |
| ARC5 - cistern - 18.8kg |
| S45 - seat - 3.58kg |
| A51 NKL - accessories - 0.07kg |
| A75 NKL - hinge - 0.5kg |
| ARCSP6 - cistern lever - 0.05kg |
Packed Dimension
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
|
BS EN 33:2019 |
Additional Information
|
Supplied with floor fixings |
| ARCSP7 | arcade cistern fittings - chrome |
| ARCSP9 | arcade floor fixings for pan and bidet - nickel |
| ARCSP6 | arcade, Riviera cistern lever |
| A69CHR | arcade, Riviera cistern lever & caps of floor fixing – chrome |
| SP509 | buffers for the seat ring & lid for S11, S12, S16, S17 |
| ARCSP67 | cistern lid for ARC5 |
| SP192 | hinge fixings for S11, S12, S16, S17 seats |
| SP504_2 | inlet valve for Burlington close coupled cisterns |
| SP802 | the bigger stopper for SP5A, ARCSP7, C24C, SP7 |
| SP864 | white buffers for the seat ring & lid for product S45, ARCS45 NKL, S46, RIV.025, S101 |
Downloads
- Instructions - PDF - ARC5 (English)
- Instructions - PDF - S45 (English)
- Instructions - PDF - A75 NKL (English)
- Instructions - PDF - S45 (French)
- Instructions - PDF - ARC5 (French)
- Instructions - PDF - A75 NKL (French)
-
2D CAD-File - DWG -
ARC3 ARC5 NKL
(ARC3 ARC5_20201127.dwg)
-
2D Drawing - PDF -
ARC3 ARC5 NKL
(ARC3 ARC5_20201127.pdf)
2D Drawing - PDF - ARC3 ARC5 NKL
-
3D DWG - File - DWG
-
ARC3 ARC5 NKL
(80071-20201127.dwg)
-
3D RFA BIMM Objects - File - RFA
-
ARC3 ARC5 NKL
(80071-20201127.rfa)
-
3D STP - File - STP
-
ARC3 ARC5 NKL
(ARCSP6.stp)
-

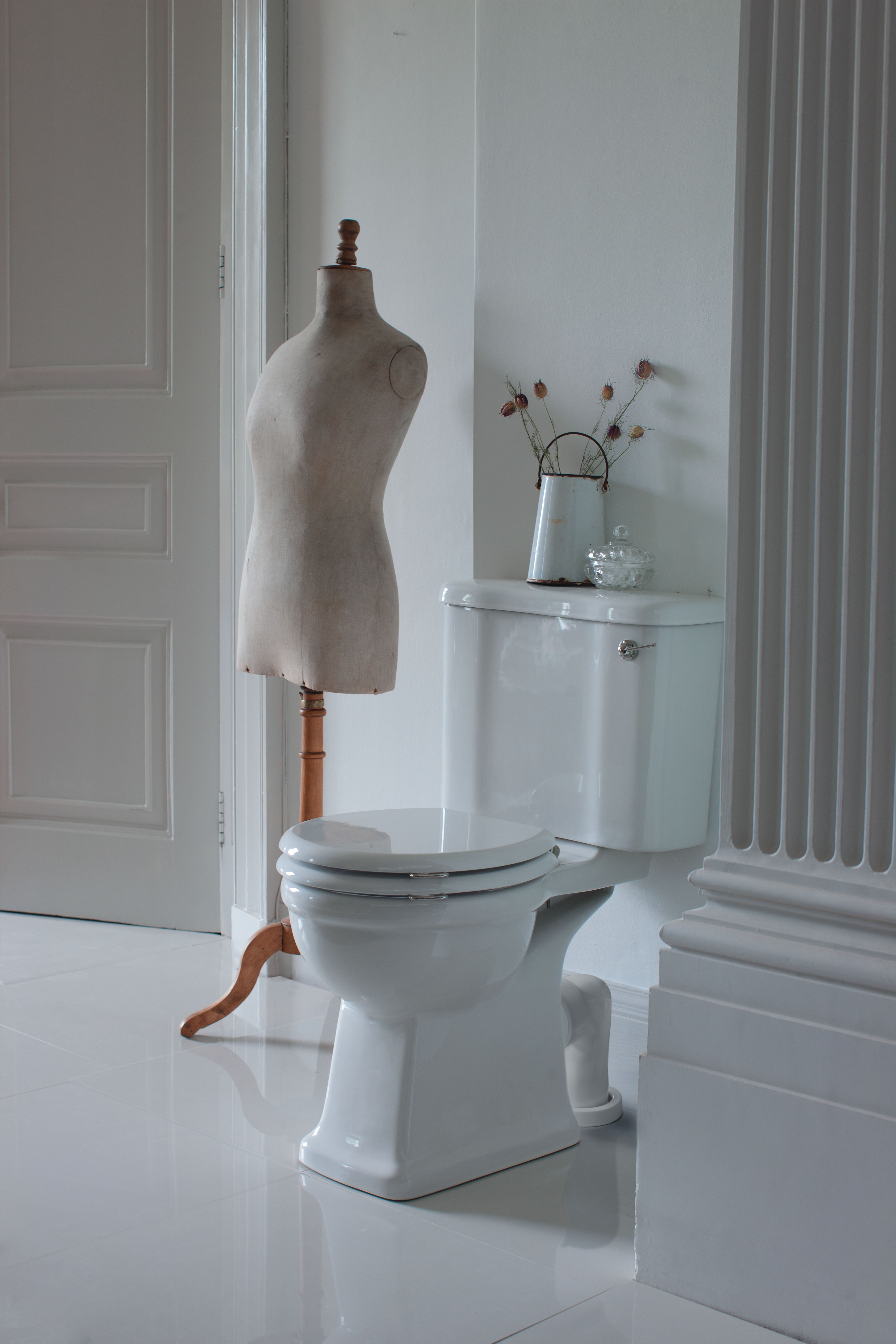

Lifestyle image 1 -
tiff
jpg -

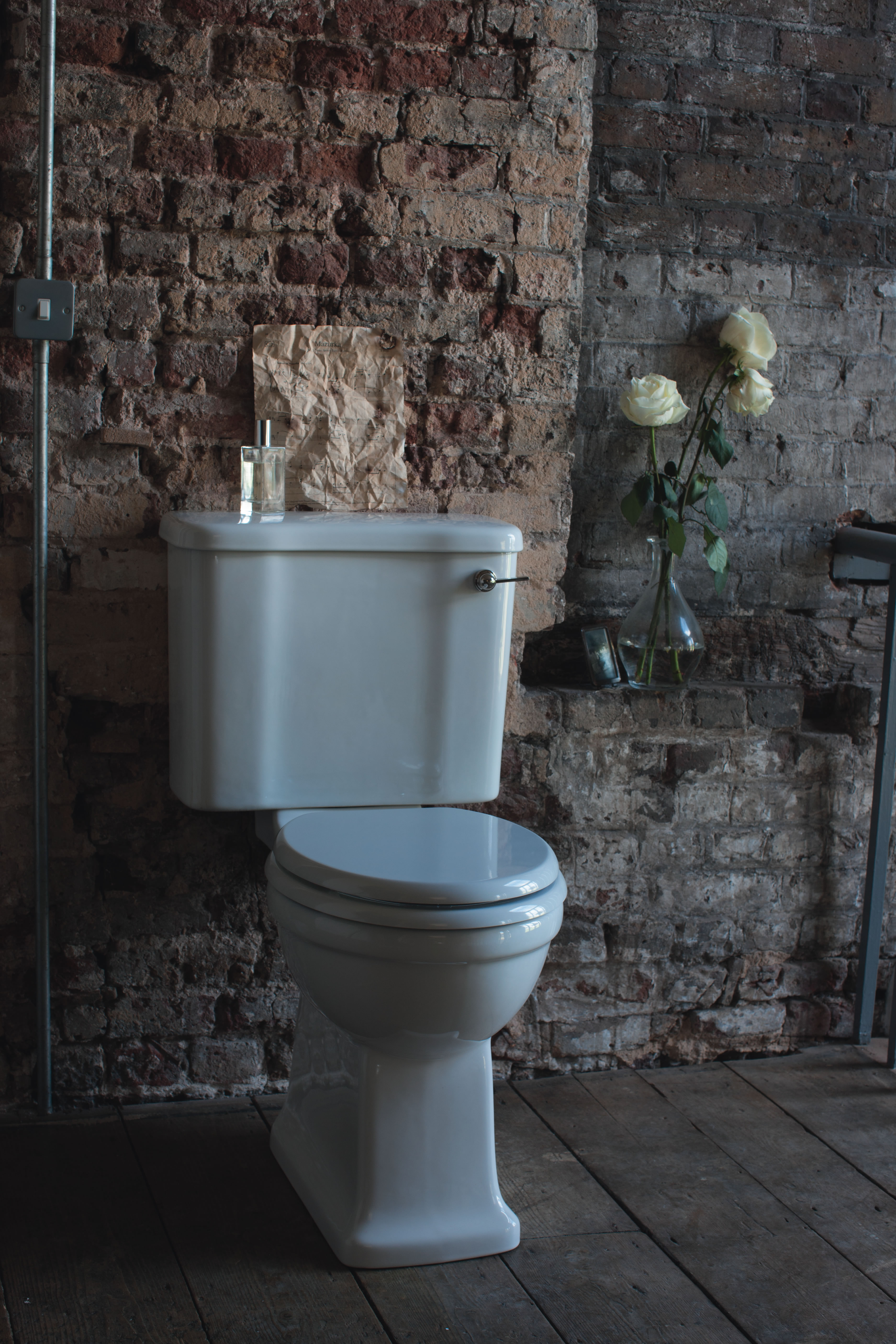

Lifestyle image 2 -
tiff
jpg -

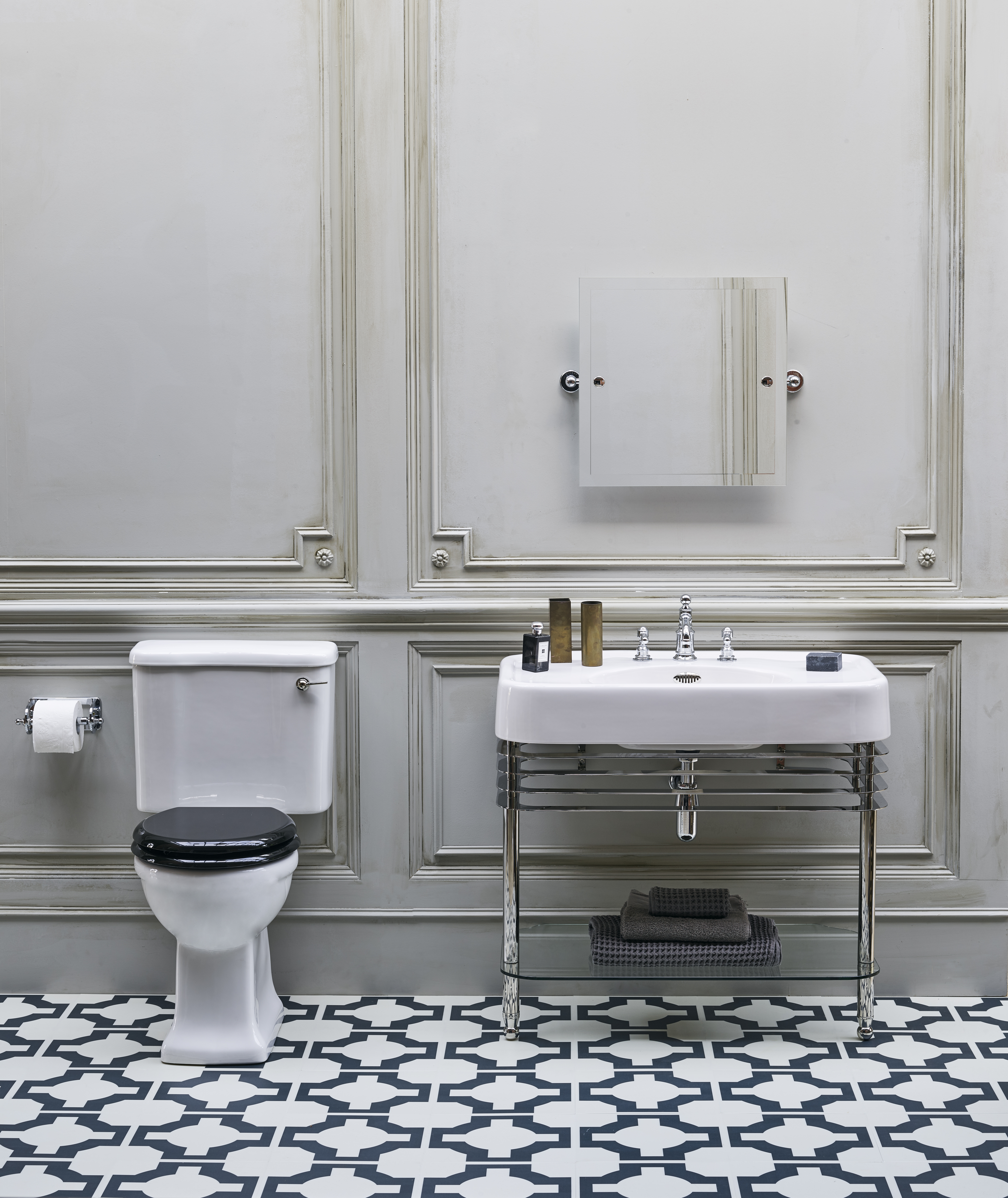

Lifestyle image 3 -
jpg -
Product image 1 -
jpg
