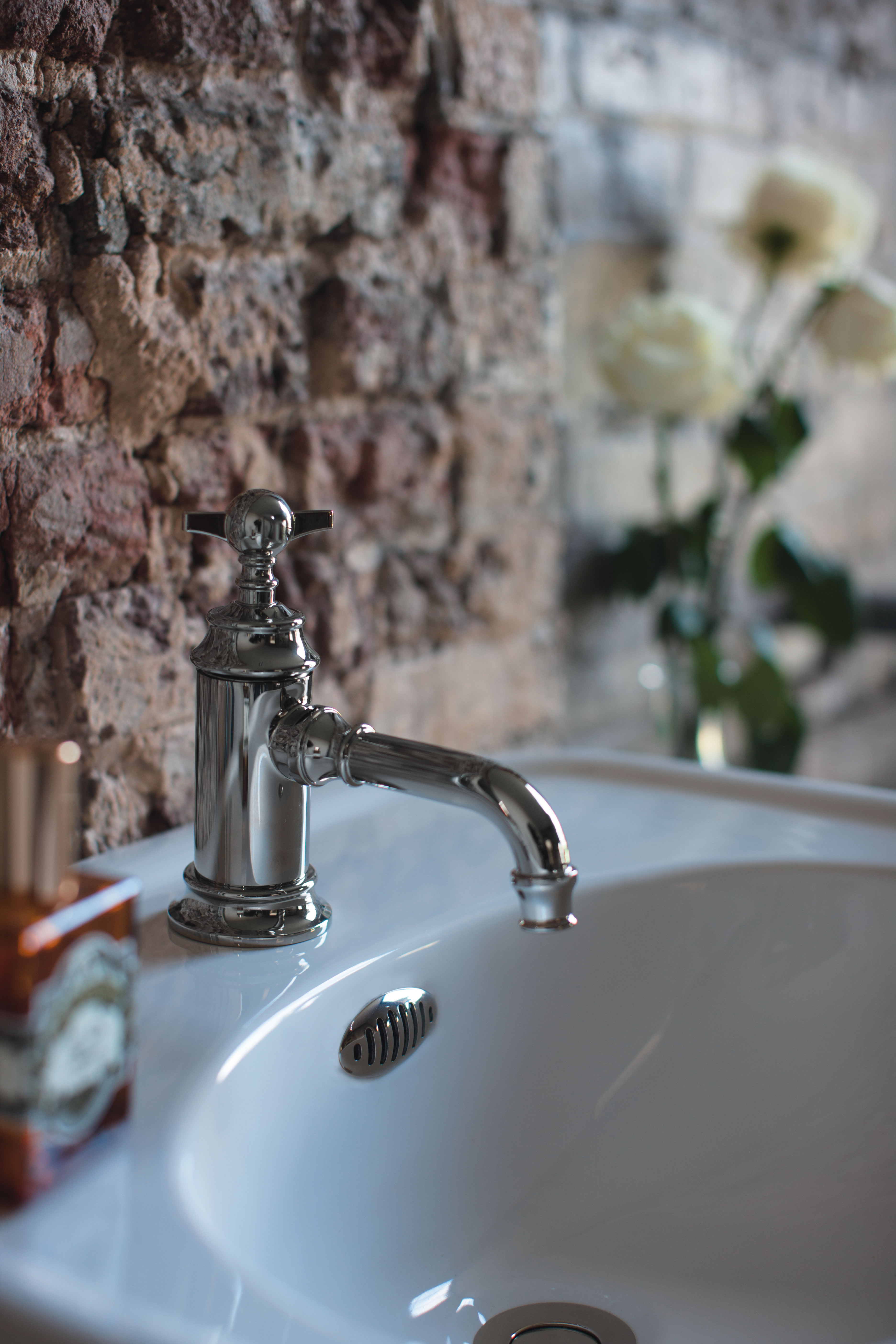

Arcade single-lever basin mixer without pop up waste
Product Options
finish options
handle options
chrome
|
nickel
|
|
crosshead handle
|
brass lever
|

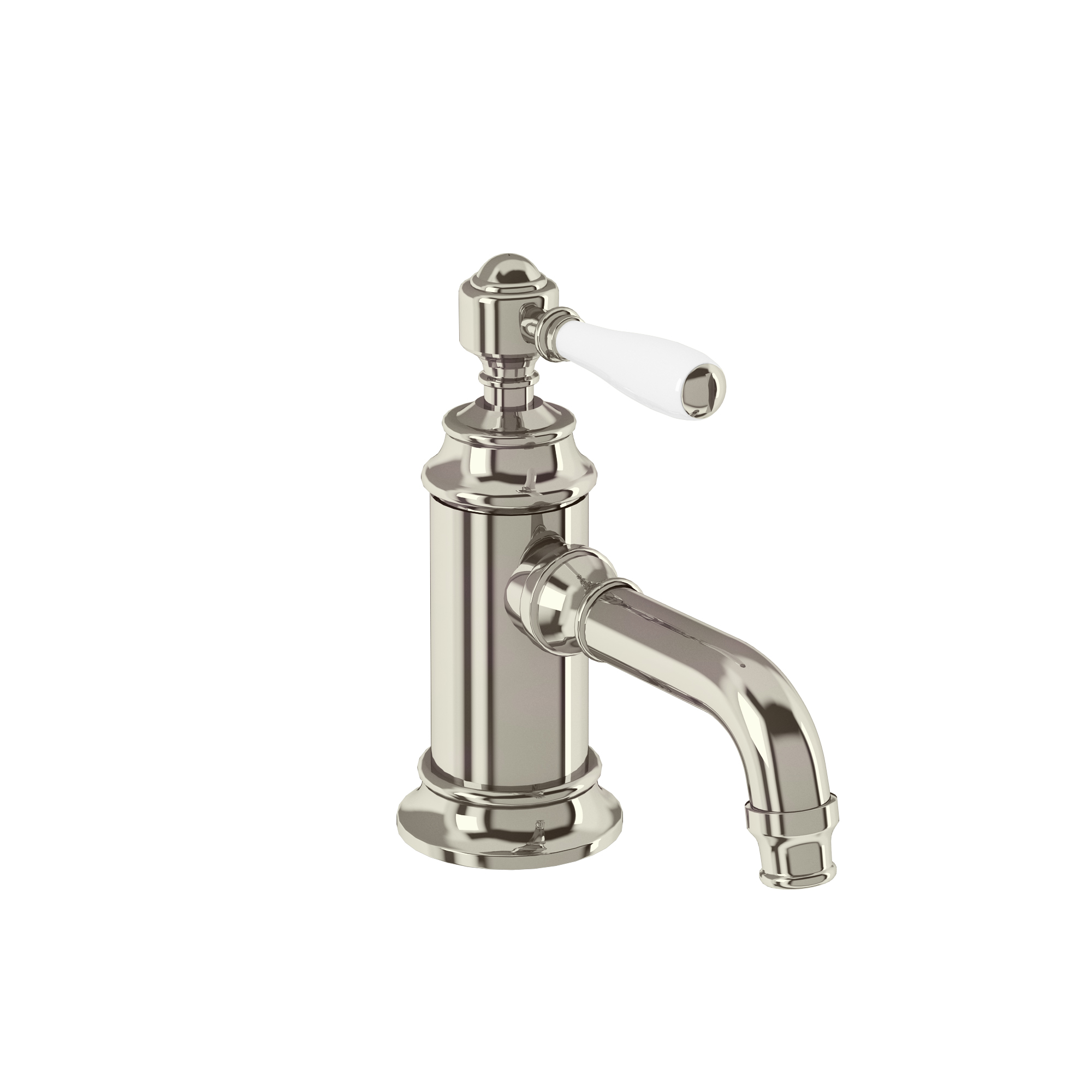

white ceramic lever
|

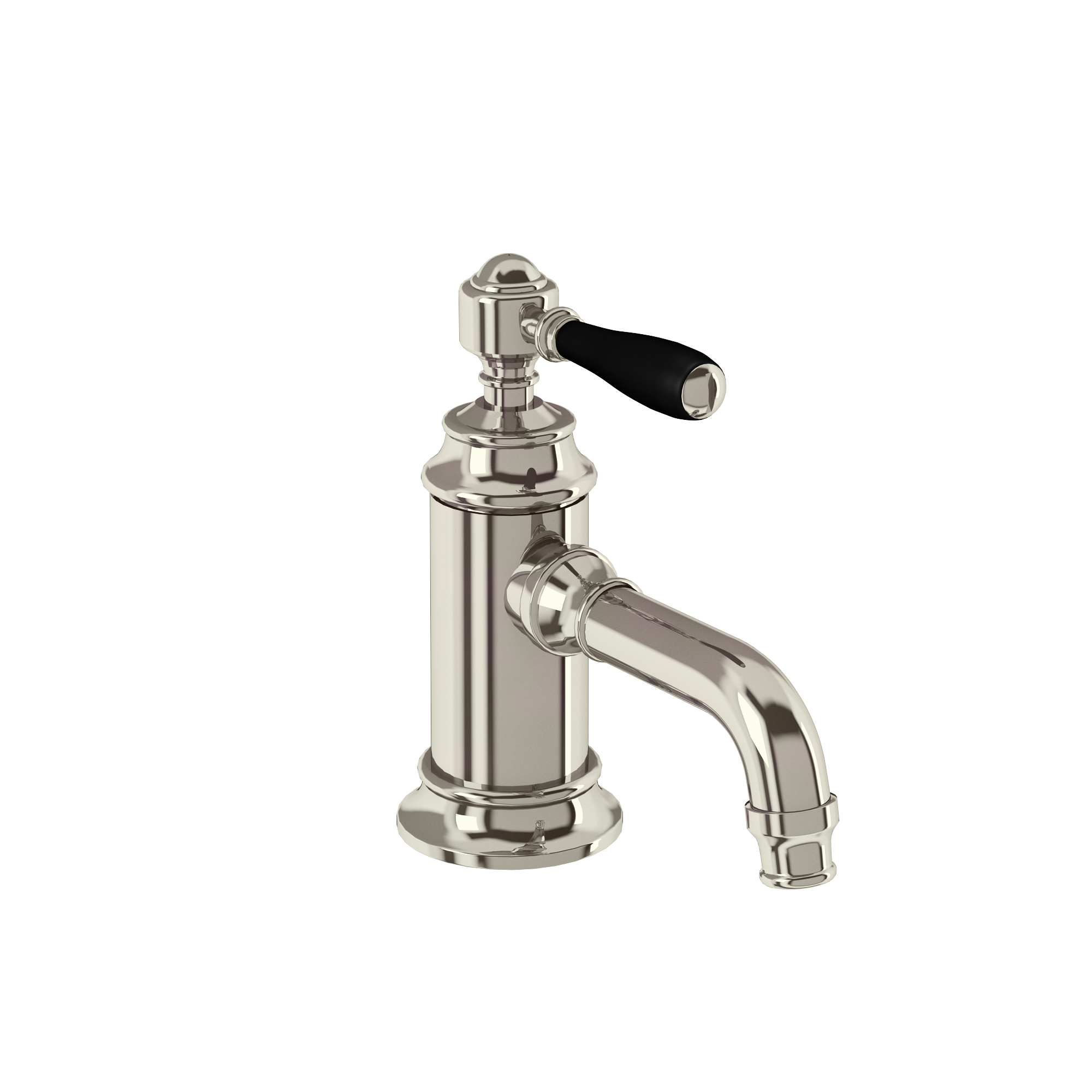

gloss black ceramic lever
|
As Shown
| ARC 2012 NKL Arcade single lever basin mixer without pop up waste - nickel |
| ARCHLN Crosshead handle (pair) for ARCADE 2012,2013,2018,2019- nickel, 64*64mm |
| ACL12N - Combined product code |
Nett Weight
| ARC 2012 NKL - tap - 1.2kg |
| ARCHLN - handle - 0.27kg |
Gross Weight Including Packaging
| ARC 2012 NKL - tap - 1.4kg |
| ARCHLN - handle - 0.33kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Flow Straighter | 4.51 | 8.34 | 12.18 | 17.9 | 22.26 | 25.75 | 29.13 |
| Aerator | 2.83 | 4.9 | 7.56 | 10.83 | 13.61 | 15.5 | 17.56 |
| ARCSP182 | flow straightener for Arcade Basin taps |
| ARCSP141 NKL | nickel finish Crosshead handle (single piece) for Arcade basin taps(ARC12, ARC2012 NKL) and Arcade bath tap(ARC2018 NKL, ARC18, ARC2019 NKL, ARC19) |
| SP1491 | screw set (1pc) for Arcade tap handle(except ARC12, ARC12 CHR, ARC35, ARC35 CHR) |
Downloads
- Instructions - PDF - ARC 2012 NKL (English)
- Instructions - PDF - ARCHLN (English)
- Instructions - PDF - ARCHLN (French)
- Instructions - PDF - ARC 2012 NKL (French)
-
2D CAD-File - DWG -
ACL12N
(ARC 2012_ARCHL _NKL_CHR.dwg)
-
2D Drawing - PDF -
ACL12N
(ARC 2012_ARCHL _NKL_CHR.pdf)
2D Drawing - PDF - ARC12 NKL
-
3D RFA BIMM Objects - File - RFA
-
ACL12N
(ACL12C.rfa)
- 3D IGS - File - IGS - ARC 2012 NKL (ARC 2012.igs)
- 3D IGS - File - IGS - ARCHLN (ARCHLC.igs)
