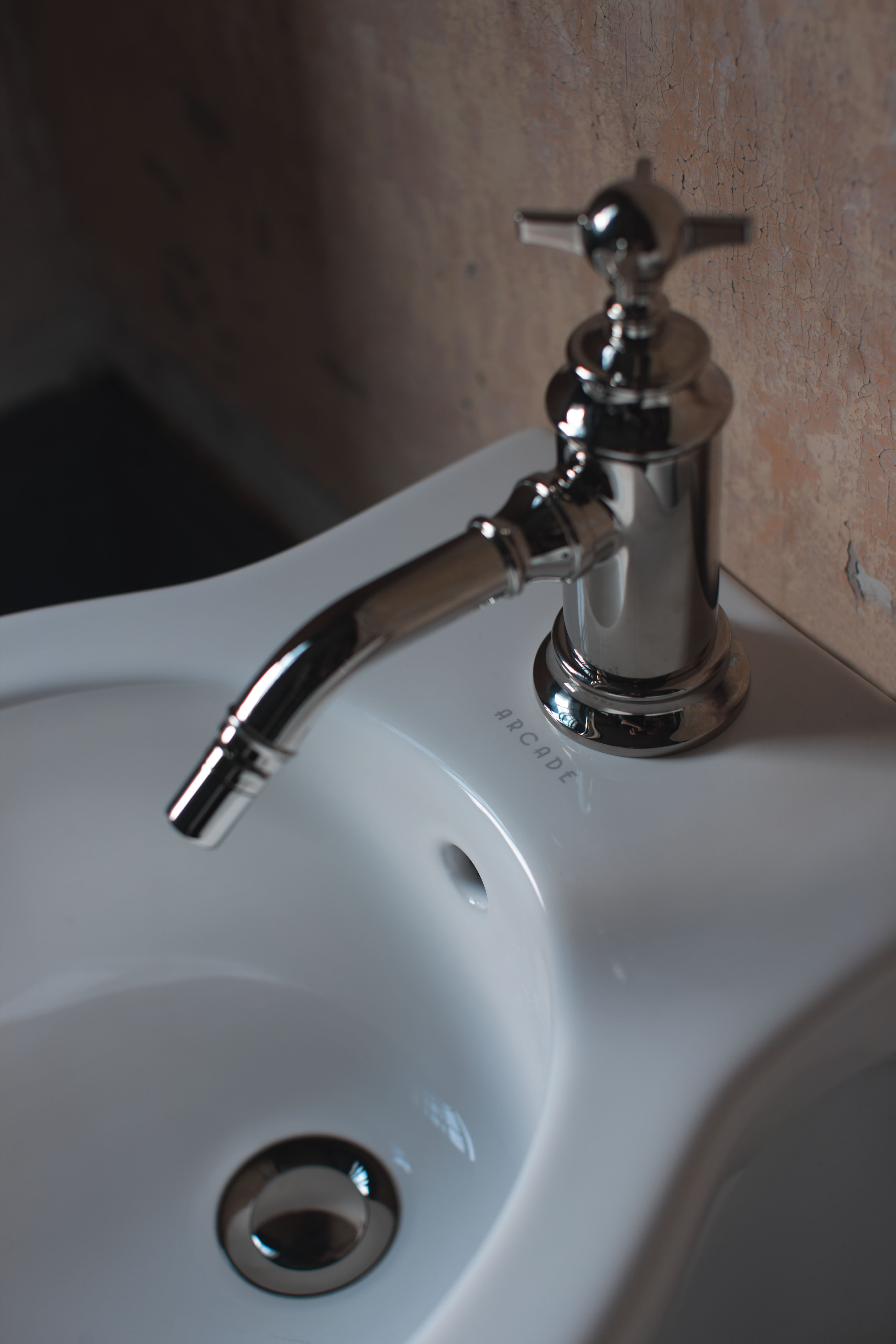

Arcade single-lever bidet mixer with pop up waste
Product Options
Finish options
Handle options
Chrome
|
Nickel
|
|
crosshead handle
|
brass lever
|
white ceramic lever
|
gloss black ceramic lever
|
As Shown

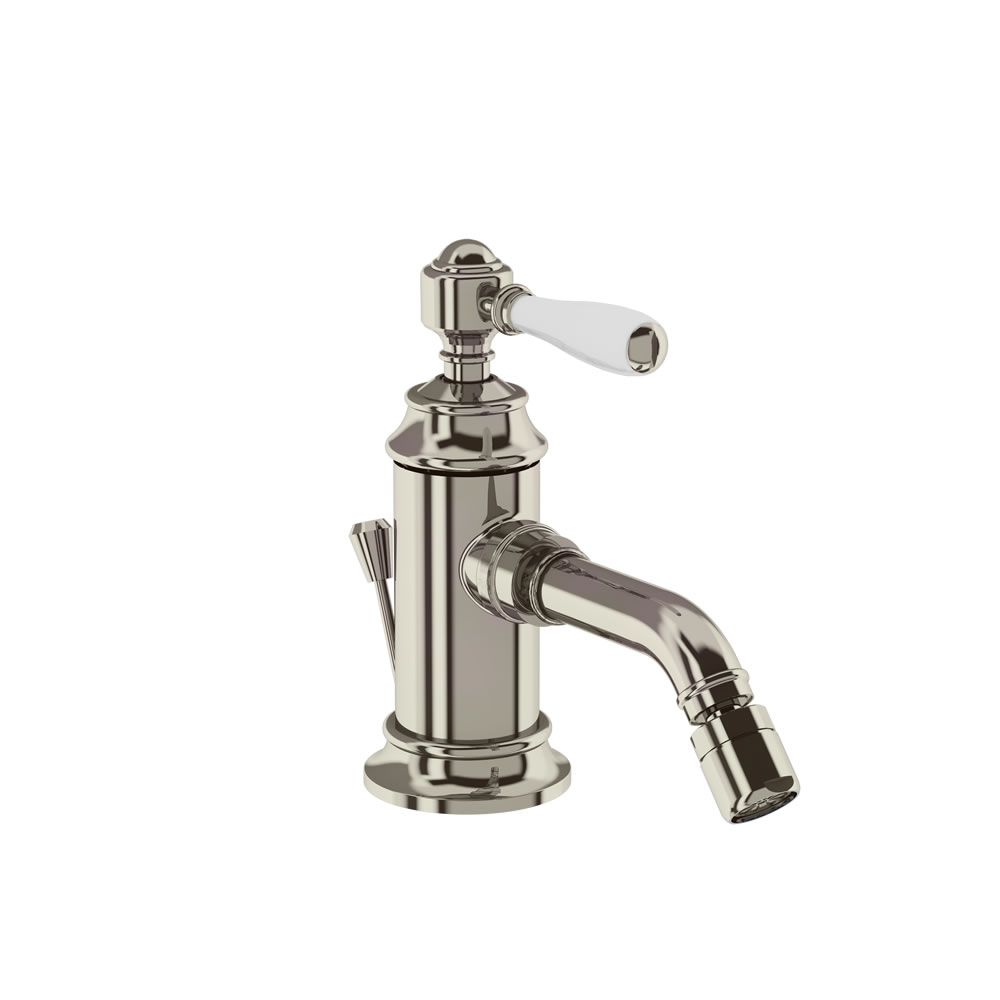

| ARC 2013 NKL Arcade single lever bidet mixer with pop up waste - nickel |
| ARCHLN Crosshead handle (pair) for ARCADE 2012,2013,2018,2019- nickel, 64*64mm |
| ACL13N - Combined product code |
Nett Weight
| ARC 2013 NKL - tap - 1.6kg |
| ARCHLN - handle - 0.27kg |
Gross Weight Including Packaging
| ARC 2013 NKL - tap - 1.9kg |
| ARCHLN - handle - 0.33kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Flow Straighter | 3.31 | 7.12 | 11.17 | 16.01 | 20.16 | 23.65 | 26.36 |
| Aerator | 2.97 | 5.14 | 7.92 | 11.33 | 14.33 | 16.81 | 18.52 |
| ARCSP153 NKL | nickel finish aerator nozzle for ARC 2013 NKL, ARC13 |
| ARCSP154 NKL | nickel finish flow straightener nozzle for ARC 2013 NKL, ARC13 |
| ARCSP168 NKL | nickel finish Pop up waste for ARC 2013 NKL, ARC13 |
| SP1491 | screw set (1pc) for Arcade tap handle(except ARC12, ARC12 CHR, ARC35, ARC35 CHR) |
Downloads
- Instructions - PDF - ARC 2013 NKL (English)
- Instructions - PDF - ARCHLN (English)
- Instructions - PDF - ARCHLN (French)
- Instructions - PDF - ARC 2013 NKL (French)
-
2D CAD-File - DWG -
ACL13N
(ARC 2013_ARCHL_CHR_NKL.dwg)
-
2D Drawing - PDF -
ACL13N
(ARC 2013_ARCHL_CHR_NKL.pdf)
2D Drawing - PDF - ARC13 NKL
-
3D RFA BIMM Objects - File - RFA
-
ACL13N
(ACL13C.rfa)
- 3D IGS - File - IGS - ARCHLN (ARCHLC.igs)
- 3D STP - File - STP - ARC 2013 NKL (ARC2013.stp)
