Arcade single-lever bath shower filler-floor mounted inc. floor mounting kit
Product Options
finish options
handle options
chrome
|
nickel
|
brass lever
|
gloss black ceramic lever
|
white ceramic lever
|
As Shown
| ARC 2020 NKL Arcade single lever bath filler - floor mounted inc floor mounting kit - nickel |
| AWL20N - Combined product code |
Material
| ARC 2020 NKL - tap - Brass |
Nett Weight
| ARC 2020 NKL - tap - 7.1kg |
Gross Weight Including Packaging
| ARC 2020 NKL - tap - 9kg |
Packed Dimension
| ARC 2020 NKL - 1085 x 360 x 210 = 0.082 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 817:2008 |
|
BS EN 200:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Flow Straighter | 4.23 | 7.63 | 11.8 | 18.05 | 22.5 | 26.08 | 29.29 |
| Aerator | 2.86 | 5.32 | 8.13 | 12.15 | 14.75 | 17.2 | 19.21 |
| Handset | 2.58 | 4.08 | 5.87 | 9.3 | 11.87 | 14.14 | 16.04 |
| SP1463 | diverter for ARC 2020, ARC20 |
| SP1681 | handset holder (including fixing screw) in nickel for Arcade bath tap ARC 2020 NKL |
| SP1700 NKL | nickel finish arcade white ceramic tap lever for ARC 2020 NKL, ARC20 |
| ARCSP117 NKL | nickel finish base cover for ARC20, ARC2020 NKL |
| SP1595 | o ring (1 piece) of floor standing base for product ARC 2020 NKL, ARC 2020 CHR |
Downloads
-

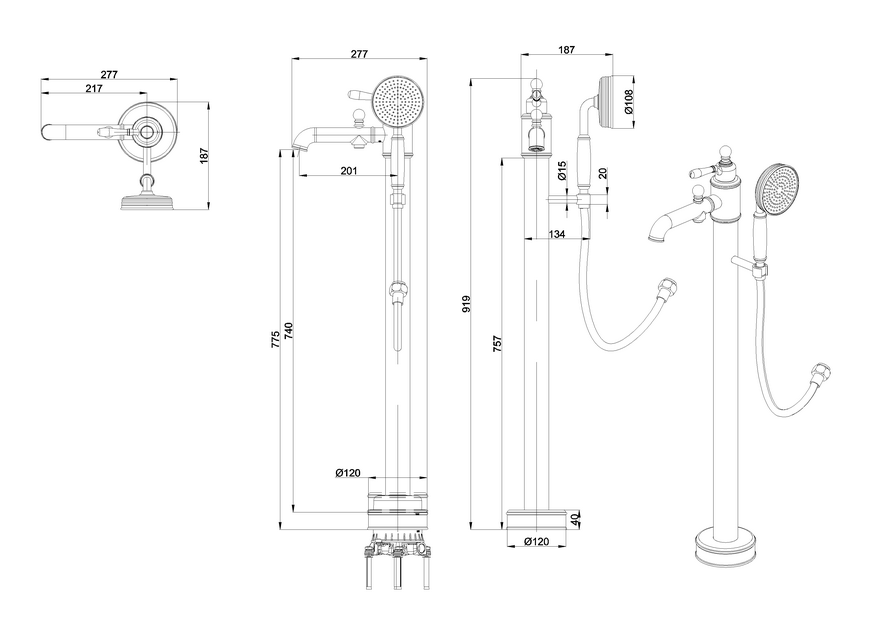

2D CAD-File - DWG -
AWL20N
(ARC 2020 NKL _LD.dwg)
-
2D Drawing - PDF -
AWL20N
(ARC 2020 NKL _LD.pdf)
2D Drawing - PDF - ARC 2020 NKL
-
3D IGS - File - IGS
-
AWL20N
(ARC2020_2.igs)
-
3D RFA BIMM Objects - File - RFA
-
AWL20N
(ARC2020.rfa)
