P trap connection pipe

asaq2.Model.Web_product_new?.web_name

Product Options

Finish Options

P-trap connection pipe

Chrome

P-trap connection pipe

Gold

P Trap' connection pipe -nickel

Nickel

P Trap' Connection Pipe Brushed Nickel

Brushed Nickel

Alternate Text

As Shown

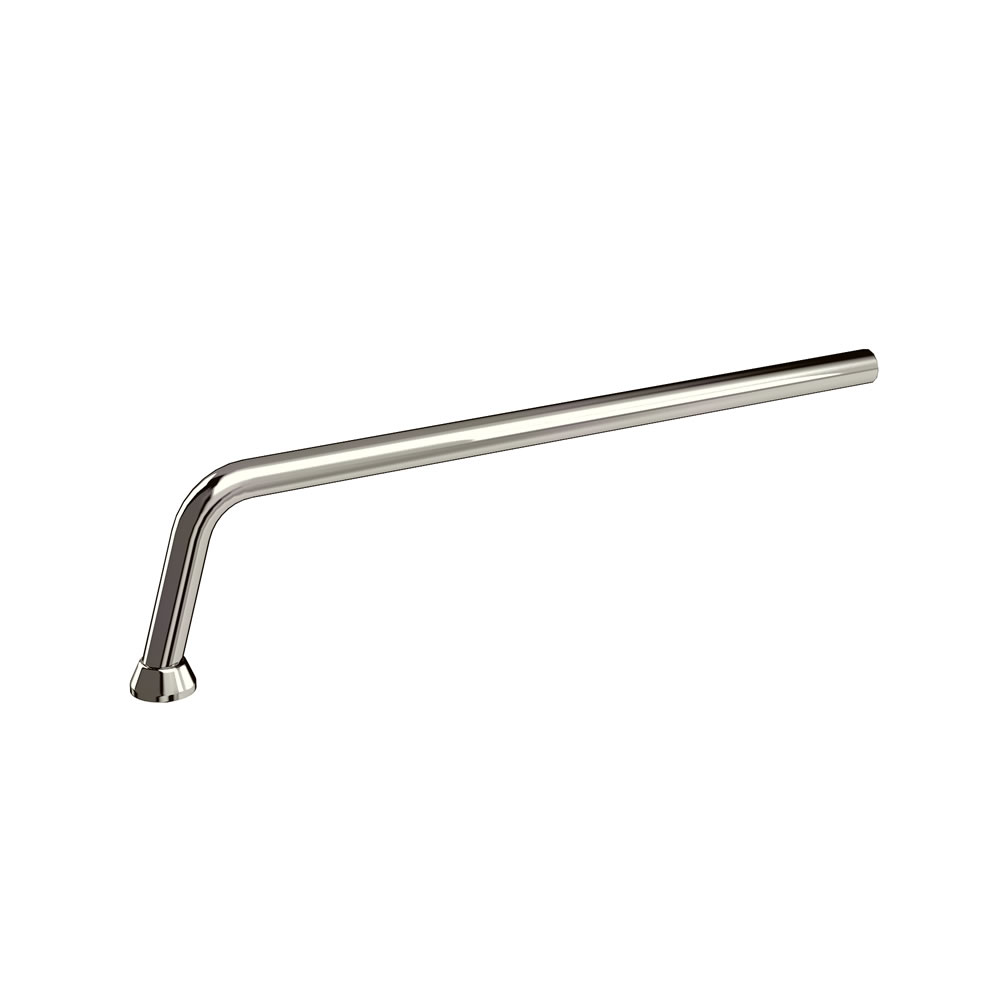

W21 NKL P Trap' connection pipe -nickel

Colour

W21 NKL - waste - Polished Nickel

Material

W21 NKL - waste - Brass

Size

W21 NKL - 891 x 78 x 220mm

Nett Weight

W21 NKL - waste - 1.13kg

Gross Weight Including Packaging

W21 NKL - waste - 1.43kg

Packed Dimension

W21 NKL - 900 x 255 x 50 = 0.0115 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

Downloads

Instructions - PDF - W21 NKL (English)
Instructions - PDF - W21 NKL (French)

2D CAD-File - DWG - W21 NKL (ARCW21 NKL_LD.dwg)
2D Drawing - PDF - W21 NKL (ARCW21 NKL_LD.pdf) 2D Drawing - PDF - W21 NKL

3D DWG - File - DWG - W21 NKL (W21.dwg)
3D DXF - File - DXF - W21 NKL (W21.dxf)
3D IGS - File - IGS - W21 NKL (W21.igs)
3D RFA BIMM Objects - File - RFA - W21 NKL (W21.rfa)

Product image 1 - jpg
Product image 2 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
