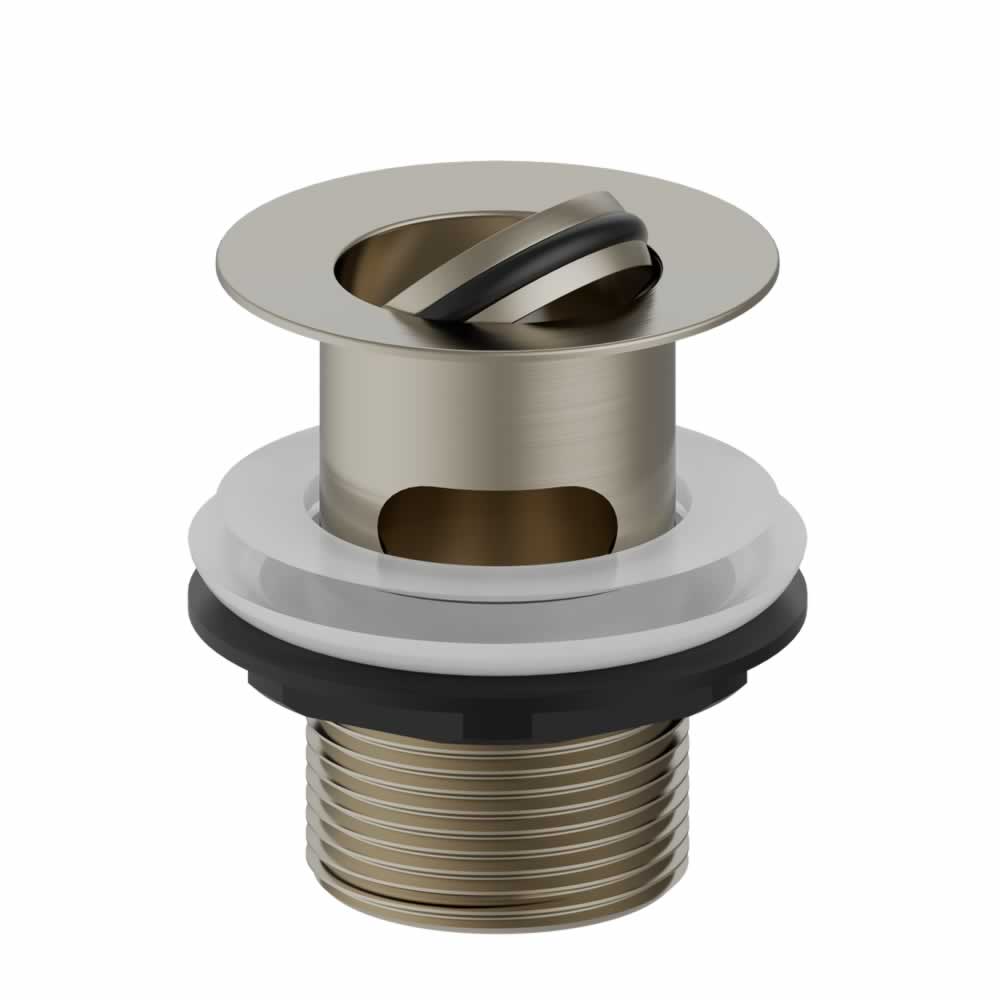

Flip top basin waste - slotted
Product Options
Finish Options
|
Chrome
|

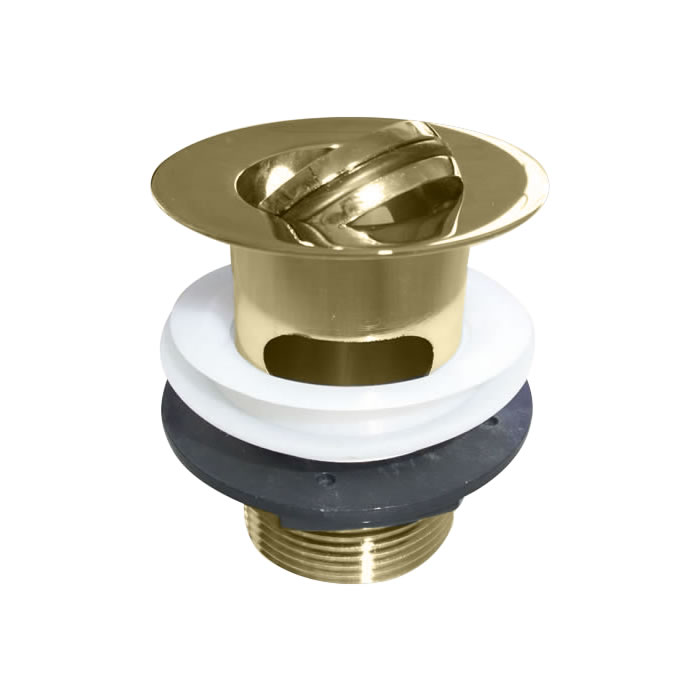

Gold
|
Nickel
|
Brushed Nickel
|
As Shown
| W18 Flip top basin waste (slotted) |
Material
| W18 - waste - Brass |
Size
| W18 - 61 x 61 x 71mm |
Nett Weight
| W18 - waste - 0.25kg |
Gross Weight Including Packaging
| W18 - waste - 0.28kg |
Packed Dimension
| W18 - 95 x 70 x 70 = 0.0005 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
For basins with an overflow |
| SP1189 | black fixing nut for all finishes products of T13, T13-QT, T16, T16-QT, W11, W22, W18, W1 |

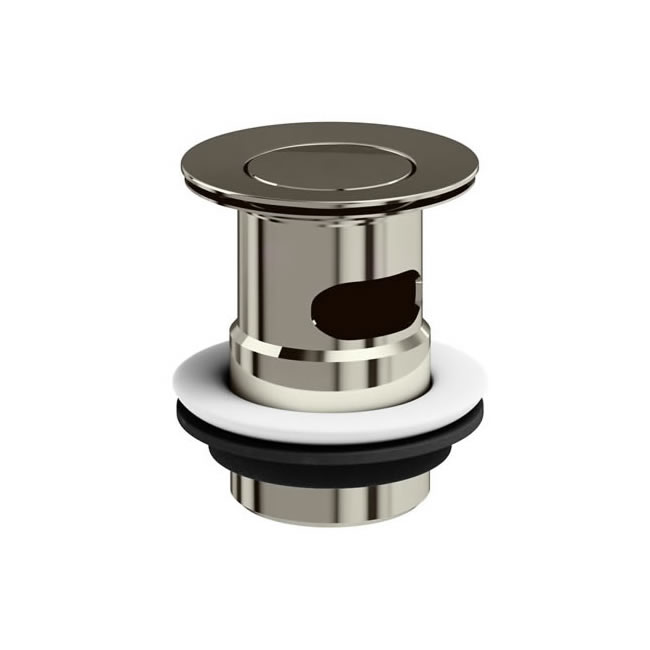

| SP951 | o-ring on the flip top cover fo all finishes products of W18, ARCW18 |
Downloads
-
2D CAD-File - DWG -
W18
(W18_LD.dwg)
-

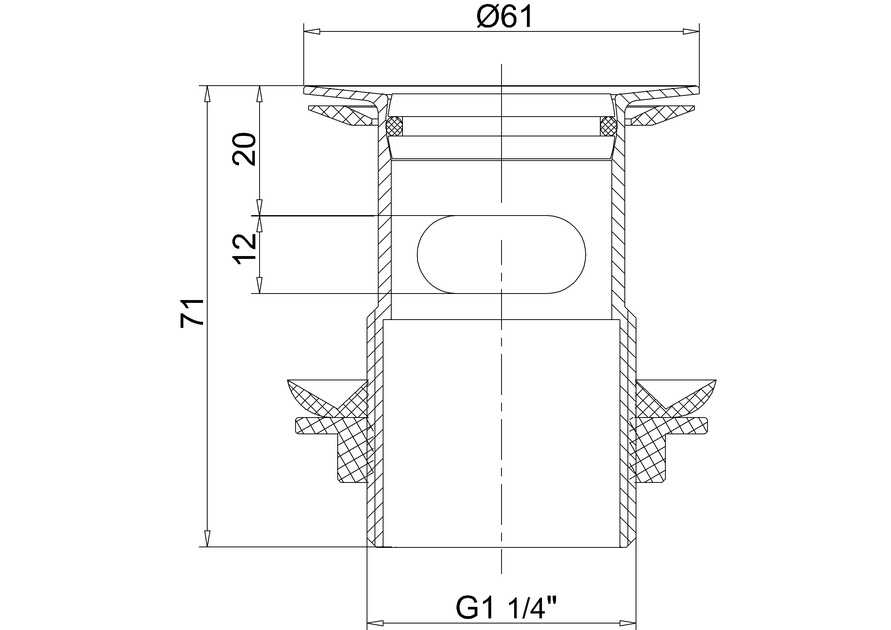

2D Drawing - PDF -
W18
(W18_LD.pdf)
2D Drawing - PDF - W18
-
3D DWG - File - DWG
-
W18
(W18.dwg)
-
3D DXF - File - DXF
-
W18
(W18.dxf)
-
3D IGS - File - IGS
-
W18
(W18.igs)
