Edwardian Rectangular
Product Options
tap hole options
Finish Options
options
|
1 tap hole
|
2 tap holes
|
|
white
|
|
wall hung
|
with wash stand
|
with towel rail
|
with brushed nickel wash stand
|
As Shown
| B8R 510mm Edwardian cloakroom basin 1TH (right) |
Colour
| B8R - basin - Gloss White |
Material
| B8R - basin - Vitreous China |
Nett Weight
| B8R - basin - 10.05kg |
Gross Weight Including Packaging
| B8R - basin - 11.9kg |
Packed Dimension
| B8R - 547 x 337 x 280 = 0.0516 m3 |
Tap Hole Options
| Available with one (B8L or B8R) or two (B8) tap holes |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 31:2011 |
|
BS EN 14688:2015 |
Additional Information
|
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap. |
Compatible Products
| W1 - Basin plug and chain (option for two tap hole basin only) |
| W11 - "Click-clack" Basin waste slotted |
| W18 - Flip-top basin waste slotted |
| T6 CHR - Cloakroom towel rail chrome |
| SP86 | wall brackets for cloakroom basins |
Downloads
-
2D CAD-File - DWG -
B8R
(B8R_LD.DWG)
-

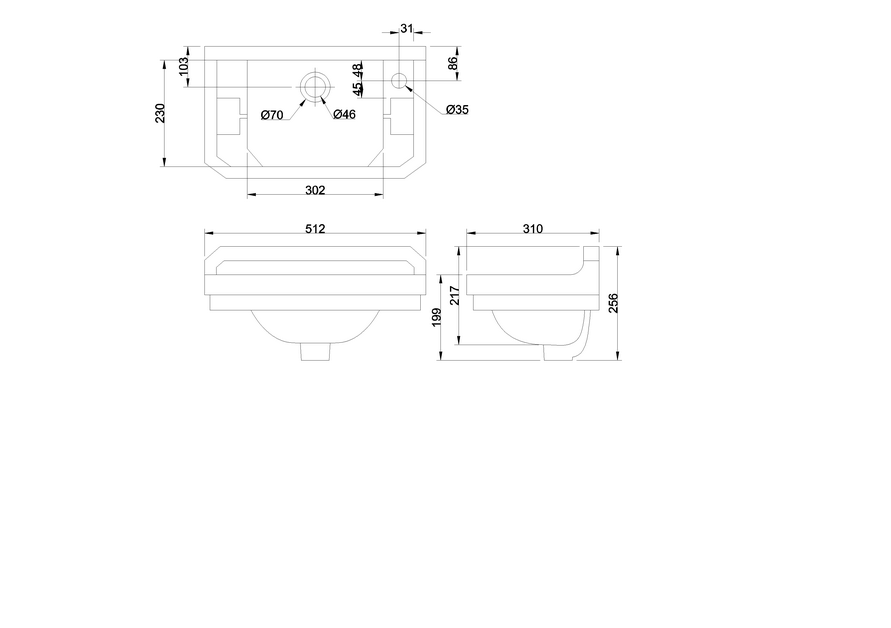

2D Drawing - PDF -
B8R
(B8R_LD.pdf)
2D Drawing - PDF - B8R
-
3D DWG - File - DWG
-
B8R
(B8_edwardian51cloakroombasin.dwg)
-
3D DXF - File - DXF
-
B8R
(B8_edwardian51cloakroombasin.dxf)
-
3D IGS - File - IGS
-
B8R
(B8_edwardian51cloakroombasin.igs)
-
3D RFA BIMM Objects - File - RFA
-
B8R
(B8_edwardian51cloakroombasin.rfa)
