Trent Thermostatic dual function brass valve
Product Options
shower head options
Indicies & lever finish
6 inch
|
9 inch
|
12 inch
|
|
White
|
Medici
|
Black
|
As Shown
| TF3S Trent Thermostatic Two Outlet Concealed Shower Valve , Fixed Shower Arm, Handset & Holder with Hose |
| V60 12 inch shower rose |
| TF3S+V60 - Combined product code |
Nett Weight
| TF3S - valve - 4.51kg |
| V60 - shower rose - 1.67kg |
Gross Weight Including Packaging
| TF3S - valve - 6.13kg |
| V60 - shower rose - 2.17kg |
Packed Dimension
| TF3S - 710 x 395 x 130 = 0.0365 m3 |
| V60 - 356 x 342 x 102 = 0.0124 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Traditional brass faceplate, Claremont handle, with ceramic levers |
|
Wall outlet, and 1500mm shower hose |
|
Adjustable wall bracket, and handset with ceramic handle |
|
390mm adjustable fixed shower arm |
|

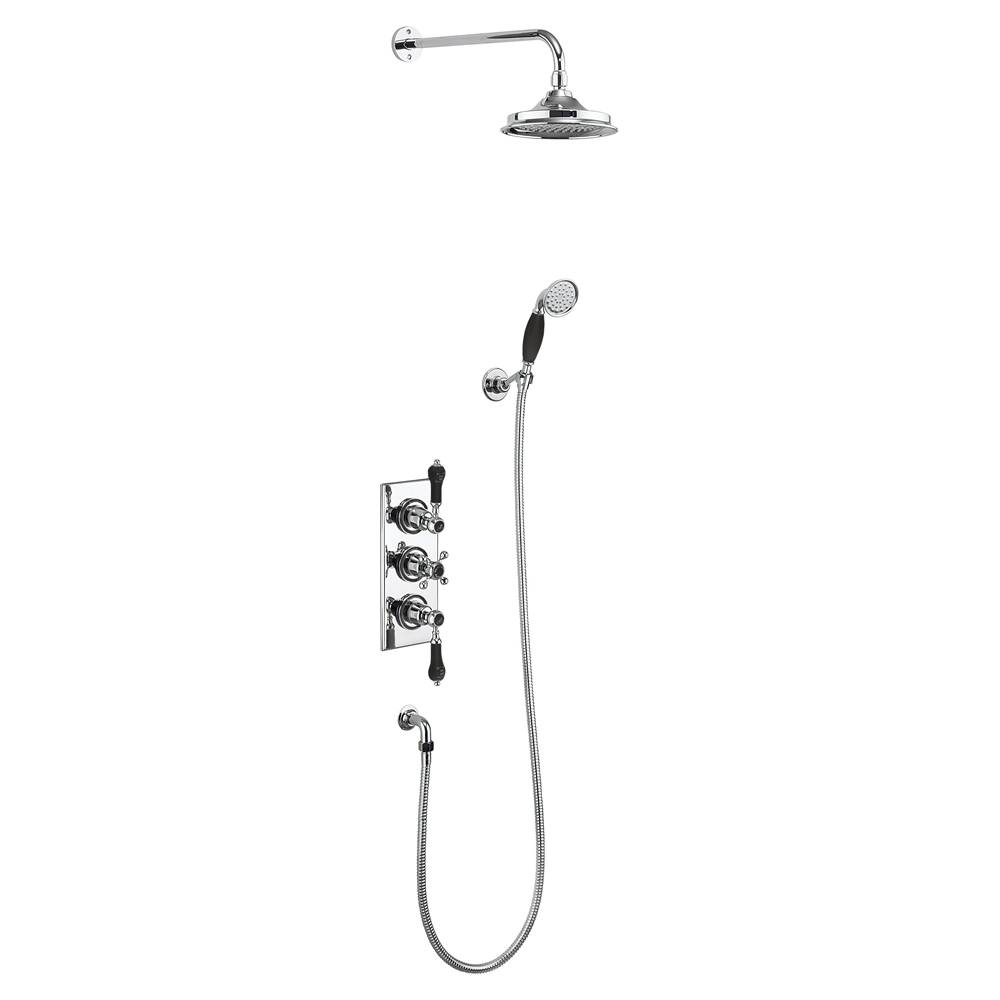

Image shown is with 6" Airburst shower head. (as shown on image) |
|
The shower head has anti-limescale silicon nipples. |
|
Large bore shower hose (11mm) |
|
Hot & cold inlet 3/4 female thread |
Compatible Products
| V33 - Slide rail |
| V2 - Anglesey Valve Handle (single) |
| V3 - Birkenhead Valve Handle (single) |
| V23 - Soap basket |
| V24 - Cradle |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 4.78 | 6.74 | 8.7 | 13.78 | 16.88 | n/a | n/a |
| 12 inch rose & handset | 5.6 | 6.18 | 10.85 | 16.37 | 20.35 | n/a | n/a |
| 6 inch rose | 4.04 | 4.14 | 7.45 | 11.24 | 13.5 | n/a | n/a |
| 6 inch rose & handset | 5.21 | 6.07 | 10.11 | 16.1 | 19.42 | n/a | n/a |
| 9 inch rose | 3.61 | 4.07 | 5.12 | 6.91 | 8.96 | n/a | n/a |
| 9 inch rose & handset | 4.91 | 6.04 | 9.7 | 15.1 | 19.03 | n/a | n/a |
| Handset | 3.62 | 5.14 | 8.29 | 12.12 | 15.17 | n/a | n/a |
| ACSH1 | 1.5m Shower hose with ACS approval for T8, T8-QT, TF2S, TF3S, AF3S, T2DB |
| SP1224 | allen key for TF3S |
| SP593 | bottom lever (including thread) for two outlets valves (on, off indices) |
| V29 | burlington Ceramic telephone handset |
| V26 | burlington Shower hose 1500mm |
| SP723 | cartridge cap for thermo cartridge & diverter cartridge for product TF1H, TF1H BLA, TF1S, TF1S BLA, TF2S, TF2S BLA, TF3S, TF3S BLA, VF1S, VF3S - Chrome finish |
| SP163 | ceramic B indices with Chrome for V34 and V36 |
| SP1209 | ceramic handle for Burlington telephone handset |
| V10_2 | ceramic levers for Avon & Clyde dual control valves (pair) |
| SP52 | ceramic part of lever for all finishes products of Burlington showering products (plain version, without any texts) |
| SP614 | ceramic ring for Trent, Severn, Spey |
| SP700 | check valve of all finishes products of TF2S, V34, V36, TF1S, TF3S, SF1S, SF3S |
| SP873 | chrome bevel and threaded part of Burlington & Arcade valve handles |
| SP164 | chrome linking splines and chrome for V34 & V36 |
| V1 | claremont valve handle 1 (single) |
| SP596 | claremont valve handle for all valves, (except Stour) |
| SP610 | face plate for TF3S |
| SP1692 | fixing screw sets (including flat washer and spring washer) for all finishes products of Avon valve, Trent valve, Severn valve |
| SP599 | grub screw (M4x4) |
| SP315 | hent F2 flow control cartridge |
| SP313 | hent F3 flow control cartridge |
| SP842 | inlet filter for all finishes products of V50, V51, V52, TF1S, TF1H, TF2S, TF3S, VF1S, VF3S, ARC64 |
| SP751 | lever base for AF1S, ARC74 CHR, TF3S, VF3S, TF3S BLA, ARCV25 CHR, SF3S, AF3S, AF3S BLA, TF2S, TF1S, VF1S, TF1H, ARC64 CHR, ARC73 CHR, TF1S BLA, TF1H BLA, TF2S BLA, SF1S |
| SP726 | metal block for Trent, Severn, Eden, Spey shower valves |
| SP1499 | new Cartridge cap & grub screw for ON-OFF cartridge fo product TF1H, TF1H BLA, TF1S, TF1S BLA, TF3S, TF3S BLA, VF1S, VF3S - Chrome finish |
| V30 | outlet elbow 1, 2 |
| SP959 | retaining nut for all finishes products of TF1S, TF1H, VF1S, SF1S, TF3S, VF3S, SF3S, ARC73, ARC64 |
| SP1477 | retaining ring for all finishes products of TF3S, TF2S, TF1S, TF1H, VF1S, VF3S, SF1S, SF3S |
| SP1479 | retaining sleeve for TF1S, V52, TF3S, VF3S, TF3S BLA, SF3S, V50, VF1S, TF1H, TF1S BLA, TF1H BLA, SF1S |
| SP815 | retaining sleeve of thermostatic cartridge for product V50, V51, V52, TF1S, TF1H, TF2S, TF3C, VF1S, VF3S, SF1S, SF3S, ARC64 CHR, ARC73 CHR |
| SP1240 | screw for TF3S |
| V18 | shower hook (for wall mounting of telephone shower head) |
| SP592 | top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices) |
| SP33 | V36 bottom On, Off Cartridge 3, 4 |
| SP314 | VQT1 temperature control cartridge |
Downloads
- Instructions - PDF - TF3S (English)
- Instructions - PDF - V60 (English)
- Instructions - PDF - TF3S (French)
-
2D CAD-File - DWG -
TF3S+V60
(TF3S-V16_LD.dwg)
-
2D Drawing - PDF -
TF3S+V60
(TF3S-V16_LD.pdf)
2D Drawing - PDF - TF3S-V60
-
3D RFA BIMM Objects - File - RFA
-
TF3S+V60
(TF3S-V60.rfa)
- 3D DWG - File - DWG - TF3S (TF3S.dwg)
- 3D DXF - File - DXF - TF3S (TF3S.dxf)
- 3D IGS - File - IGS - TF3S (TF3S.igs)
- 3D DWG - File - DWG - V60 (V60_12_showerhead.dwg)
- 3D DXF - File - DXF - V60 (V60_12_showerhead.dxf)
- 3D IGS - File - IGS - V60 (V60_12_showerhead.igs)
- 3D RFA BIMM Objects - File - RFA BIMM Objects - TF3S (TF3S.rfa)
