Stour Exposed Thermostatic single function brass valve
Product Options
shower head options
6 inch
|
9 inch
|
12 inch
|
As Shown
| BF1S Stour Thermostatic Exposed Shower Valve Single Outlet with Fixed Shower Arm |
| V17 9 inch shower rose |
| BF1S+V17 - Combined product code |
Nett Weight
| BF1S - valve - 6.8kg |
| V17 - shower rose - 0.56kg |
Gross Weight Including Packaging
| BF1S - valve - 7.32kg |
| V17 - shower rose - 0.87kg |
Packed Dimension
| BF1S - 530 x 350 x 200 = 0.0371 m3 |
| V17 - 260 x 240 x 100 = 0.0062 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Traditional brass body, ceramic handle, with ceramic levers |
|
28mm diameter, 450mm adjustable fixed shower arm |
|
Image shown is with 6" Airburst shower head. (as shown on image) |
|
The shower head has anti-limescale silicon nipples. |
|
Hot & cold inlet ∅22mm |
Compatible Products
| V2 - Anglesey Valve Handle (single) |
| V3 - Birkenhead Valve Handle (single) |
| V23 - Soap basket |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| 12 inch rose | 4.23 | 7.62 | 10.27 | 15.7 | 19.1 | n/a | n/a |
| 6 inch rose | 4.05 | 6.39 | 8.27 | 11.55 | 14.46 | n/a | n/a |
| 9 inch rose | 3.64 | 4.15 | 7 | 10.46 | 13.04 | n/a | n/a |
| SP375 | adaptor (pair) G3, 4 male thread to 22mm pipe |
| SP720 | adaptor(pair) G 1, 2 male thread to 22mm |
| SP424 | ball head screw for V4, TD4, TD2, TD3, BF1S, BF2S, BF3S |
| V10-1 | ceramic lever for shower valve (single) |
| SP108 | ceramic ring for all finishes products of Burlington exposed valves AF1S, AF3S, BF1S, BF2S, BF3S & bath wastes W2, W15, W3, W4 |
| SP700 | check valve of all finishes products of TF2S, V34, V36, TF1S, TF3S, SF1S, SF3S |
| V1 | claremont valve handle 1 (single) |
| SP702 | cover plate for V4, SF1S, SF3S, BF1S, BF2S, BF3S |
| SP554 | fixing nut and compression ring of inlet elbow for product SF1S, SF3S, BF1S, BF3S, BF2S |
| SP1118 | flow control, decorative head and screw for BF1S |
| SP1248 | gear sleeve for stop valve for AF1S, ARC74 CHR, AF3S, AF3S BLA, BF1S |
| SP599 | grub screw (M4x4) |
| SP604 | grub screw for BF1S, BF2S, BF3S (M5x8) |
| SP37 | hent F5 flow control cartridge |
| SP913 | metal block of product BF1S, BF2S, BF3S |
| SP814 | outlet elbow of product BF1S |
| SP1015A | pair of hot and cold inlet elbows for product BF1S, BF2S, BF3S |
| SP1385 | retaining nut for all finishes products of BF3S, AF1S, ARC74, ARCV25, V25, AF3S, BF2S, BF1S |
| SP834 | spare parts of outlet for product BF1S |
| SP1368 | stop ring for BF2S, BF1S, BF3S |
| SP1875 | stour retaining ring for BF1S, BF3S |
| SP719 | straight adapters of BF1S, BF2S, BF3S, SF1S, SF3S |
| SP1128 | the screws and expansion tubes for Trent, Avon, Eden valves (6 sets) |
| SP594 | thermostatic lever for Stour valves (including thread), hot, code indices |
| SP899 | top flow control of product BF1S, BF2S, BF3S |
| SP592 | top lever (including thread) for Spey, Stour, Trent, Avon, Severn (on, off indices) |
| SP32 | vernet T1 temperature control cartridge |
| SP597 | wall mounted straight showering arm for Stour |
Downloads
- Instructions - PDF - BF1S (English)
- Instructions - PDF - V17 (English)
- Instructions - PDF - BF1S (French)
-
2D CAD-File - DWG -

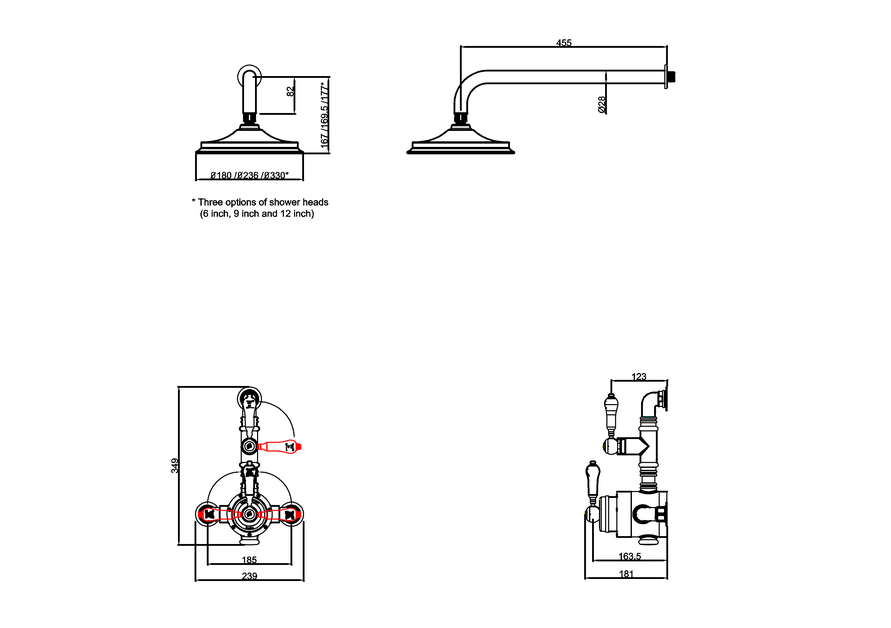

BF1S+V17
