Viride offset bath panel

asaq2.Model.Web_product_new?.web_name

Product Options

size options

Viride offset bath panel 1700 x 750mm

1700mm

Viride offset bath panel 1800 x 750mm

1800mm

Alternate Text

As Shown

R55 Viride offset bath panel

Colour

R55 - bath - Gloss White

Material

R55 - bath - Acrylic

Size

R55 - 750 x 1800 x 540mm

Nett Weight

R55 - bath - 8.2kg

Gross Weight Including Packaging

R55 - bath - 8.7kg

Packed Dimension

R55 - 1805 x 755 x 550 = 0.7495 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14516:2015+A1:2018

SP379

cleargreen bath panel spares

Downloads

Instructions - PDF - R55 (English)
Instructions - PDF - R55 (French)

2D CAD-File - DWG - R55 (R55_LD.dwg)

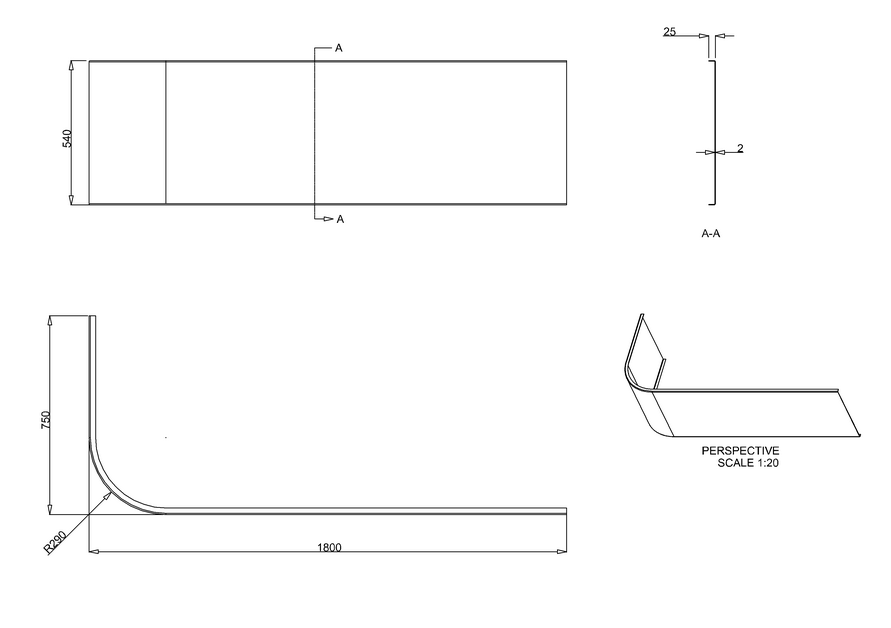

2D Drawing - PDF - R55 (R55_LD.pdf) 2D Drawing - PDF - R55

3D DWG - File - DWG - R55 (R55.dwg)
3D DXF - File - DXF - R55 (R55.dxf)
3D IGS - File - IGS - R55 (R55.igs)
3D RFA BIMM Objects - File - RFA - R55 (R55.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
