Front bath panel

asaq2.Model.Web_product_new?.web_name

Product Options

Front bath panel size options

Front bath panel 1500

1500mm

Front bath panel 1600

1600mm

Front bath panel 1700

1700mm

Front bath panel 1800

1800mm

Front bath panel 1900

1900mm

Alternate Text

As Shown

R50F Front bath panel 1900

Colour

R50F - bath panel - Gloss White

Material

R50F - bath panel - Acrylic

Size

R50F - 1900 x 540 x 40mm

Nett Weight

R50F - bath panel - 5.8kg

Gross Weight Including Packaging

R50F - bath panel - 6.3kg

Packed Dimension

R50F - 1905 x 550 x 45 = 0.0471 m3

Guarantee

2 year guarantee*
*Full terms & conditions here

Standards Information

BS EN 14516:2015+A1:2018

SP379

cleargreen bath panel spares

Downloads

Instructions - PDF - R50F (English)
Instructions - PDF - R50F (French)

2D CAD-File - DWG - R50F (R50F_LD.dwg)

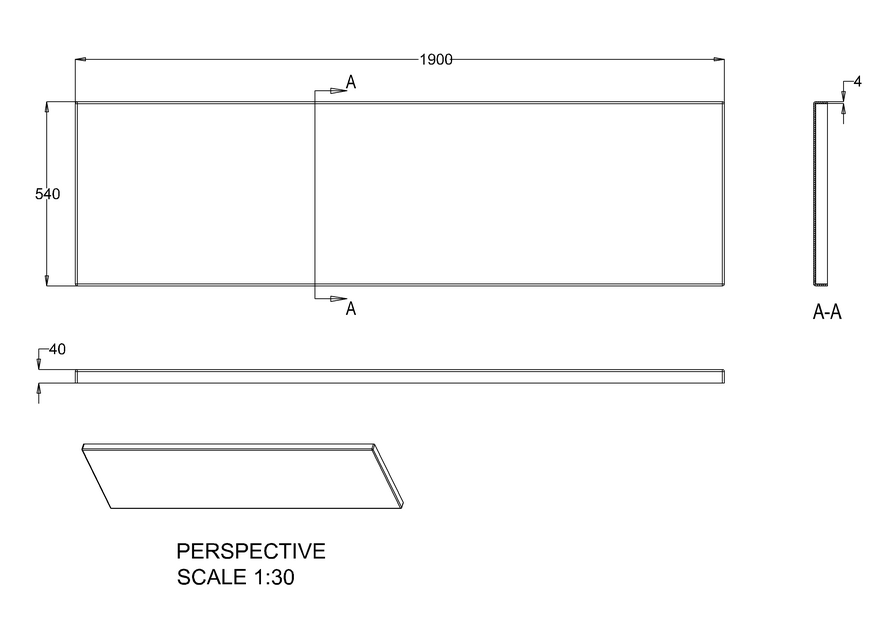

2D Drawing - PDF - R50F (R50F_LD.pdf) 2D Drawing - PDF - R50F

3D DWG - File - DWG - R50F (R50F.dwg)
3D DXF - File - DXF - R50F (R50F.dxf)
3D IGS - File - IGS - R50F (R50F.igs)
3D RFA BIMM Objects - File - RFA - R50F (R50F.rfa)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
