130 Freestanding Vanity Unit with Doors
asaq2.Model.Web_product_new?.web_name
Product Options
Finish Options
Freestanding 130 Vanity Unit with doors - Dark Olive and Minerva white worktop with two integrated white basins Dark Olive Freestanding 130 Vanity Unit with doors - Sand and Minerva white worktop with two integrated white basins Sand Freestanding 130 Vanity Unit with doors - Matt White and Minerva white worktop with two integrated white basins Matt White

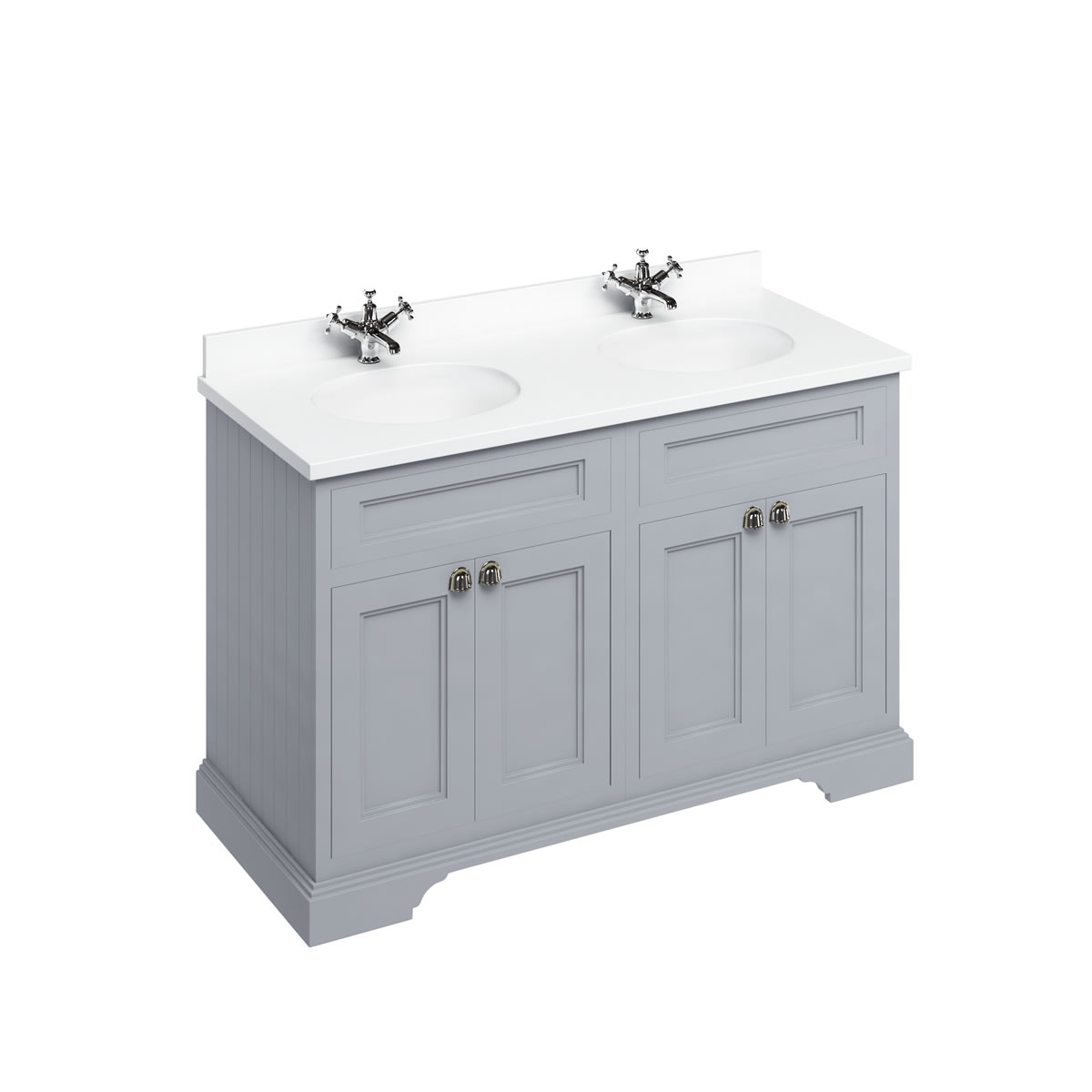

Freestanding 130 Vanity Unit with doors - Classic Grey and Minerva white worktop with two integrated white basins Classic Grey Freestanding 130 Vanity Unit with doors - Blue and Minerva white worktop with two integrated white basins Blue 1300 Freestanding Vanity Unit with Doors - Matt Green Matt Green
Worktop options
Freestanding 130 Vanity Unit with doors - Dark Olive and Minerva Carrara white worktop with two integrated white basins Minerva Carrara white worktop Freestanding 130 Vanity Unit with doors - Dark Olive and Minerva white worktop with two integrated white basins Minerva white worktop Freestanding 130 Vanity Unit with doors - Dark Olive and Minerva black granite worktop with two integrated white basins Minerva black granite worktop
Alternate Text
As Shown
BW12 Minerva white with double vanity bowl
FC9O 1300 Freestanding Vanity Unit with Doors
Colour
BW12 - worktop with intergrated basin - white
FC9O - base unit - Dark Olive
Material
BW12 - worktop with intergrated basin - minerva solid surface material
FC9O - base unit - Engineered Wood - MDF
Size
FC9O - 1296 x 548 x 820mm
Nett Weight
BW12 - worktop with intergrated basin - 41kg
FC9O - base unit - 60.5kg
Gross Weight Including Packaging
BW12 - worktop with intergrated basin - 44kg
FC9O - base unit - 72kg
Packed Dimension
BW12 - 1420 x 625 x 255 = 0.2263 m3
FC9O - 1384 x 660 x 1075 = 0.9819 m3
Tap Hole Options
Tap holes are drilled by the installer.
Guarantee
10 year guarantee*
*Full terms & conditions here
Standards Information
EN14749:2016
Additional Information
One adjustable glass shelf
A backsplash is supplied with the worktop but is optional as to whether you want to use it. This can be fit into place using silicon.
Minerva worktops are supplied with an integrated bowl with overflow, and no tap holes. Tap holes are drilled by the installer in the required position and configuration. A template is provided with the Minerva tops indicating tap hole positions and sizes.
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight.
Doors are soft closing
Chrome plated metal handles
Fully assembled
SPFF8DP_O flat door paenel for FF8O, FC9O, FC1O, FC2O, FC3O
SP1638 packaging for P130 plinth
P130O plinth for Freestanding 130 Vanity Unit - Dark Olive
SP1637 spare FC9 Carcass packaging box including inner honeycomb cardboards & plastic bag (no label)
SPFF8TF-O top fascia for FF8O, FC9O
Downloads
  • Instructions - PDF - FC9O (English)
  • Instructions - PDF - FC9O (French)
  • 3D DWG - File - DWG  -  FC9O_BW12 (90556.dwg)
  • 3D DXF - File - DXF  -  FC9O_BW12 (90556.dxf)
  • 3D IGS - File - IGS  -  FC9O_BW12 (90556.igs)
  • 3D RFA BIMM Objects - File - RFA  -  FC9O_BW12 (90556.rfa)
  • Product image 1 - jpg
* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
