65 Wall Hung Vanity Unit with drawers
Product Options
Colour options: furniture
Tap hole options
|
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
|
1 tap hole
|
2 tap holes
|
3 tap holes
|

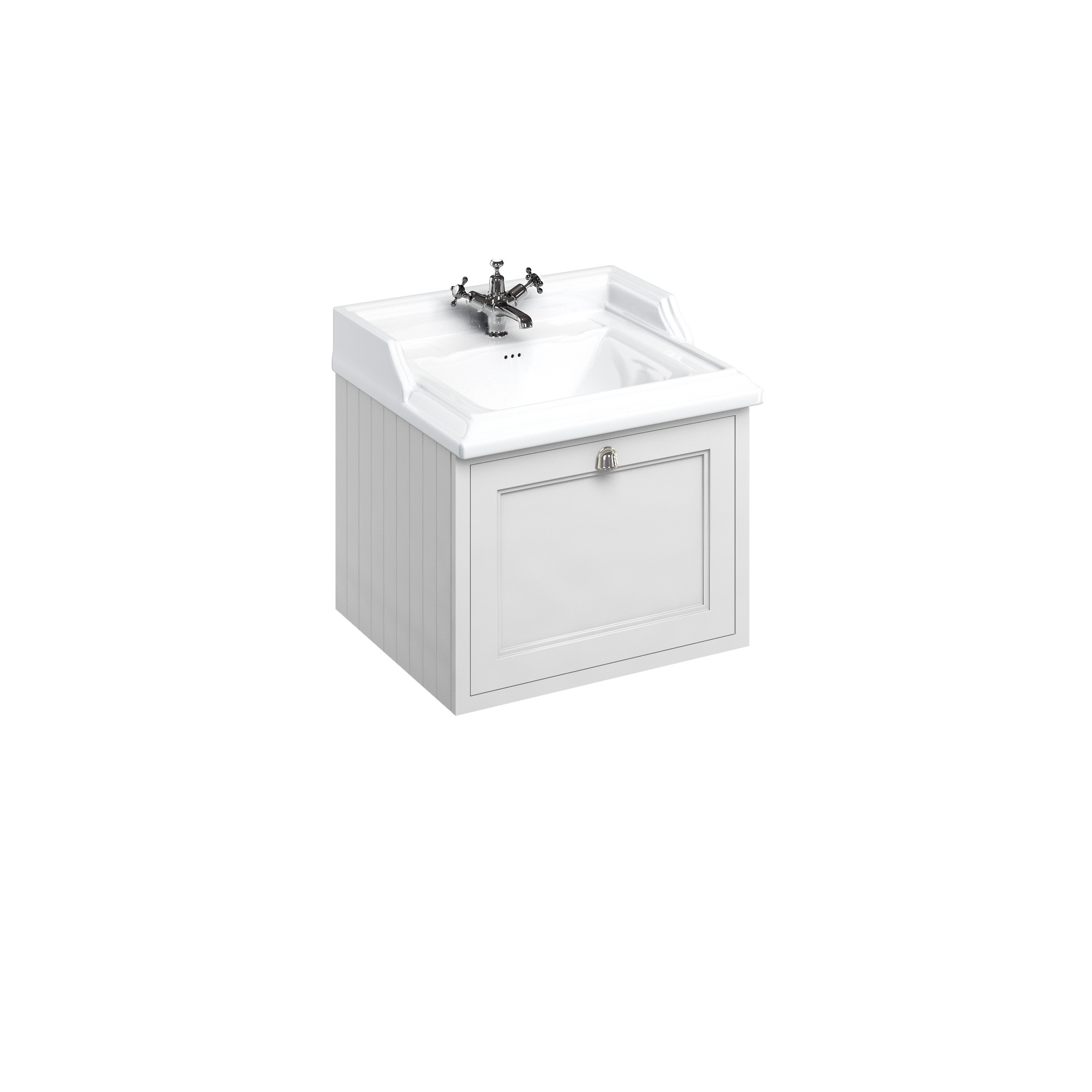

As Shown
| B151TH Classic 65cm basin one tap hole |
| FW1O 600 wall hung single drawer unit with end finished panel |
Nett Weight
| B151TH - basin - 19.05kg |
| FW1O - base unit - 21kg |
Gross Weight Including Packaging
| B151TH - basin - 22.9kg |
| FW1O - base unit - 25kg |
Packed Dimension
| B151TH - 670 x 597 x 315 = 0.126 m3 |
| FW1O - 690 x 590 x 540 = 0.2198 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
|
EN14749:2016 |
Additional Information
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Drawers are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
Downloads
-
2D CAD-File - DWG -
FW1O_B15 1TH
(FW1_B15 1TH.dwg)
-

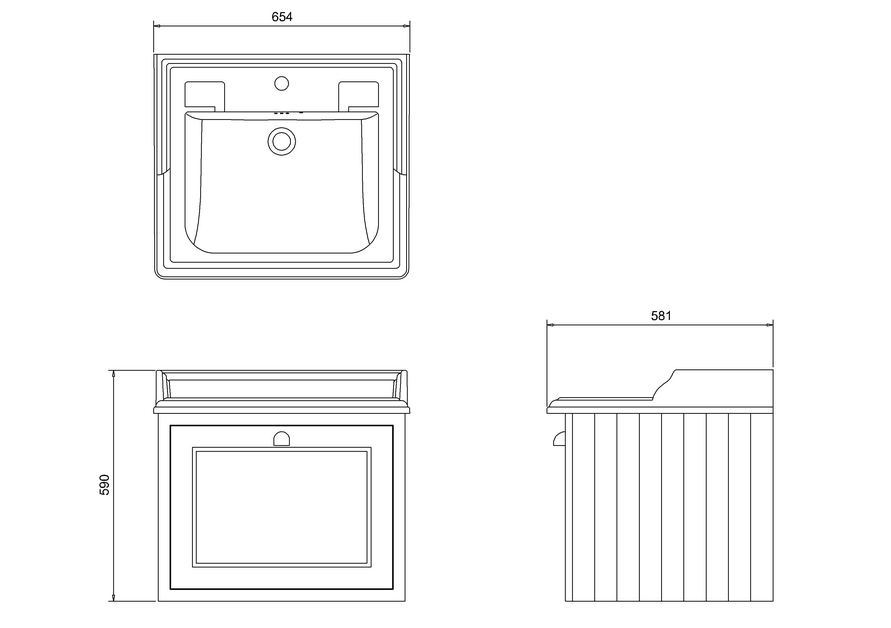

2D Drawing - PDF -
FW1O_B15 1TH
(FW1_B15 1TH.pdf)
2D Drawing - PDF - FW1O_B15 1TH
-
3D DWG - File - DWG
-
FW1O_B15 1TH
(90565.dwg)
-
3D DXF - File - DXF
-
FW1O_B15 1TH
(90565.dxf)
-
3D IGS - File - IGS
-
FW1O_B15 1TH
(90565.igs)
-
3D RFA BIMM Objects - File - RFA
-
FW1O_B15 1TH
(90565.rfa)
