134 Wall Hung Vanity Unit with Drawers
Product Options
Colour options: furniture
Worktop options
|
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
|
Minerva Carrara white worktop
|
Minerva white worktop
|
Minerva black granite worktop
|

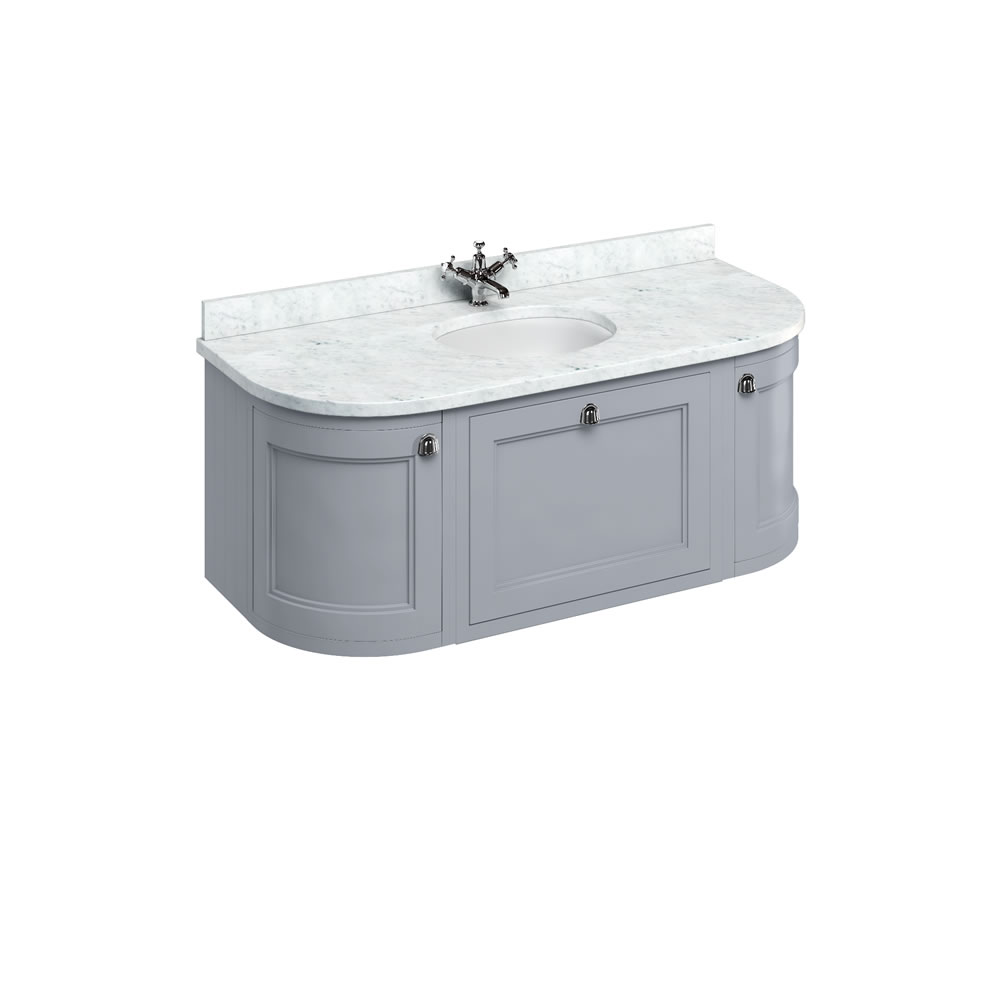

As Shown
| BC13 Minerva carrara white with vanity bowl |
| FW4O 1340 Curved Wall hung Vanity Unit |
Material
| BC13 - worktop with intergrated basin - minerva solid surface material |
| FW4O - base unit - Engineered Wood - MDF |
Gross Weight Including Packaging
| BC13 - worktop with intergrated basin - 43kg |
| FW4O - base unit - 55kg |
Packed Dimension
| BC13 - 1420 x 625 x 255 = 0.2263 m3 |
| FW4O - 1360 x 590 x 540 = 0.4333 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2005 |
Additional Information
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Doors are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
|
Minerva worktops are supplied with an integrated bowl with overflow, and no tap holes. Tap holes are drilled by the installer in the required position and configuration. A template is provided with the Minerva tops indicating tap hole positions and sizes. |
|
A backsplash is supplied with the worktop but is optional as to whether you want to use it. This can be fit into place using silicon. |
Downloads
-
2D CAD-File - DWG -
FW4O_BC13
(FW4_FT2B-B.dwg)
-
2D Drawing - PDF -
FW4O_BC13
(FW4_FT2B-B.pdf)
2D Drawing - PDF - FW4O_BC13
-
3D DWG - File - DWG
-
FW4O_BC13
(90568.dwg)
-
3D DXF - File - DXF
-
FW4O_BC13
(90568.dxf)
-
3D IGS - File - IGS
-
FW4O_BC13
(90568.igs)
-
3D RFA BIMM Objects - File - RFA
-
FW4O_BC13
(90568.rfa)
