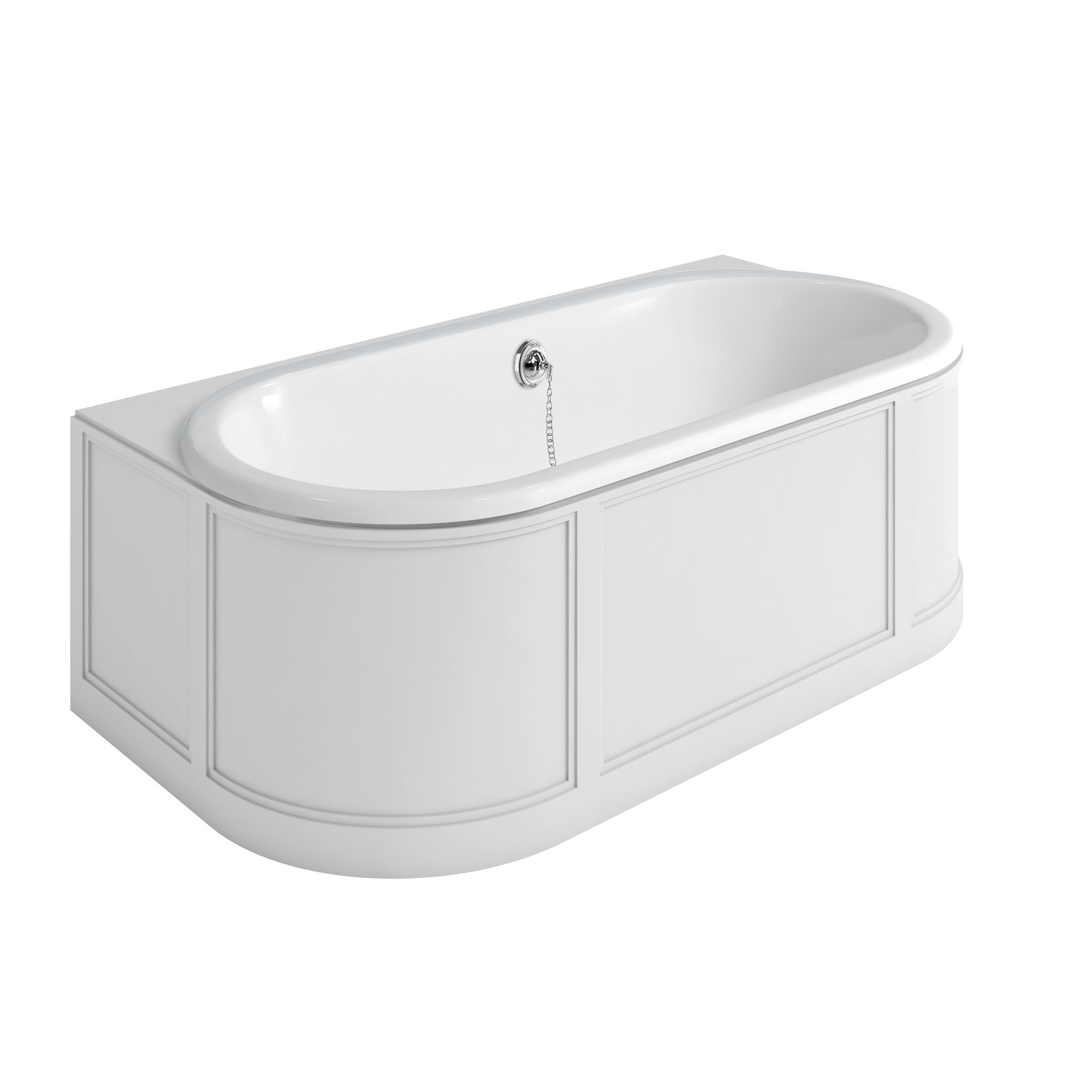

London back to wall bath with curved surround including overflow
Product Options
Colour options: furniture
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
As Shown
| E23W London Back To Wall Bath |
Colour
| E23W - bath - Matt White |
Material
| E23W - bath - PVC |
Nett Weight
| E23W - bath - 60kg |
Gross Weight Including Packaging
| E23W - bath - 87kg |
Packed Dimension
| E23W - 1900 x 1100 x 850 = 1.7765 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14516:2015+A1:2018 |
Additional Information
|
Supplied with no tap holes, but these can be drilled into the furniture surround where appropriate. |
|
Supplied with pre-fitted overflow & plug and chain waste |
|
The bath & surround are supplied as a complete unit |
Downloads
-
2D CAD-File - DWG -
E23W
(E23W_LD.dwg)
-

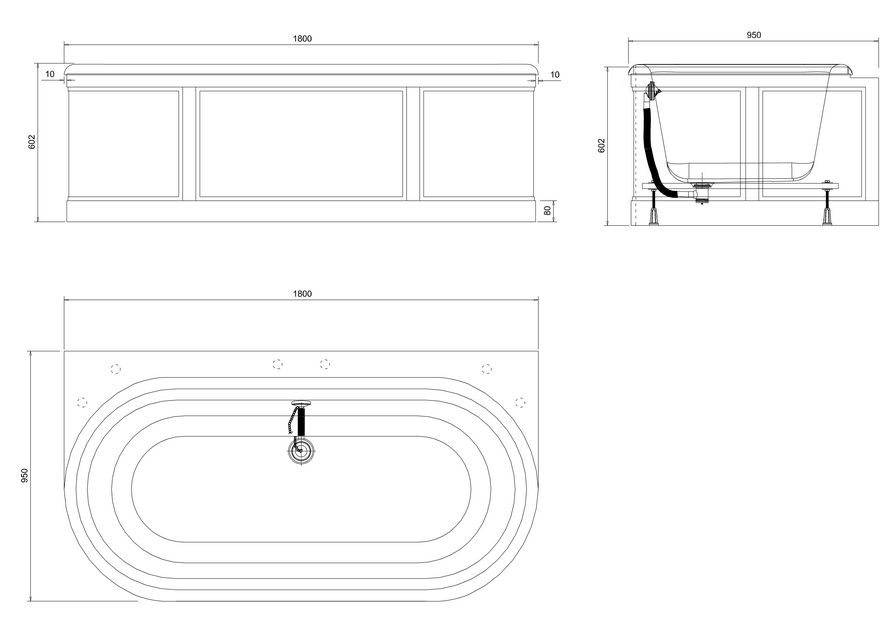

2D Drawing - PDF -
E23W
(E23W_LD.pdf)
2D Drawing - PDF - E23W
-
3D DWG - File - DWG
-
E23W
(RLG1807-BTW-PV_1.dwg)
-
3D DXF - File - DXF
-
E23W
(RLG1807-BTW-PV_1.dxf)
-
3D IGS - File - IGS
-
E23W
(RLG1807-BTW-PV_1.igs)
-
3D RFA BIMM Objects - File - RFA
-
E23W
(RLG1807-BTW-PV_1.rfa)
