65 Wall Hung Vanity Unit with drawers
Product Options
Colour options: furniture
Worktop options
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
|
Minerva Carrara white worktop
|

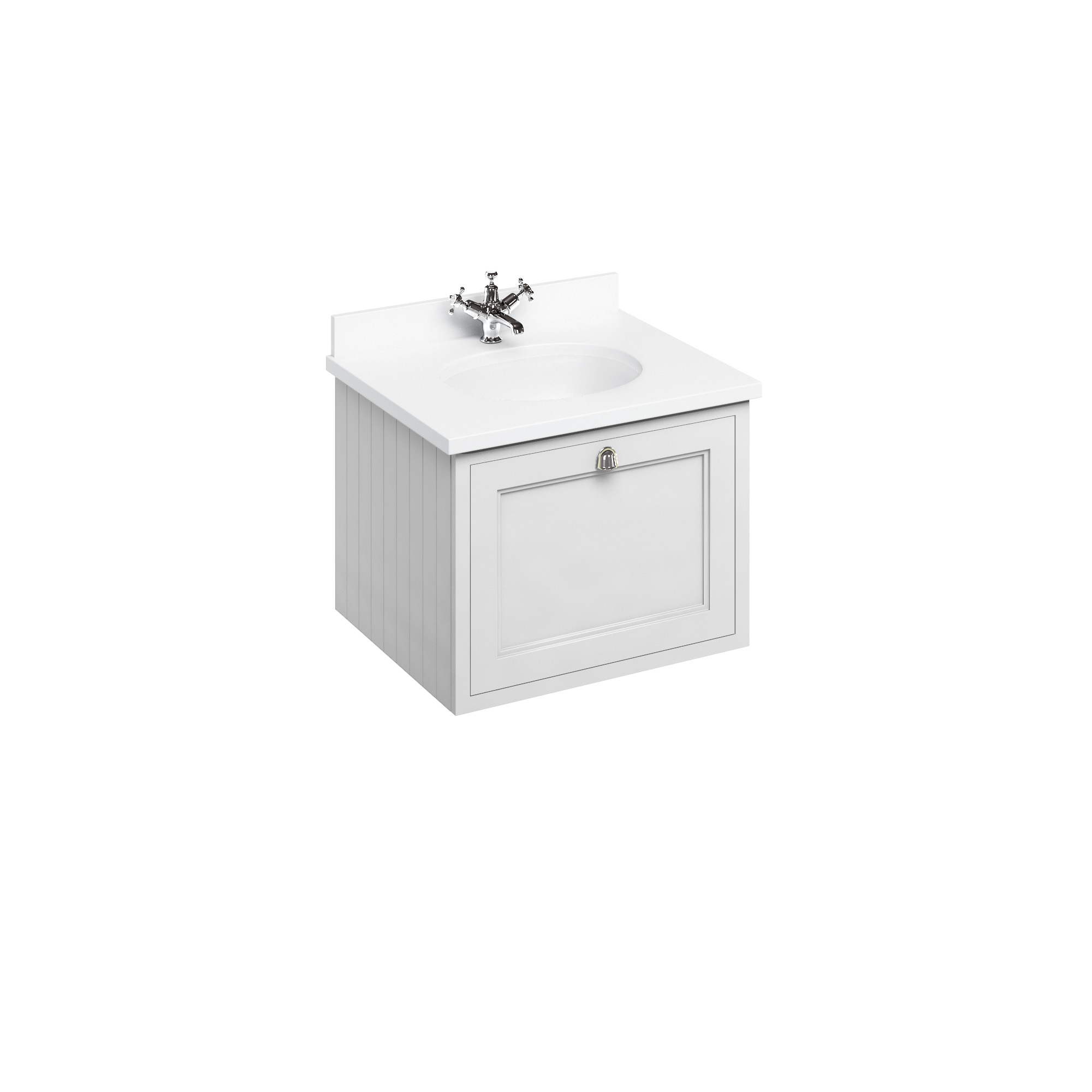

Minerva white worktop
|

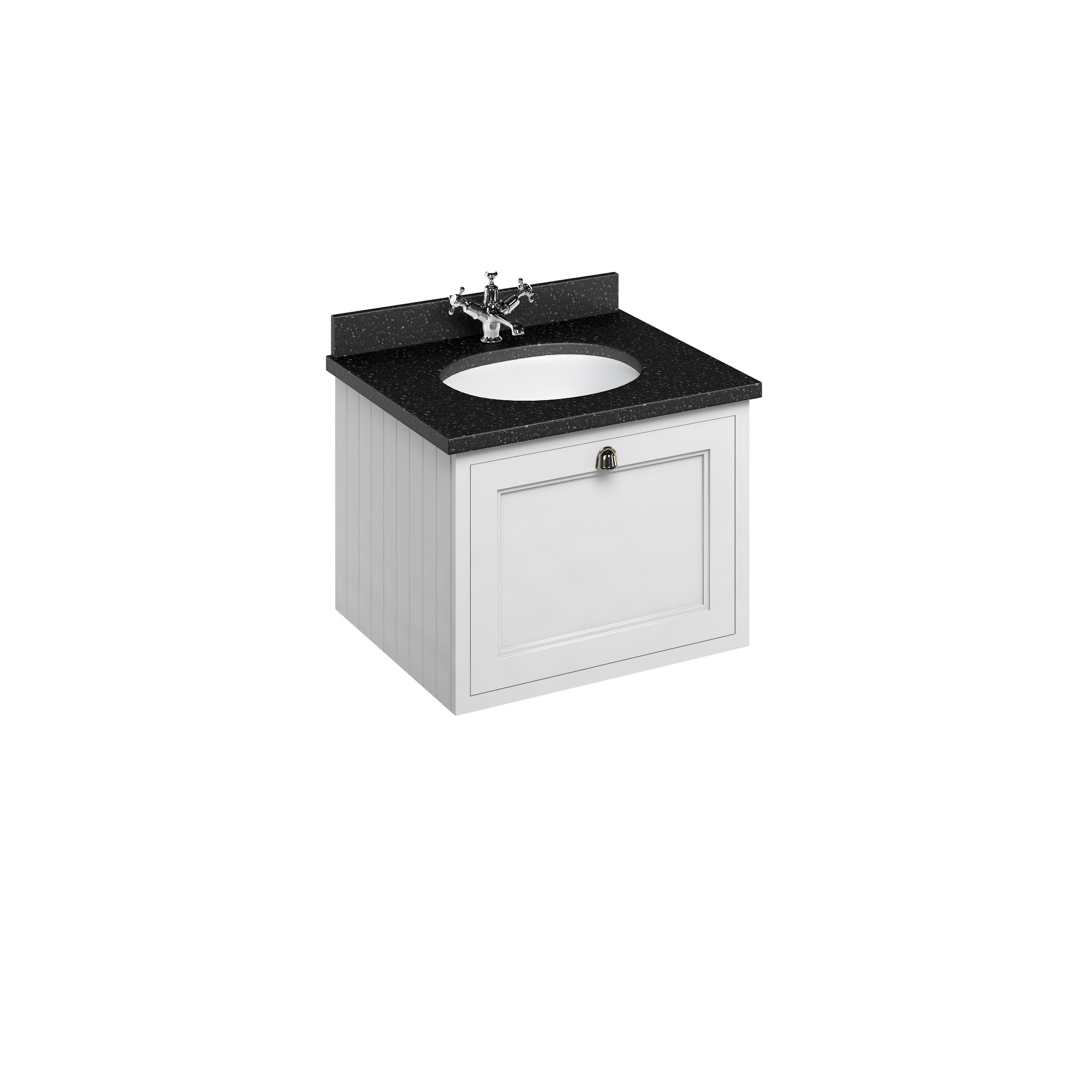

Minerva black granite worktop
|
As Shown
| BC66 Minerva carrara white with vanity bowl |
| FW1W 600 wall hung single drawer unit with end finished panel |
Gross Weight Including Packaging
| BC66 - worktop with intergrated basin - 24kg |
| FW1W - base unit - 25kg |
Packed Dimension
| BC66 - 745 x 625 x 255 = 0.1187 m3 |
| FW1W - 690 x 590 x 540 = 0.2198 m3 |
Tap Hole Options
| Tap holes are drilled by the installer. |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
A lacquered top coat with 3 layers of primer featuring UV stabilization to minimise colour fading from exposure to sunlight. |
|
Drawers are soft closing |
|
Chrome plated metal handles |
|
Fully assembled |
|
Minerva worktops are supplied with an integrated bowl with overflow, and no tap holes. Tap holes are drilled by the installer in the required position and configuration. A template is provided with the Minerva tops indicating tap hole positions and sizes. |
|
A backsplash is supplied with the worktop but is optional as to whether you want to use it. This can be fit into place using silicon. |
Downloads
-
2D CAD-File - DWG -
FW1W_BC66
(FW1_FT1B.dwg)
-
2D Drawing - PDF -
FW1W_BC66
(FW1_FT1B.pdf)
2D Drawing - PDF - FW1W_BC66
-
3D DWG - File - DWG
-
FW1W_BC66
(90561.dwg)
-
3D DXF - File - DXF
-
FW1W_BC66
(90561.dxf)
-
3D IGS - File - IGS
-
FW1W_BC66
(90561.igs)
-
3D RFA BIMM Objects - File - RFA
-
FW1W_BC66
(90561.rfa)
