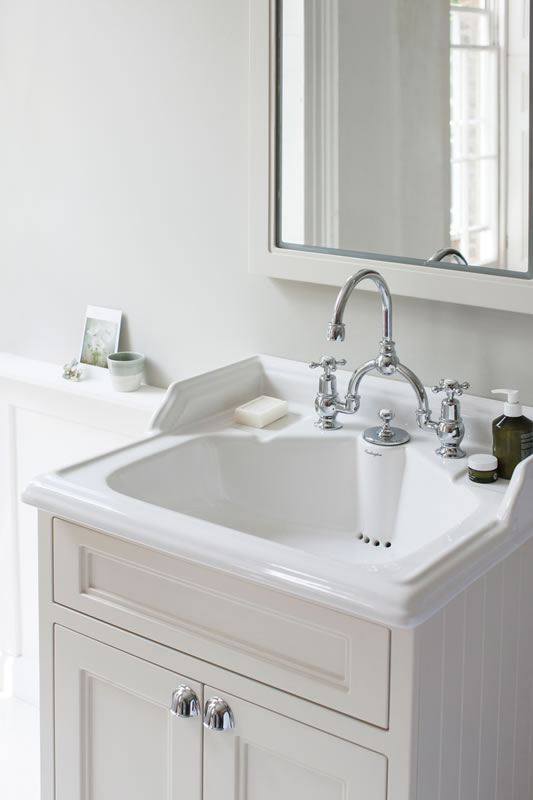

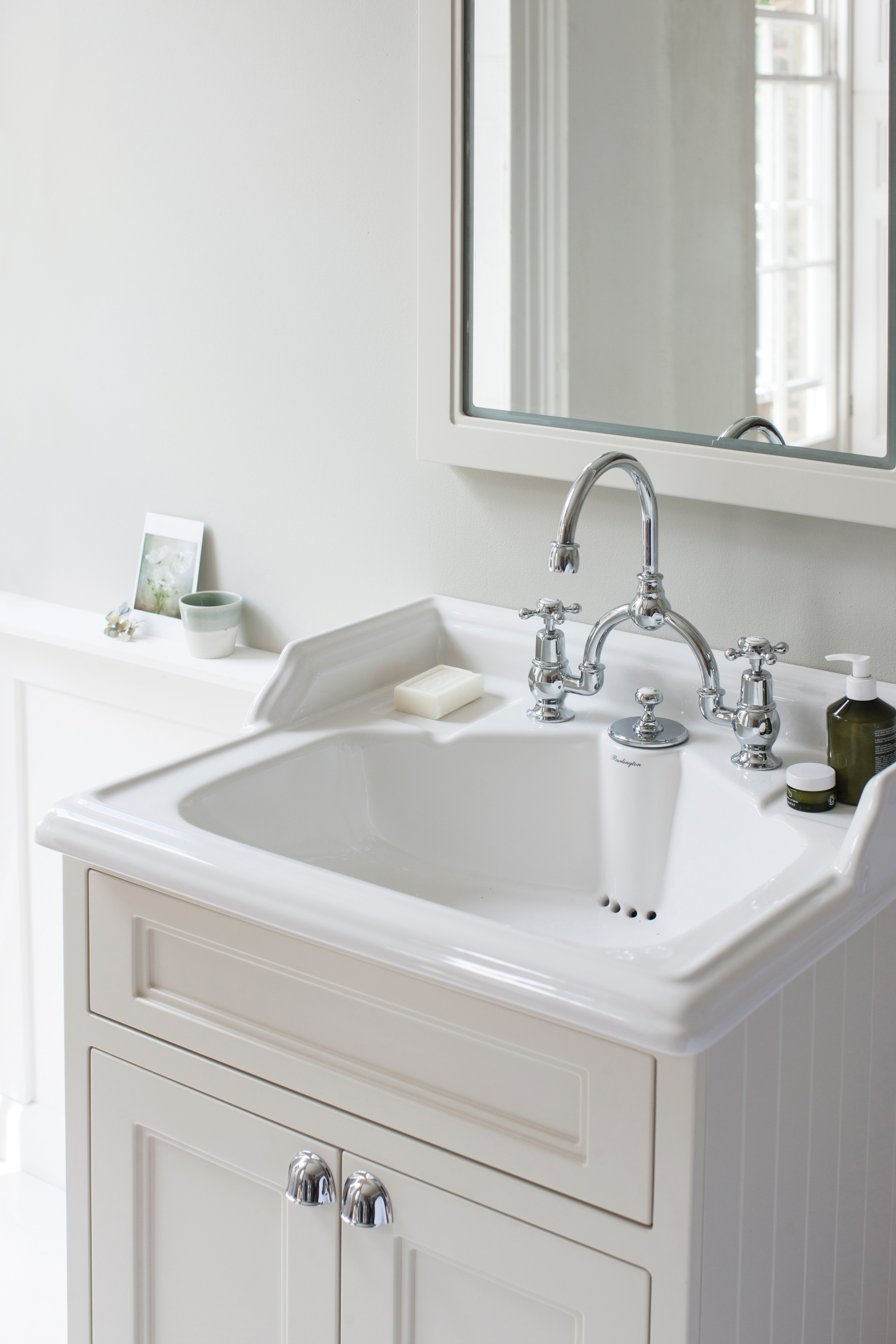

Freestanding 650 vanity unit with doors & Classic 650 basin for integrated waste & overflow
Product Options
Finish Options
Dark Olive
|
Sand
|
Matt White
|
Classic Grey
|
Blue
|
Matt Green
|
As Shown
| B14 Classic 65cm basin for integrated waste & overflow |
| FF8S Freestanding Basin Unit with doors |
Nett Weight
| B14 - basin - 16.95kg |
| FF8S - base unit - 31.2kg |
Gross Weight Including Packaging
| B14 - basin - 21.15kg |
| FF8S - base unit - 36.5kg |
Packed Dimension
| B14 - 670 x 597 x 315 = 0.126 m3 |
| FF8S - 730 x 615 x 885 = 0.3973 m3 |
Tap Hole Options
| Available with two (2TH) tap holes only. |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 14688:2015 |
|
BS EN 31:2011 |
|
EN14749:2016 |
Additional Information
|
The invisible overflow drains the water when the water level reaches the top of the basin. |
|
If using a mixer tap you must use one which has 230mm centres such as CL28 & CL28R. Alternatively use hot and cold pillar taps. |
Compatible Products
| W9 - Classic Basin Invisible Overflow & Waste |
| SP669 | adjustable leg 80mm for FF8, FF9, FC9, FC10, FC1, FC2, FC3, FC4, FC5 |
| SP1386 | box for FF8S |
| SPFF8DP_S | flat door panel for FF8S, FC9S, FC1S, FC2S, FC3S |
| SP759 | plinth for FF8S, FF9S |
| SPFF8TF-S | top fascia for FF8S, FC9S |
Downloads
-
2D CAD-File - DWG -
FF8S_B14
(FF8_B14.dwg)
-
2D Drawing - PDF -
FF8S_B14
(FF8_B14.pdf)
2D Drawing - PDF - FF8S_B14
-
3D DWG - File - DWG
-
FF8S_B14
(90523.dwg)
-
3D DXF - File - DXF
-
FF8S_B14
(90523.dxf)
-
3D IGS - File - IGS
-
FF8S_B14
(90523.igs)
-
3D RFA BIMM Objects - File - RFA
-
FF8S_B14
(90523.rfa)
