Arcade dual-lever basin mixer without pop up waste
Product Options
finish options
handle options
|
chrome
|
nickel
|
crosshead handle
|
brass lever
|
white ceramic lever
|
gloss black ceramic lever
|
As Shown
| ARC 2014 CHR Arcade dual lever basin mixer without pop up waste - chrome |
| ARC67 CHR brass tap levers (pair) |
| ABBL14C - Combined product code |
Gross Weight Including Packaging
| ARC 2014 CHR - tap - 1.85kg |
| ARC67 CHR - tap handle - 0.55kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Flow Straighter | 6.23 | 11.55 | 17.44 | 25.95 | 32.23 | 37.9 | 40.93 |
| Aerator | 3.08 | 5.1 | 7.88 | 11.84 | 14.7 | 17.23 | 19.05 |
| ARCSP138CHR | chrome finish Crosshead handle (single piece) for Arcade basin taps (except ARC12 CHR, ARC2012CHR) |
| SP1620 | cold cartridge for ARC 2014, ARC 2015, ARC 2016, ARC 2017, ARC 2036 |
| ARCSP182 | flow straightener for Arcade Basin taps |
| SP1619 | hot cartridge for ARC 2014, ARC 2015, ARC 2016, ARC 2017, ARC 2036 |
Downloads
- Instructions - PDF - ARC 2014 CHR (English)
- Instructions - PDF - ARC67 CHR (English)
- Instructions - PDF - ARC67 CHR (French)
- Instructions - PDF - ARC 2014 CHR (French)
-
2D CAD-File - DWG -
ABBL14C
(ARC 2014_ARC67__NKL_CHR.dwg)
-

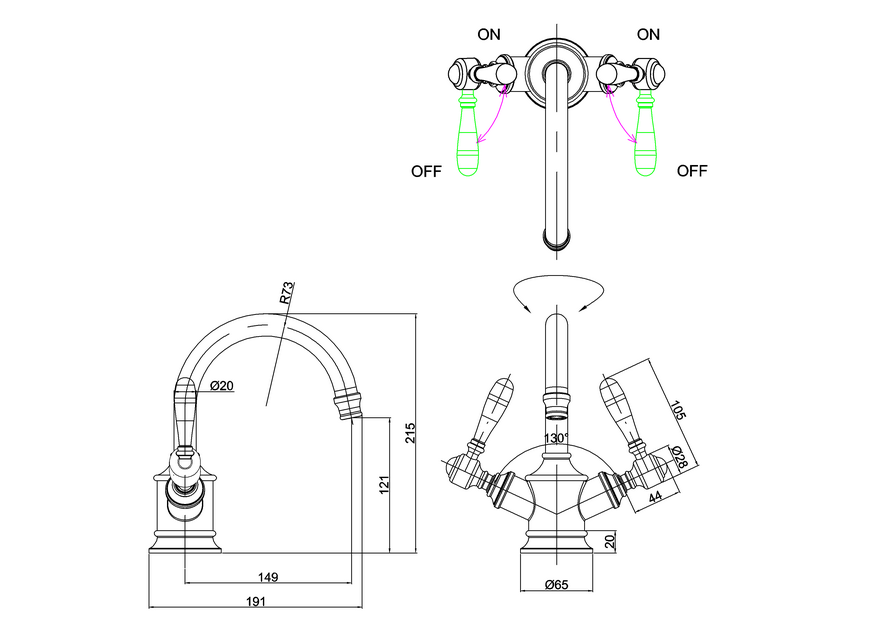

2D Drawing - PDF -
ABBL14C
(ARC 2014_ARC67__NKL_CHR.pdf)
2D Drawing - PDF - ARC14 CHR
-
3D RFA BIMM Objects - File - RFA
-
ABBL14C
(ABBL14C.rfa)
- 3D IGS - File - IGS - ARC67 CHR (ARC67.igs)
- 3D IGS - File - IGS - ARC 2014 CHR (ARC 2014.igs)
