Arcade basin pillar taps
Product Options
finish options
handle options
|
chrome
|
nickel
|
crosshead handle
|
brass lever
|
white ceramic lever
|
gloss black ceramic lever
|
As Shown
| ARC65 CHR white ceramic tap levers (pair) |
| ARC 2017 CHR Arcade basin pillar taps - chrome |
| AWL17C - Combined product code |
Gross Weight Including Packaging
| ARC65 CHR - tap handle - 0.41kg |
| ARC 2017 CHR - tap - 1.72kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
|
BS EN 817:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Flow Straighter | 6.21 | 12.37 | 18.3 | 26.88 | 33.55 | 38.89 | 43.65 |
| Aerator | 3.75 | 5.97 | 8.59 | 12.39 | 15.16 | 17.64 | 19.45 |
| ARCSP138CHR | chrome finish Crosshead handle (single piece) for Arcade basin taps (except ARC12 CHR, ARC2012CHR) |
| SP1620 | cold cartridge for ARC 2014, ARC 2015, ARC 2016, ARC 2017, ARC 2036 |
| ARCSP182 | flow straightener for Arcade Basin taps |
| SP1619 | hot cartridge for ARC 2014, ARC 2015, ARC 2016, ARC 2017, ARC 2036 |
Downloads
- Instructions - PDF - ARC65 CHR (English)
- Instructions - PDF - ARC 2017 CHR (English)
- Instructions - PDF - ARC65 CHR (French)
- Instructions - PDF - ARC 2017 CHR (French)
-
2D CAD-File - DWG -
AWL17C
(ARC 2017_ARC65_ARC66 _NKL_CHR.dwg)
-

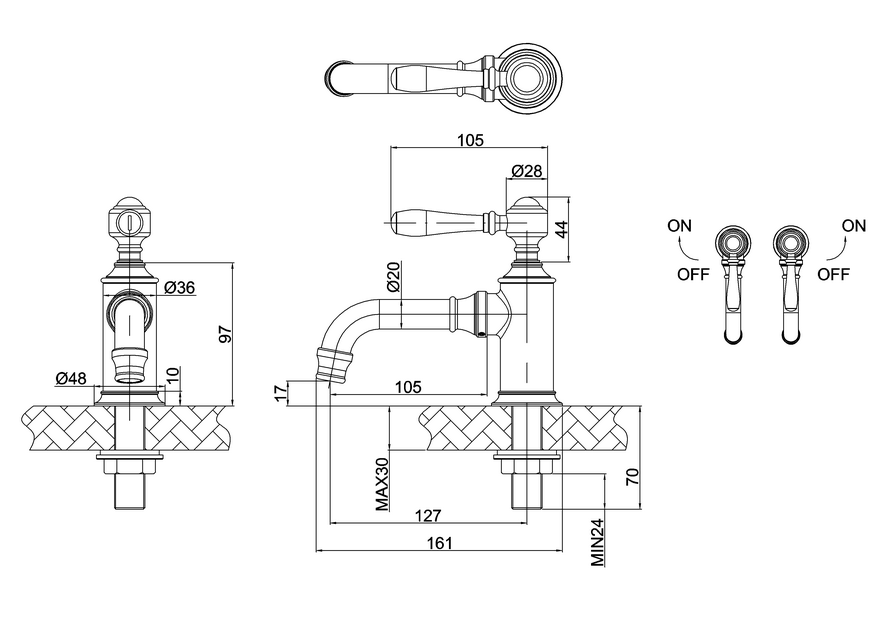

2D Drawing - PDF -
AWL17C
(ARC 2017_ARC65_ARC66 _NKL_CHR.pdf)
2D Drawing - PDF - ARC17 CHR
-
3D RFA BIMM Objects - File - RFA
-
AWL17C
(AWL17C.rfa)
- 3D IGS - File - IGS - ARC65 CHR (ARC65.igs)
- 3D IGS - File - IGS - ARC 2017 CHR (ARC 2017.igs)
