500mm cloakroom basin
Product Options
overflow finish options
tap hole options
nickel overflow
|
chrome overflow
|

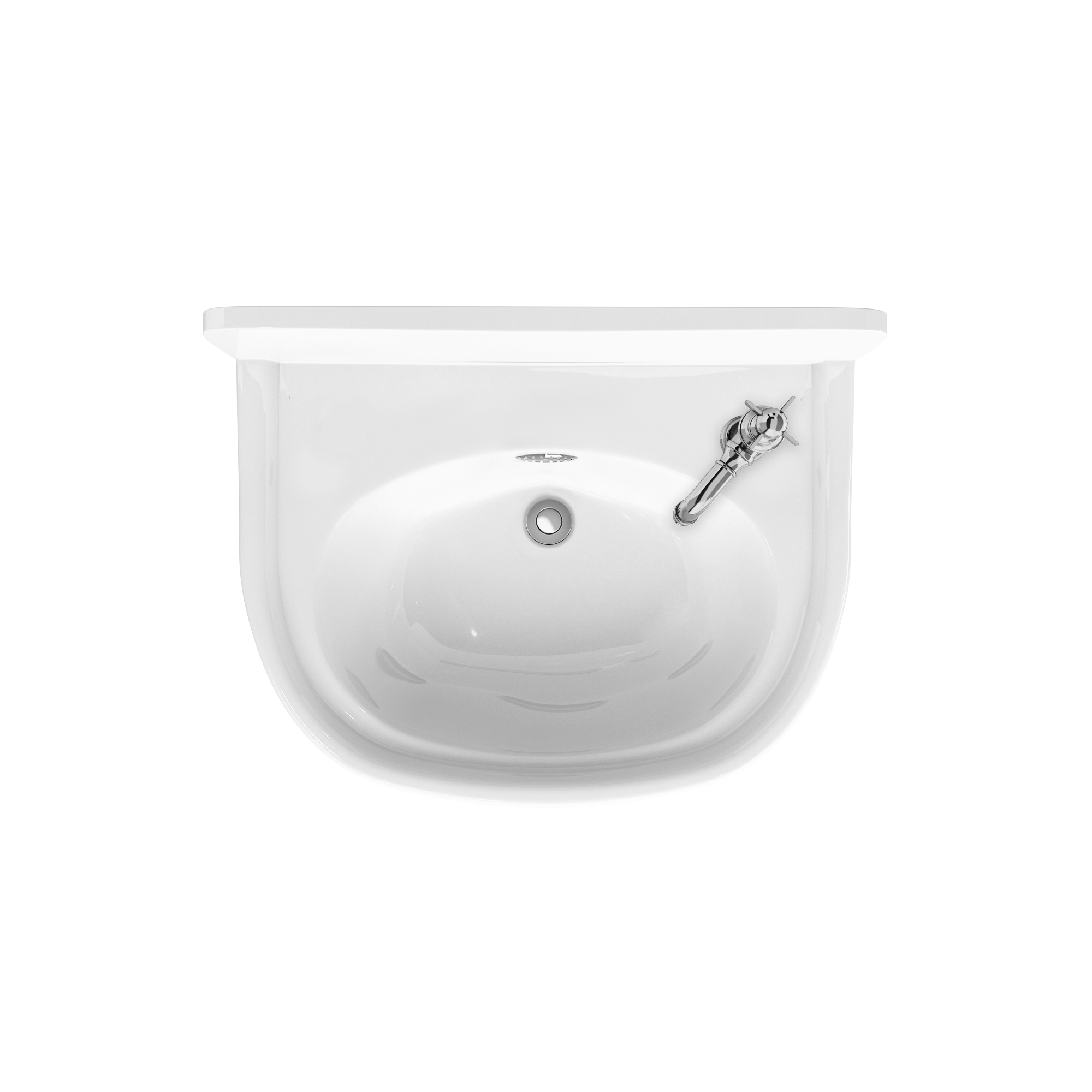

1 tap hole
|

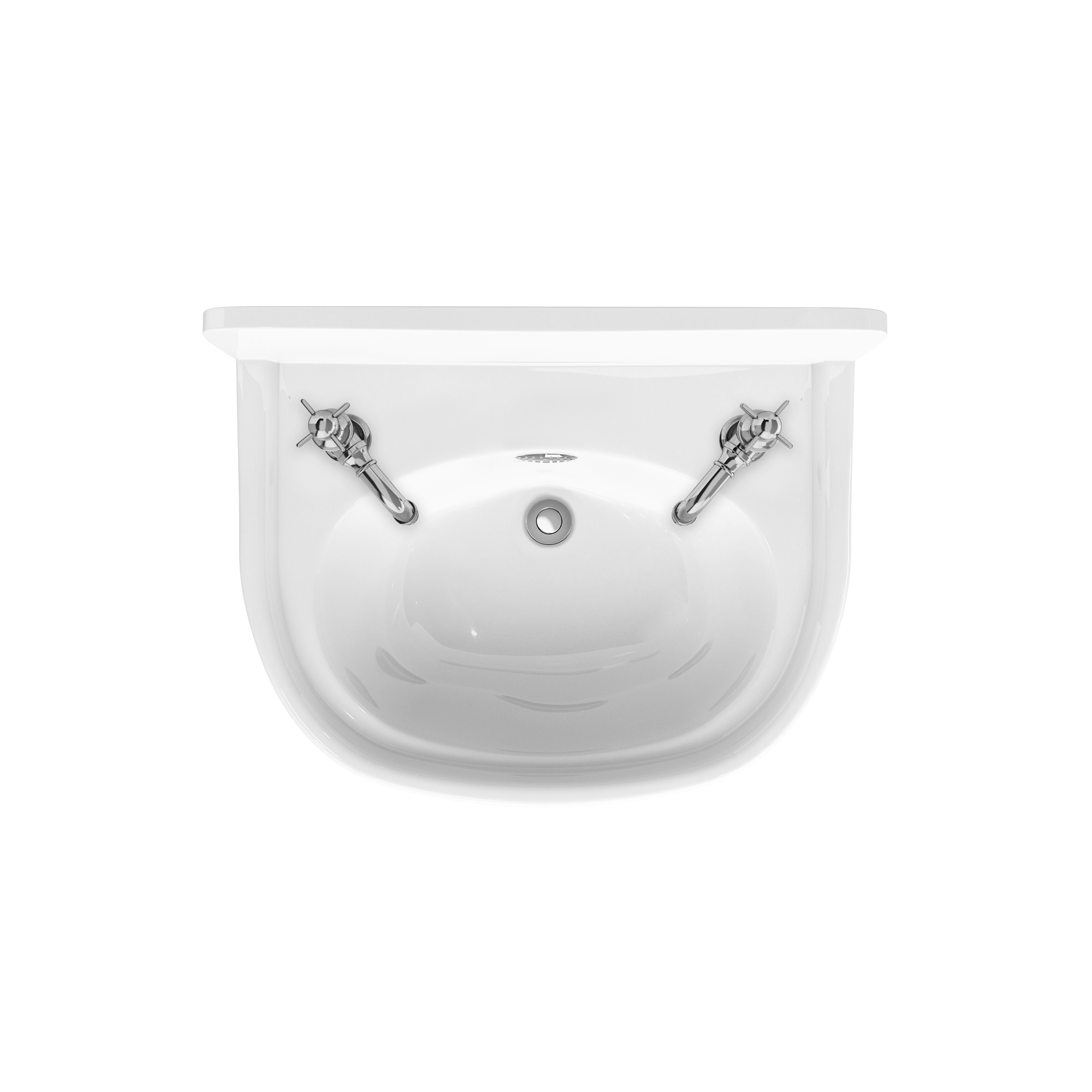

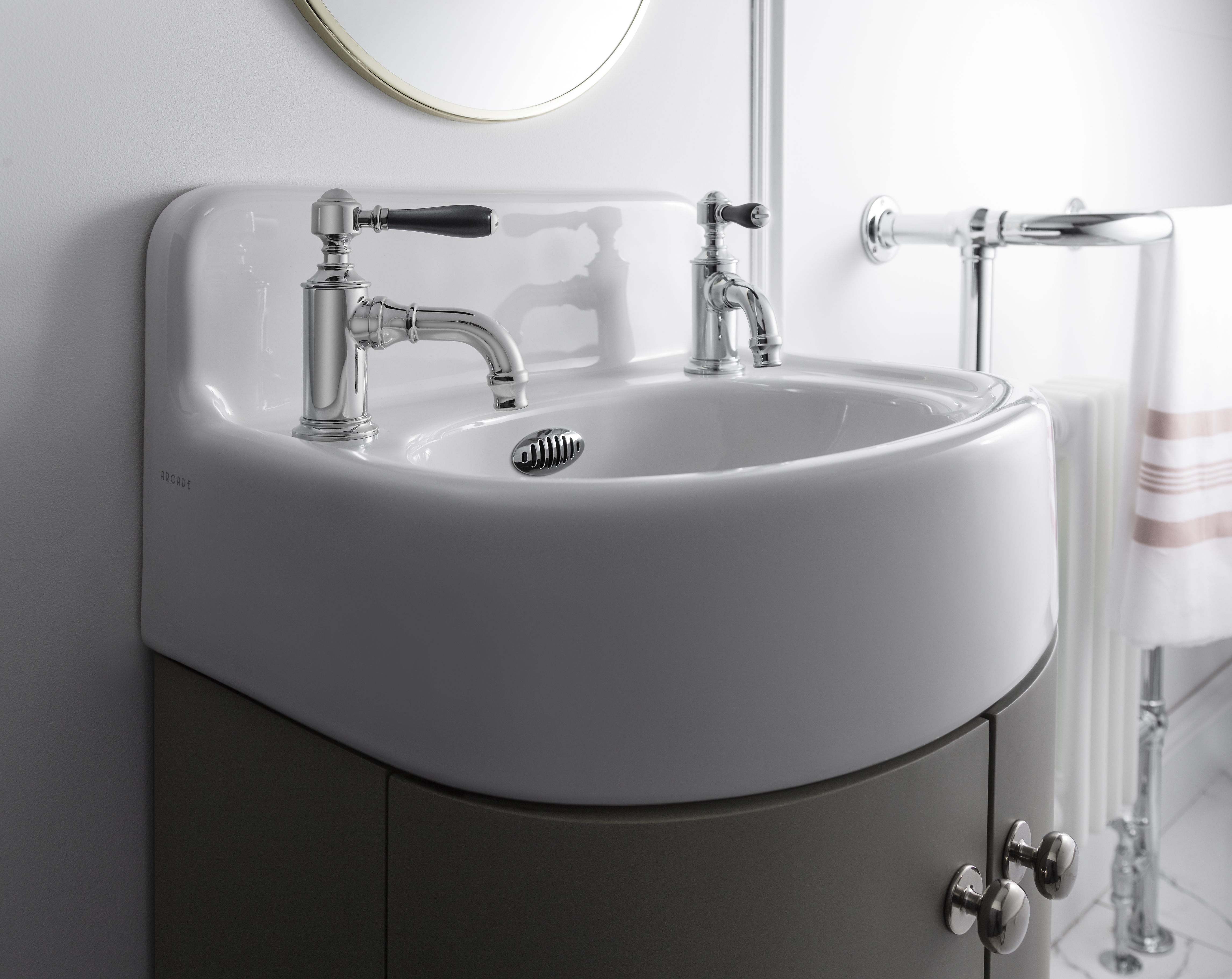

2 tap holes
|
As Shown
| ARC5002TH 500mm Arcade cloakroom basin 2TH |
| A68CHR Basin overflow |
Gross Weight Including Packaging
| ARC5002TH - basin - 19.35kg |
| A68CHR - overflow - 0.01kg |
Packed Dimension
| ARC5002TH - 520 x 330 x 420 = 0.0721 m3 |
| A68CHR - 85 x 45 x 35 = 0.0001 m3 |
Tap Hole Options
| Available with one (1TH RH) or two (2TH) tap holes |
Guarantee
Standards Information
|
BS EN 14688:2006 |
Additional Information
|
This Basin requires a chrome overflow ring, included free of charge A68 CHR |
Compatible Products
| W18 NKL - Flip top basin waste (for basins with overflow ) |
| W4 NKL - Traditional bottle trap with extended wall tube |
| A68CHR | arcade overflow of basin - chrome |
| ARCSP8 | arcade overflow ring - nickel |
| SP86 | wall brackets for cloakroom basins |
Downloads
- Instructions - PDF - ARC5002TH (English)
- Instructions - PDF - A68CHR (English)
- Instructions - PDF - ARC5002TH (French)
-
2D CAD-File - DWG -
ARC500 2TH
(ARC500 2TH_LD.dwg)
-

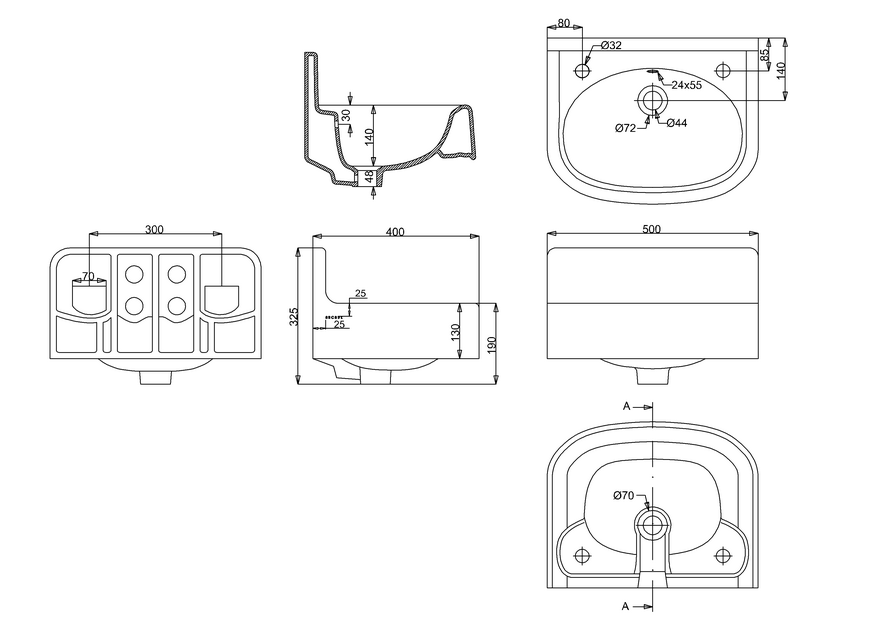

2D Drawing - PDF -
ARC500 2TH
(ARC500 2TH_LD.pdf)
2D Drawing - PDF - ARC500 2TH
-
3D DWG - File - DWG
-
ARC500 2TH
(ARC500 2TH_1.dwg)
-
3D DXF - File - DXF
-
ARC500 2TH
(ARC500 2TH_1.dxf)
-
3D IGS - File - IGS
-
ARC500 2TH
(ARC500 2TH_1.igs)
