900mm basin
asaq2.Model.Web_product_new?.web_name
Product Options
mounting options
Arcade 900mm basin with chrome overflow & pedestal pedestal Arcade 900mm basin with chrome overflow & basin stand basin stand Arcade 900mm basin with chrome overflow & ceramic console legs ceramic console legs
overflow finish options
Arcade 900mm basin with nickel overflow & ceramic console legs nickel overflow Arcade 900mm basin with chrome overflow & ceramic console legs chrome overflow
tap hole options

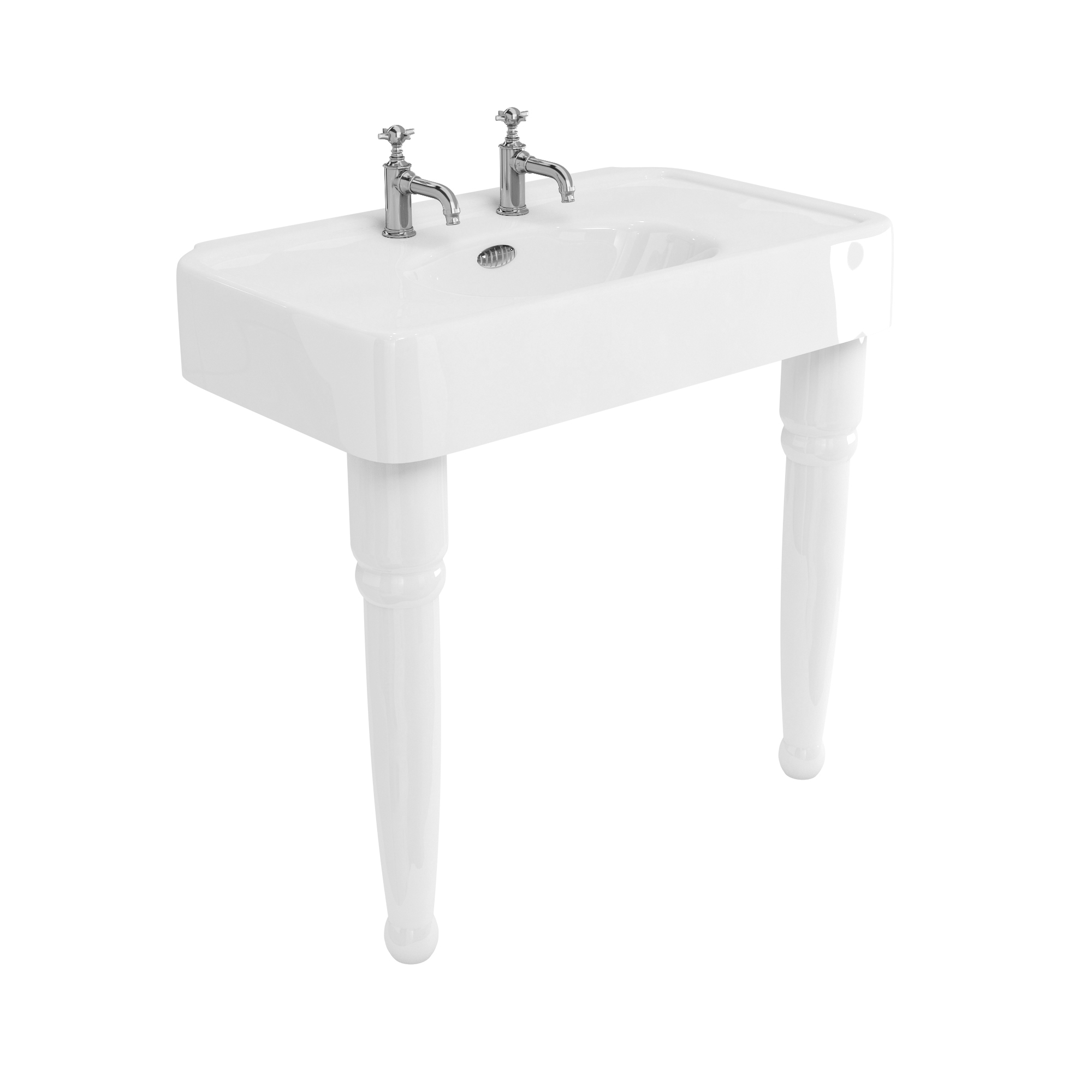

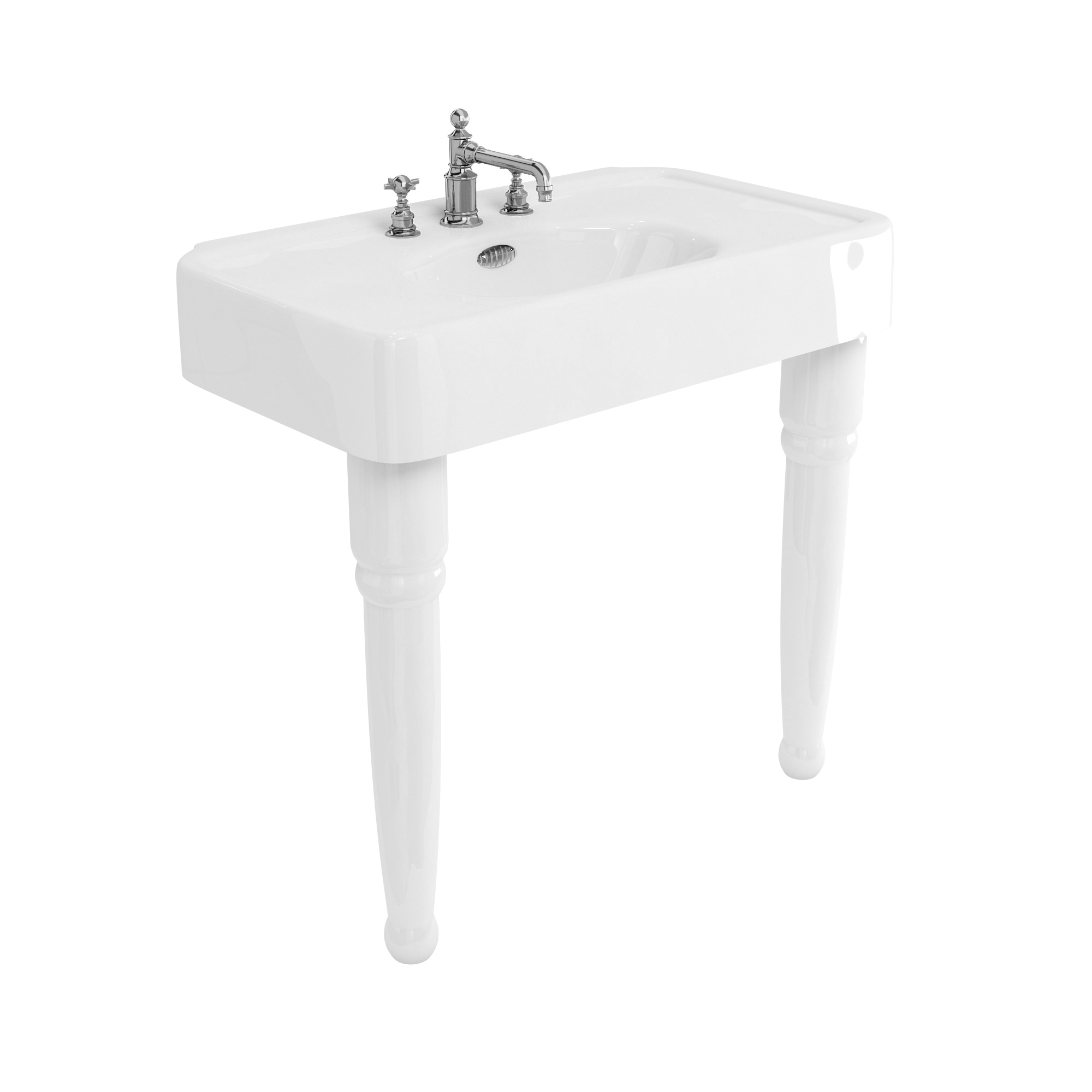

Arcade 900mm basin with chrome overflow & ceramic console legs no tap holes Arcade 900mm basin with chrome overflow & ceramic console legs 1 tap hole Arcade 900mm basin with chrome overflow & ceramic console legs 2 tap holes Arcade 900mm basin with chrome overflow & ceramic console legs 3 tap holes
Alternate Text
As Shown
ARC900 1TH 900mm Arcade basin 1TH
ARC2 Arcade ceramic console legs
A68CHR Basin overflow
Colour
ARC900 1TH - basin - Gloss White
ARC2 - legs - Gloss White
A68CHR - overflow - Polished Chrome
Material
ARC900 1TH - basin - Fine Fire Clay
ARC2 - legs - Fine Fire Clay
A68CHR - overflow - ABS
Size
ARC900 1TH - 550 x 905 x 200mm
ARC2 - 115 x 115 x 755mm
A68CHR - 66 x 31 x 22mm
Nett Weight
ARC900 1TH - basin - 32.05kg
ARC2 - legs - 6.6kg
A68CHR - overflow - 0.006kg
Gross Weight Including Packaging
ARC900 1TH - basin - 34.9kg
ARC2 - legs - 7.6kg
A68CHR - overflow - 0.01kg
Packed Dimension
ARC900 1TH - 925 x 225 x 565 = 0.1176 m3
ARC2 - 770 x 130 x 235 = 0.0235 m3
A68CHR - 85 x 45 x 35 = 0.0001 m3
Tap Hole Options
0,1,2 or 3
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN 14688:2015
BS EN 31:2011
Additional Information
To order the correct tap hole configuration simply use NTH, 1TH, 2TH or 3TH at the end of the basin product code.
The overflow is to solve the issue of a dripping tap if the plug is left in. It is not designed to take a flowing tap.
A chrome overflow ring availabel as optional item(A68 CHR).
Compatible Products
W18 NKL -    Flip top basin waste (for basins with overflow )
W4 NKL -    Traditional bottle trap with extended wall tube
ARCW18 CHR -    Arcade flip top basin waste (for basins with overflow )
A68CHR arcade overflow of basin - chrome
ARCSP8 arcade overflow ring - nickel
Downloads
  • Instructions - PDF - ARC2 (English)
  • Instructions - PDF - A68CHR (English)
  • Instructions - PDF - ARC2 (French)
  • 3D DWG - File - DWG  -  ARC900 1TH ARC2 (80051.dwg)
  • 3D DXF - File - DXF  -  ARC900 1TH ARC2 (80051.dxf)
  • 3D IGS - File - IGS  -  ARC900 1TH ARC2 (80051.igs)
  • 3D RFA BIMM Objects - File - RFA  -  ARC900 1TH ARC2 (80051.rfa)
  • Product image 1 - jpg

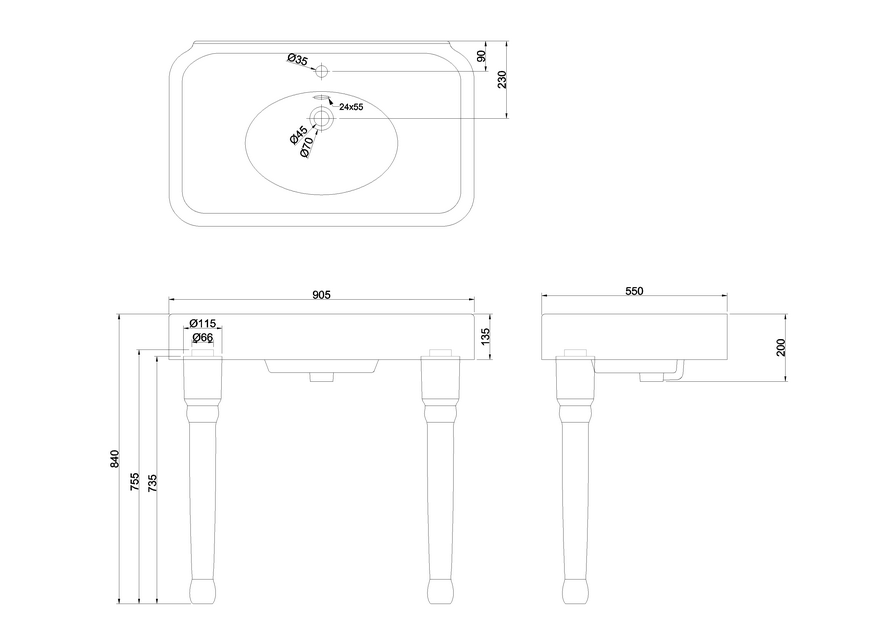

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
