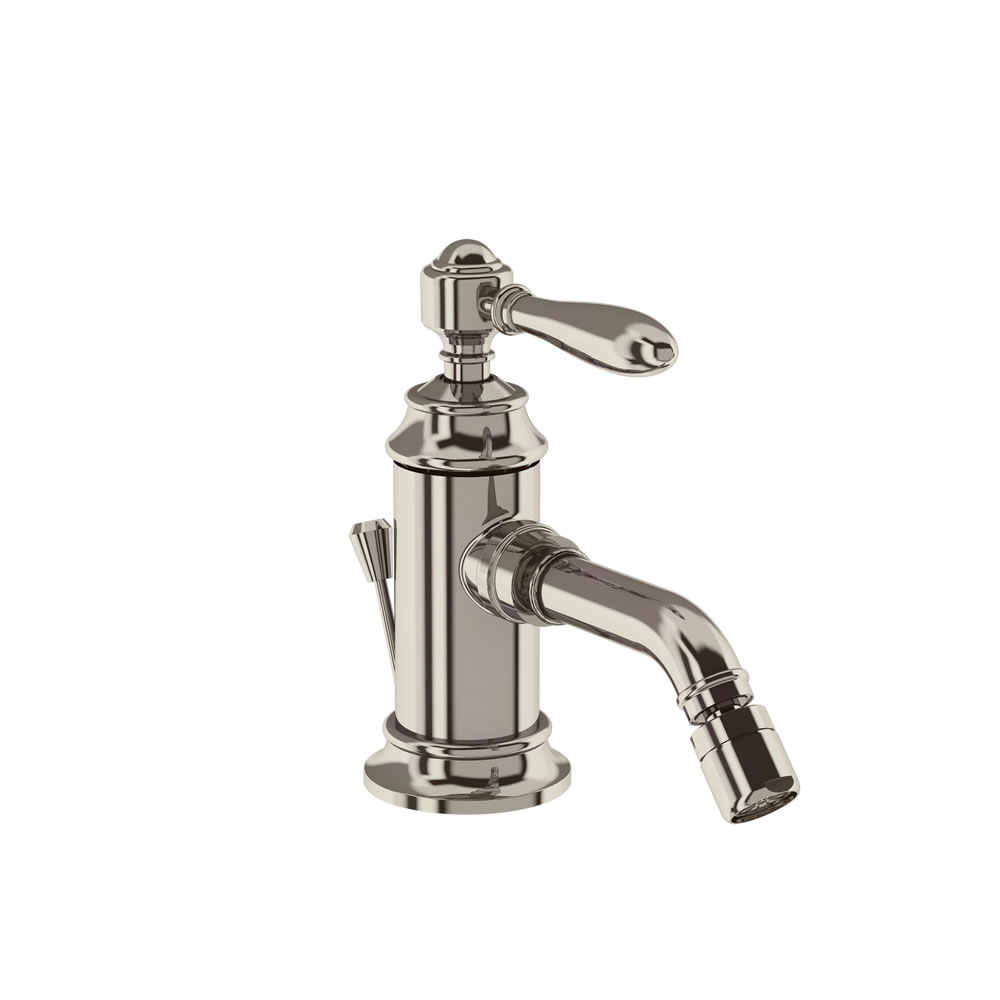

Arcade single-lever bidet mixer with pop up waste
Product Options
Finish options
Handle options
|
Chrome
|
Nickel
|
crosshead handle
|
brass lever
|
white ceramic lever
|
gloss black ceramic lever
|
As Shown
| ARC 2013 CHR Arcade single lever bidet mixer with pop up waste - chrome |
| ARC67 CHR brass tap levers (pair) |
| ABBL13C - Combined product code |
Gross Weight Including Packaging
| ARC 2013 CHR - tap - 1.9kg |
| ARC67 CHR - tap handle - 0.55kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 200:2008 |
Additional Information
|
Supplied with flow straighter for use with low water pressure |
|
Also supplied with aerator for use with high water pressure |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Flow Straighter | 3.31 | 7.12 | 11.17 | 16.01 | 20.16 | 23.65 | 26.36 |
| Aerator | 2.97 | 5.14 | 7.92 | 11.33 | 14.33 | 16.81 | 18.52 |
| ARCSP151 CHR | chrome finish aerator nozzle for ARC 2013 CHR, ARC13 CHR |
| ARCSP152 CHR | chrome finish flow straightener nozzle for ARC 2013 CHR, ARC13 CHR |
| ARCSP167 CHR | chrome finish Pop up waste for ARC 2013 CHR, ARC13 CHR |
| SP1769 | handle base set in chrome for product ARC 2012 CHR, ARC 2013 CHR |
Downloads
- Instructions - PDF - ARC 2013 CHR (English)
- Instructions - PDF - ARC67 CHR (English)
- Instructions - PDF - ARC67 CHR (French)
- Instructions - PDF - ARC 2013 CHR (French)
-
2D CAD-File - DWG -
ABBL13C
(ARC 2013_ARC67_CHR_NKL.dwg)
-

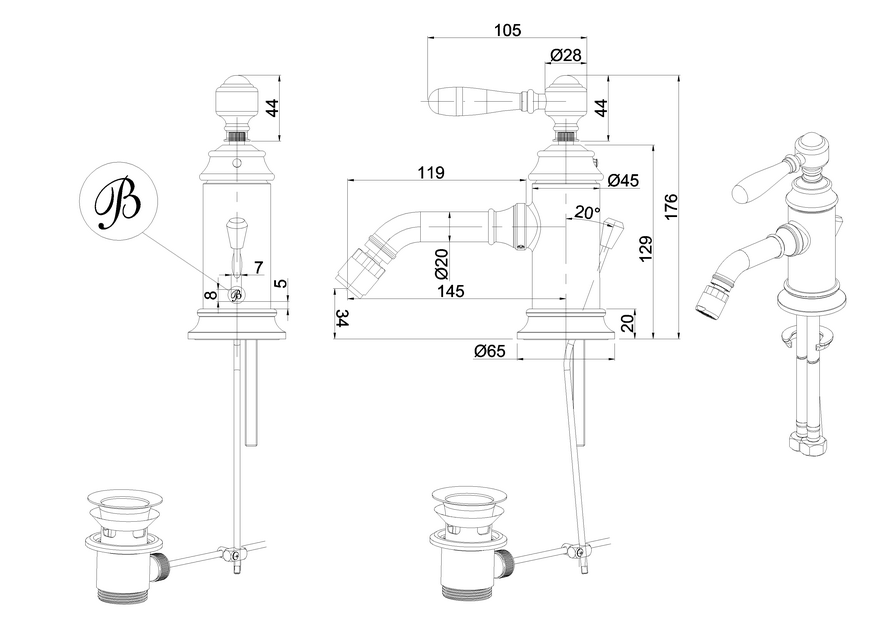

2D Drawing - PDF -
ABBL13C
(ARC 2013_ARC67_CHR_NKL.pdf)
2D Drawing - PDF - ARC13 CHR
-
3D RFA BIMM Objects - File - RFA
-
ABBL13C
(ABBL13C.rfa)
- 3D IGS - File - IGS - ARC67 CHR (ARC67.igs)
- 3D STP - File - STP - ARC 2013 CHR (ARC2013.stp)
