Angled radiator valves
Product Options
Finish Options
chrome & white
|
chrome & medici
|
nickel & white
|
chrome & black
|
gold
|
brushed nickel
|
As Shown
| R6 NKL Angled Radiator Valve - nickel |
Material
| R6 NKL - valve - Brass |
Nett Weight
| R6 NKL - valve - 0.8kg |
Gross Weight Including Packaging
| R6 NKL - valve - 0.85kg |
Packed Dimension
| R6 NKL - 150 x 120 x 50 = 0.0009 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
Chrome plated to BS EN248:2002 Sanitary tapware. General specification for electro deposited coatings of Ni |
| ARCSP36 | nickel finish floor caps for ARCR6 NKL, ARCR7 NKL, R6 NKL, R7 NKL (pair) |
Downloads
-
2D CAD-File - DWG -
R6 NKL
(ARCR6 NKL_LD.dwg)
-

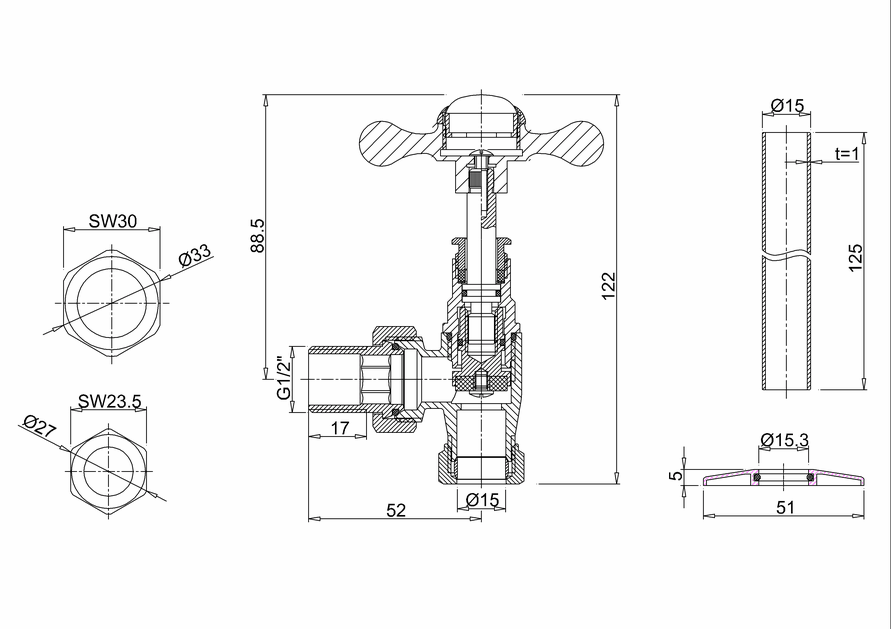

2D Drawing - PDF -
R6 NKL
(ARCR6 NKL_LD.pdf)
2D Drawing - PDF - R6 NKL
-
3D DWG - File - DWG
-
R6 NKL
(R6.dwg)
-
3D DXF - File - DXF
-
R6 NKL
(R6.dxf)
-
3D IGS - File - IGS
-
R6 NKL
(R6.igs)
-
3D RFA BIMM Objects - File - RFA
-
R6 NKL
(R6_1.rfa)
