Complete fire hydrant (including outlet extension, waste extension and cover plates for overflow hole)
Product Options
finish options
|
chrome
|
nickel
|
As Shown
| ARC40 CHR Complete Fire Hydrant (including outlet extension, waste extension and cover plates for overflow hole) - chrome |
Material
| ARC40 CHR - fire hydrant - brass |
Nett Weight
| ARC40 CHR - fire hydrant - 9.62kg |
Gross Weight Including Packaging
| ARC40 CHR - fire hydrant - 10.12kg |
Packed Dimension
| ARC40 CHR - 920 x 445 x 140 = 0.0573 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Extra outlet extension, waste extension and cover plates for overflow hole |
| SP1362 | set of olives and rubber washers for ARC40 CHR, W8N, ARC40 |
| SP929 | wall & floor fixing screws & plugs for product AF1S, AF3S, W6, W7, W8N, V12, V22, V33, W24, ARC40 CHR, ARC64 CHR,, ARC74 CHR, TF1H |
| SP1239 | washer and extension pipe for ARC40 CHR |
Downloads
-
2D CAD-File - DWG -
ARC40 CHR
(ARC40_LD.dwg)
-

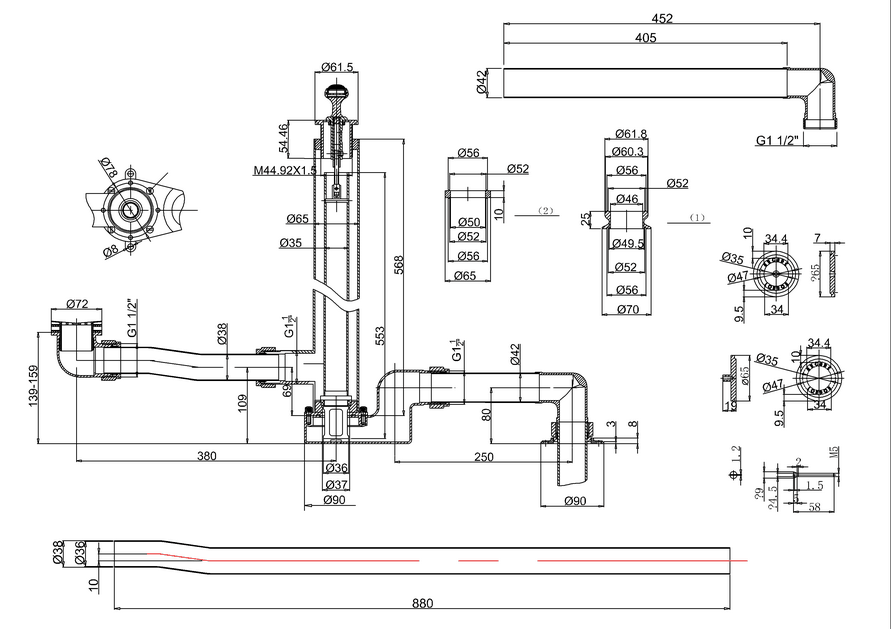

2D Drawing - PDF -
ARC40 CHR
(ARC40_LD.pdf)
2D Drawing - PDF - ARC40 CHR
-
3D DWG - File - DWG
-
ARC40 CHR
(ARC40.dwg)
-
3D DXF - File - DXF
-
ARC40 CHR
(ARC40.dxf)
-
3D IGS - File - IGS
-
ARC40 CHR
(ARC40.igs)
-
3D RFA BIMM Objects - File - RFA
-
ARC40 CHR
(ARC40.rfa)
