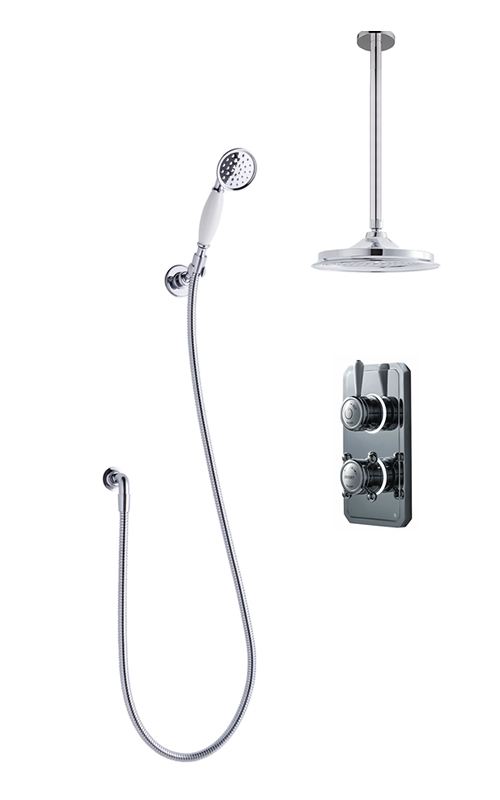

Classic 1910 dual outlet shower set
Product Options
Pressure options
Air Burst showerhead options
Shower head wall mount options
|
High pressure
|
Low pressure
|
9" Air Burst showerhead
|
6" Air Burst showerhead
|
12" Air Burst showerhead
|
Wall arm
|
Ceiling arm
|
As Shown
| TK12 Dual Outlet digital processor with Traditional trim kit - high pressure |
| V16 6 inch shower rose |
| V64 Ceiling Arm |
| V70 Handspray Kit (including shower hook, telephone handset & hose and 1/2 outlet elbow) |
| TK3CSH - Combined product code |
Gross Weight Including Packaging
| TK12 - - 4kg |
| V16 - shower rose - 0.58kg |
| V64 - - 1.34kg |
| V70 - - 1.44kg |
Packed Dimension
| TK12 - 532 x 410 x 144 = 0.0314 m3 |
| V16 - 200 x 190 x 100 = 0.0038 m3 |
| V64 - 300 x 120 x 120 = 0.0043 m3 |
| V70 - 265 x 170 x 125 = 0.0056 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Consistent temperature - A built-in thermistor checks the temperature 10 times every second so that, even when someone is using water elsewhere in the house, the water temperature will stay exactly the same. |
|
Shower controls are kept completely separate from the water in the valve, which means they always stay cool and safe to touch. |
|
If there are any problems with your water supply, the shower will shut off immediately. This gives you the peace of mind of knowing your family are fully protected from hot water scalding or the discomfort of an unexpected cold shower. |
|
Each digital processor has a pre-set maximum temperature of 41°C, which can be overridden and adjusted to 46°C. As bath temperatures are usually higher, when you divert to the bath outlet the maximum temperature will automatically rise to 44°C. |
|
Installation - Push fit isolation valves, a standard electrical plug fitting and easy to set up cable connections allow make your plumber’s job simpler. |
|
Cleaning mode - While the shower is off, set the temperature to midway between hot and cold, then press and hold the dial for 5 seconds. The light on the controller will come on to show you it’s locked, then after one minute it will automatically unlock. |
| V26 | burlington Shower hose 1500mm |
| V30 | outlet elbow 1, 2 |
| V18 | shower hook (for wall mounting of telephone shower head) |
Downloads
- Instructions - PDF - V16 (English)
- Instructions - PDF - V70 (English)
- Instructions - PDF - V70 (French)
-
2D CAD-File - DWG -
TK3CSH
(TK3CSH_TK8CSH__TK3CMH_TK8CMH__TK3CLH_TK8CLH.dwg)
-
2D Drawing - PDF -
TK3CSH
(TK3CSH_TK8CSH__TK3CMH_TK8CMH__TK3CLH_TK8CLH.pdf)
2D Drawing - PDF - TK3CSH
- 3D DWG - File - DWG - V16 (V16_6_showerhead.DWG)
- 3D DXF - File - DXF - V16 (V16_6_showerhead.dxf)
- 3D IGS - File - IGS - V16 (V16_6_showerhead.igs)
- 3D STP - File - STP - V16 (V16_shower_head.stp)
- 3D RFA BIMM Objects - File - RFA BIMM Objects - V16 (V16_6_showerhead.rfa)
