Rimless Medium Level WC
asaq2.Model.Web_product_new?.web_name
Product Options
cistern options
Rimless medium level WC with  520 lever cistern standard lever cisten Rimless close-coupled pan with Chrome Aluminium cistern and medium-level flush pipe kit chrome aluminium cistern
Alternate Text
As Shown
P20 Burlington Rimless Close Coupled Pan
C1 510mm close coupled/low level ceramic lever cistern
T33 CHR Medium Level Flush Pipe Kit Including Medium Ornate Brackets In Chrome
S18 Gloss white soft close hinge seat
Guarantee
Lifetime guarantee*
*Full terms & conditions here
Standards Information
BS EN 248:2002
BS EN 33:2019
BS EN 14055:2018
BS EN 997:2018
Additional Information

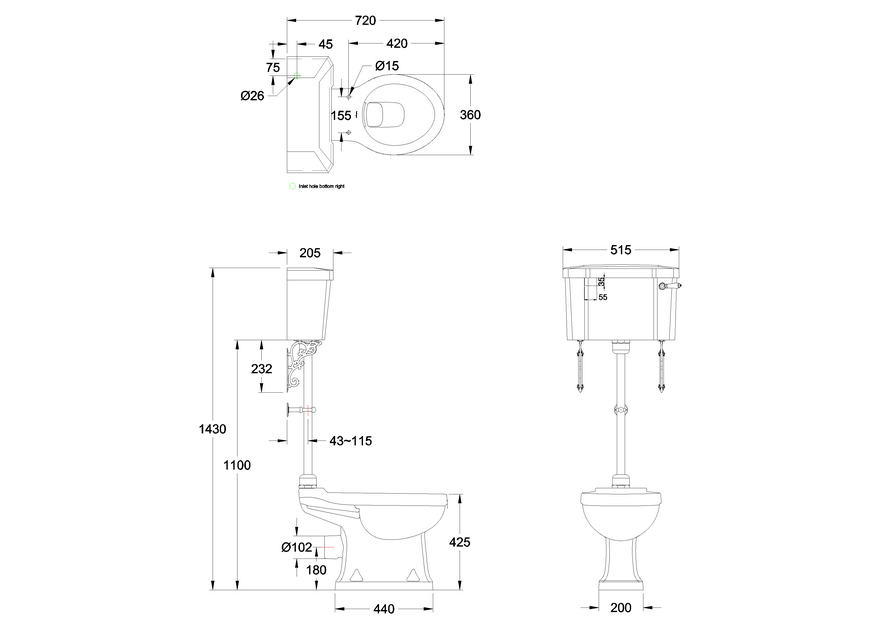

P trap standard height pan - height from floor to pan rim is 42cm.
The medium level wc uses a standard close coupled pan and close coupled cistern, connected with a medium level flush pipe kit T33 CHR.
The distance from the wall to the soil pipe is fixed and cannot be extended, except by using the extended depth cistern C30 ( this moves the pan an extra 30mm forwards).
The cistern height can be varied by cutting the vertical flush pipe to length - maximum height is 1,425mm to the top of the cistern, minimum height is1,125mm.
Water Inlet valve hole is located on the base of cistern tank on the right hand side.
Bottom inlet valve (SP5A). Back inlet valve available as optional item (SP511).
SP511 : Back entry kit for C1/C2/C3/C4/C30, including back entry inlet valve with flexible hose and plug.
Dual flush cistern fittings with ceramic lever on the right.
Press lever down for 6 litre flush and up for 3 litre flush.
Ceramic soil connection pipes : straight connector to the wall : C29. The S trap connector bending down to the floor : C26.
SP11 51cm Cistern Lid for C1 & C2
SP511 back entry kit for C1, C3, C2, C4, C30, ARC5, including back entry inlet valve with flexible hose and plug
SP1021 bottom sealing washer of flush valve for product C1, C3, C3, C4
SP1353 brass fixing nut for all finishes products of T30, T31, T33, T34
SP8 ceramic Cistern lever for Close Coupled, Low Level Cistern
SP17A chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1
SP84 cistern flush valve with control cable for cistern fitting SP5 (excluding lever and inlet valve)
SP390 GOLD cistern Lever for C1, C3 - GOLD
SP119 decorative cover of cistern connection for T30CHR & T33CHR
SP1355 fixings for T33 CHR
SP136 flush cone washer for T33 CHR
SP187 flush pipe for T33CHR
SP1323 flush pipe wall bracket for T33 CHR
SP504-2 inlet valve for Burlington close coupled cisterns
SP508 kit for close couple cistern
SP507 kit for low level installation for close coupled cisterns C1, C2, C3, C4, T71 CHR
SP5A lever Flush Bottom Entry cistern fitting with ceramic lever
SP898 pan decoration plate (including the screws, washers and fixing nuts) of product T33 CHR
SP169 rubber insert for all finishes products of T30, T33, SP20 clip
SP17 screw fixing pack for pan and bidet
SP802 the bigger stopper for SP5A, ARCSP7, C24C, SP7
SP460 thick rubber washer for T33CHR
SP387 WC floor fixing plastic caps - GOLD
SP1744 white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals
