MyHome - 2TH Bath/Shower Mixer

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

MYBSM2THC MyHome - 2TH Bath/Shower Mixer

Material

MYBSM2THC - tap - 0

Size

MYBSM2THC - 147 x 230 x 127mm

Nett Weight

MYBSM2THC - tap - 2.45kg

Gross Weight Including Packaging

MYBSM2THC - tap - 2.85kg

Packed Dimension

MYBSM2THC - 160 x 200 x 255 = 0.0082 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

Additional Information

MyHome - 2TH Bath/Shower Mixer

Flow Rates

System Pressure	0.2 bar	0.5 bar	1 bar	2 bar	3 bar	4 bar	5 bar
Spout (aerator)	10.5	14.7	23.2	33.5	n/a	n/a	n/a

Downloads

Instructions - PDF - MYBSM2THC (English)

2D CAD-File - DWG - MYBSM2THC (MYBSM2THC_LD.dwg)

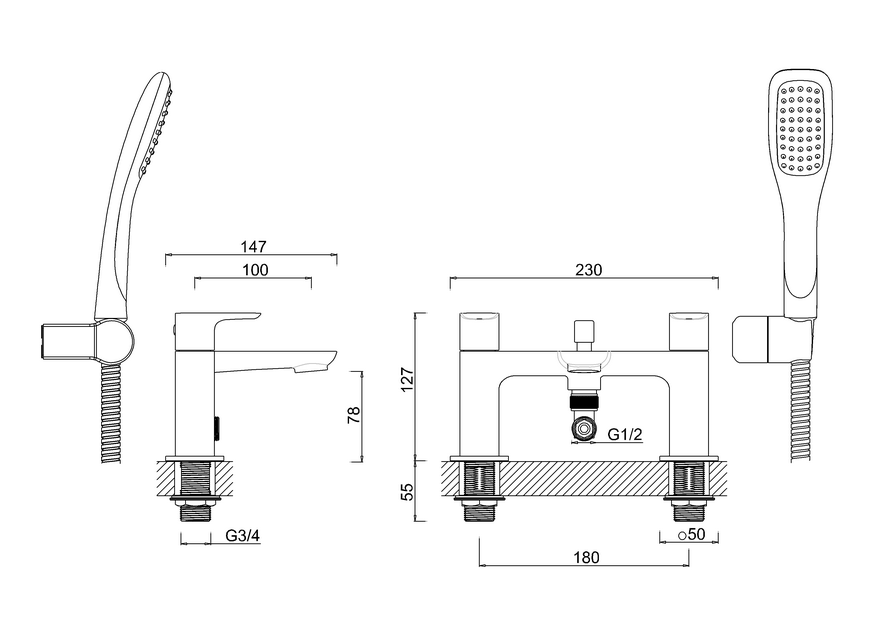

2D Drawing - PDF - MYBSM2THC (MYBSM2THC_LD.pdf) 2D Drawing - PDF - MYBSM2THC

3D DWG - File - DWG - MYBSM2THC (102023.dwg)
3D DXF - File - DXF - MYBSM2THC (102023.dxf)
3D IGS - File - IGS - MYBSM2THC (102023.igs)
3D RFA BIMM Objects - File - RFA - MYBSM2THC (102023.rfa)
3D IGS - File - IGS - MYBSM2THC (MYBSM2THC.igs)

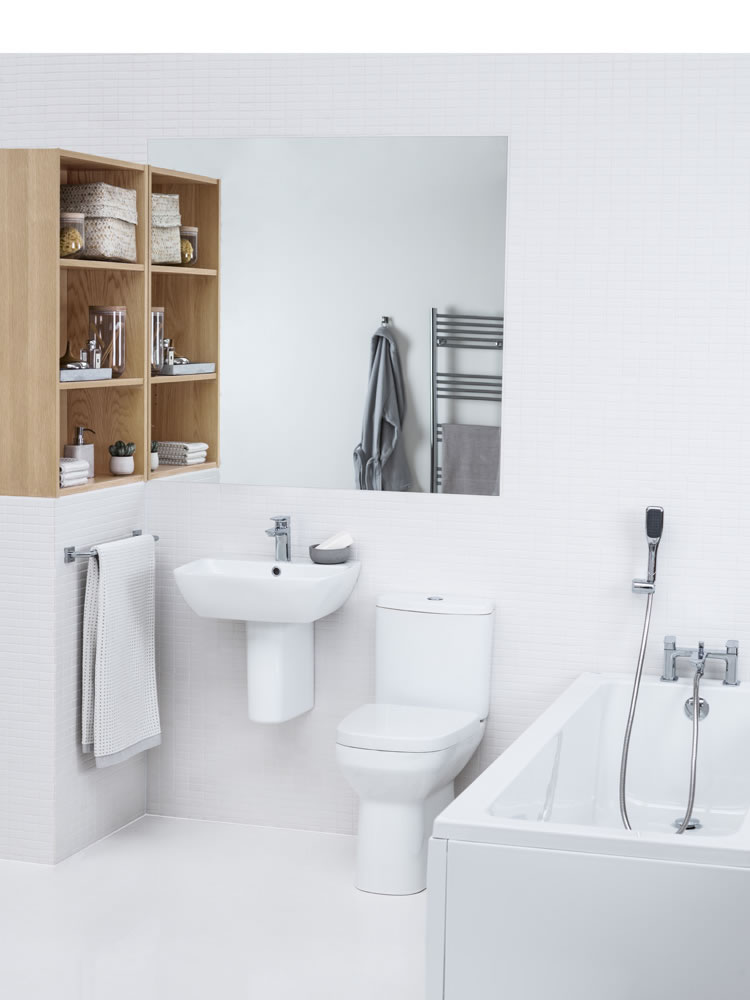

Lifestyle image 1 -

jpg
Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
