Rimless Medium Level WC
Product Options
cistern options
standard lever cisten
|
chrome aluminium cistern
|
As Shown
| T71 CHR Chrome Aluminium Low Level & Medium Level Cistern including lever cistern fittings |
| T33 CHR Medium Level Flush Pipe Kit Including Medium Ornate Brackets In Chrome |
| P20 Burlington Rimless Close Coupled Pan |
| S18 Gloss white soft close hinge seat |
Colour
| T71 CHR - cistern - Polished Chrome |
| T33 CHR - fittings - Polished Chrome |
| P20 - pan - Gloss White |
| S18 - seat - Gloss White |
Material
| T71 CHR - cistern - Aluminum |
| T33 CHR - fittings - Brass |
| P20 - pan - Vitreous China |
| S18 - seat - Urea |
Size
| T71 CHR - 430 x 200 x 380mm |
| T33 CHR - 105 x 220 x 703mm |
| P20 - 660 x 360 x 450mm |
| S18 - 370 x 439 x 56mm |
Nett Weight
| T71 CHR - cistern - 8.3kg |
| T33 CHR - fittings - 3.23kg |
| P20 - pan - 24.15kg |
| S18 - seat - 2.53kg |
Gross Weight Including Packaging
| T71 CHR - cistern - 8.9kg |
| T33 CHR - fittings - 3.94kg |
| P20 - pan - 26.5kg |
| S18 - seat - 2.76kg |
Packed Dimension
| T71 CHR - 450 x 210 x 355 = 0.0335 m3 |
| T33 CHR - 740 x 180 x 185 = 0.0246 m3 |
| P20 - 672 x 377 x 475 = 0.1203 m3 |
| S18 - 462 x 376 x 72 = 0.0125 m3 |
Guarantee
|
Lifetime guarantee*
*Full terms & conditions here |
Standards Information
|
BS EN 248:2002 |
|
BS EN 33:2019 |
|
BS EN 14055:2018 |
|
BS EN 997:2018 |
| SP1353 | brass fixing nut for all finishes products of T30, T31, T33, T34 |
| SP17A | chrome cover caps(pair) for Burlington pans, bidet, semi pedestal and U1 |
| SP119 | decorative cover of cistern connection for T30CHR & T33CHR |
| SP1355 | fixings for T33 CHR |
| SP136 | flush cone washer for T33 CHR |
| SP187 | flush pipe for T33CHR |
| SP1323 | flush pipe wall bracket for T33 CHR |
| SP504-2 | inlet valve for Burlington close coupled cisterns |
| SP898 | pan decoration plate (including the screws, washers and fixing nuts) of product T33 CHR |
| SP169 | rubber insert for all finishes products of T30, T33, SP20 clip |
| SP17 | screw fixing pack for pan and bidet |
| SP460 | thick rubber washer for T33CHR |
| SP387 | WC floor fixing plastic caps - GOLD |
| SP1744 | white caps & inserts (2 pieces) of floor fixings for Burlington pans, bidets and urinals |
Downloads
- Instructions - PDF - T71 CHR (English)
- Instructions - PDF - T33 CHR (English)
- Instructions - PDF - S18 (English)
- Instructions - PDF - T33 CHR (French)
- Instructions - PDF - S18 (French)
- Instructions - PDF - T71 CHR (French)
-
2D CAD-File - DWG -
T71 T33 P20
(P20 T71 T33 CHR_20201127.dwg)
-

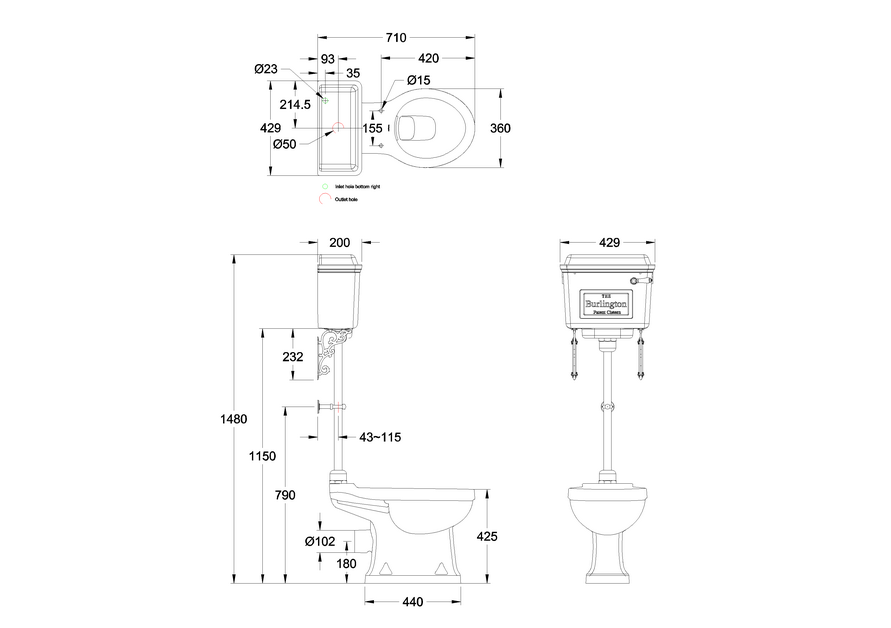

2D Drawing - PDF -
T71 T33 P20
(P20 T71 T33 CHR_20201127.pdf)
2D Drawing - PDF - T71 T33 P20
-
3D DWG - File - DWG
-
T71 T33 P20
(P20 T71 T33 CHR.dwg)
-
3D RFA BIMM Objects - File - RFA
-
T71 T33 P20
(100032-20201116.rfa)
-
3D STP - File - STP
-
T71 T33 P20
(P20.stp)
- 3D IGS - File - IGS - S18 (S18.igs)
