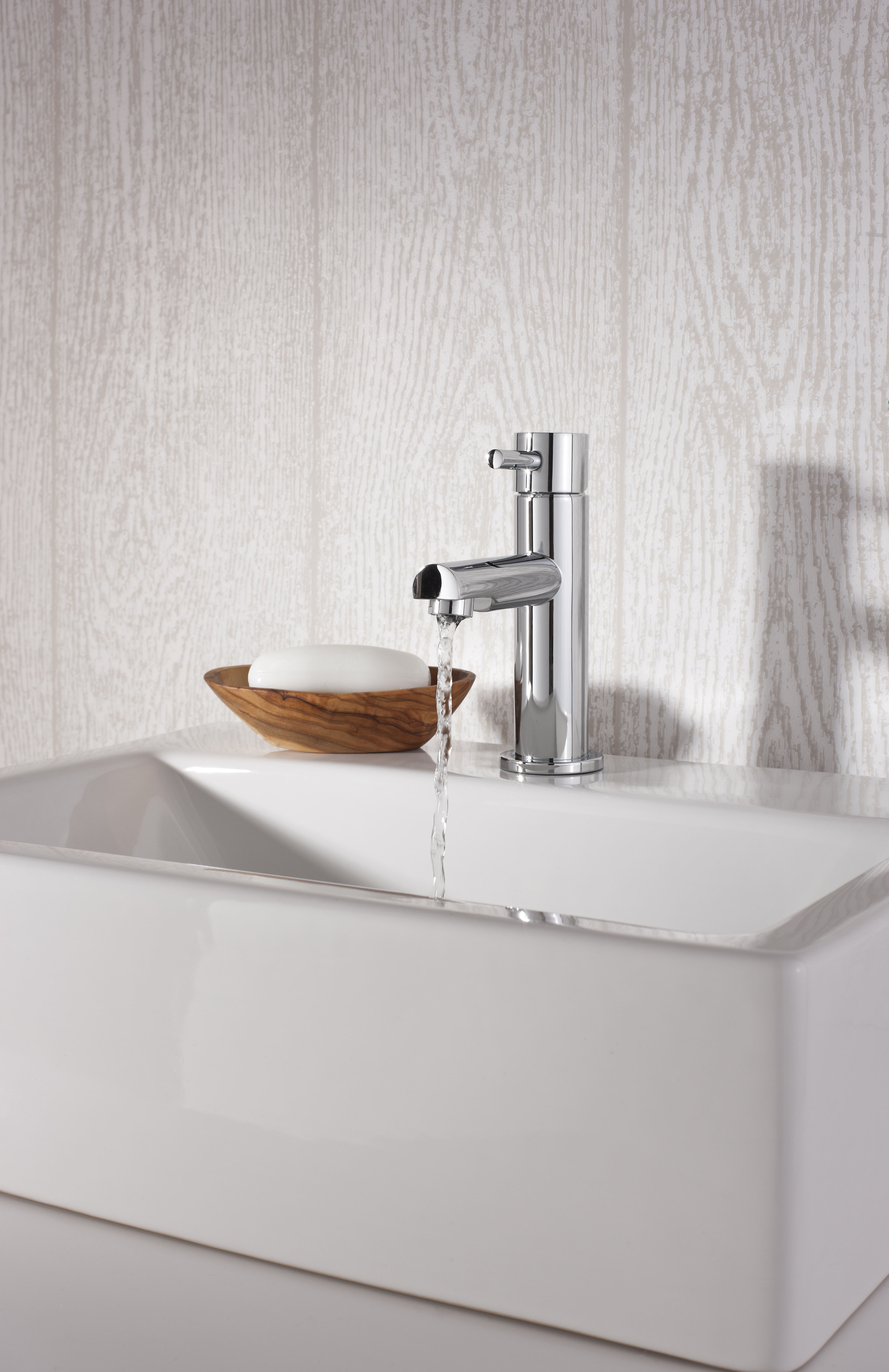

Kai Lever mini basin monobloc
As Shown
| KL114DNC Basin Monobloc MiNi without pop up waste |
Nett Weight
| KL114DNC - mini basin monobloc - 1.2kg |
Gross Weight Including Packaging
| KL114DNC - mini basin monobloc - 1.3kg |
Packed Dimension
| KL114DNC - 199 x 199 x 85 = 0.0034 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Range: Kai Lever |
|
Spout Projection: 84mm |
|
Spout Style: Fixed Spout |
|
Mount Type: Basin Mounted |
|
Style: Modern |
|
Lever Type: Single Lever |
|
Water Pressure: LP |
|
Waste: Without pop-up-waste |
| FT110FB1 | basin flexitail from blade basin monoblo |
| LV120FA1 | basin lever from Kai wall mounted tap |
| 2211-0046-1-N0 | c clamping single nipple mounted |
| M1A036C-CR | KL114DNC ANTISPLASH |
| H1T02DC | KL114DNC lever |
Downloads
-
2D CAD-File - DWG -
KL114DNC
(KL114DNC1Y62DC-SL_1.dwg)
-

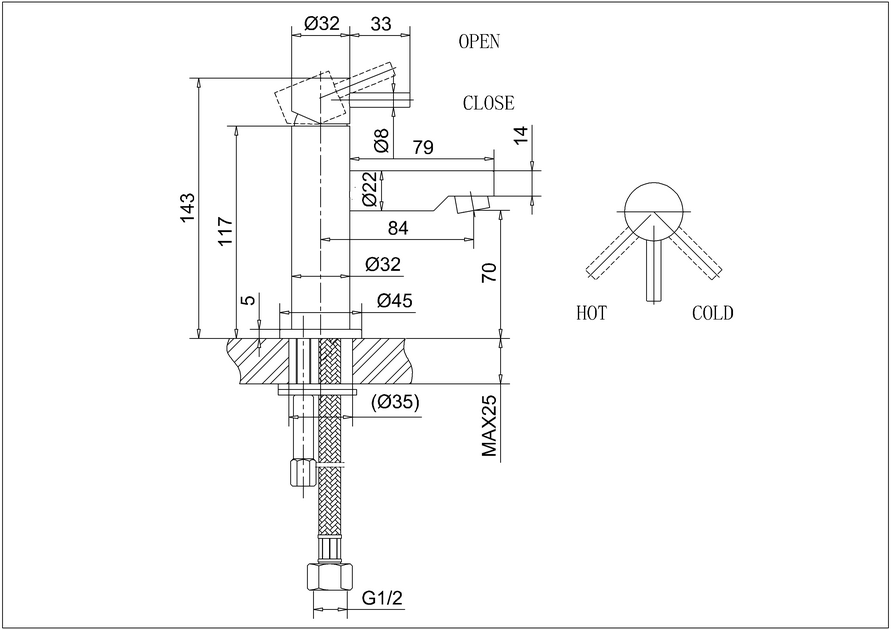

2D Drawing - PDF -
KL114DNC
(KL114DNC1Y62DC-SL_1.pdf)
2D Drawing - PDF - KL114DNC
