MPRO mini basin monobloc
As Shown
| PRO114DNC Mini Basin Monobloc No Waste Chrome |
Nett Weight
| PRO114DNC - mini basin monobloc - 1.2kg |
Gross Weight Including Packaging
| PRO114DNC - mini basin monobloc - 1.3kg |
Packed Dimension
| PRO114DNC - 285 x 235 x 72 = 0.0048 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN817 |
Additional Information
|
Range: Mike Pro |
|
Spout Projection: 92mm |
|
Spout Style: Fixed Spout |
|
Mount Type: Basin Mounted |
|
Style: Modern |
|
Lever Type: Single Lever |
|
Water Pressure: MP |
|
Waste: Without pop-up-waste |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (aerator) | 1.54 | 2.67 | 3.73 | 4.31 | 4.28 | 4.53 | 4.78 |
| FT110FB1 | basin flexitail from blade basin monoblo |
| 2211-0046-1-N0 | c clamping single nipple mounted |
| CGPRO114M | cartridge of PRO110DNC and PRO114DNC |
Downloads
- 2D CAD-File - DWG - PRO114DNC (PRO114DNC-DD-180525.dwg)
-

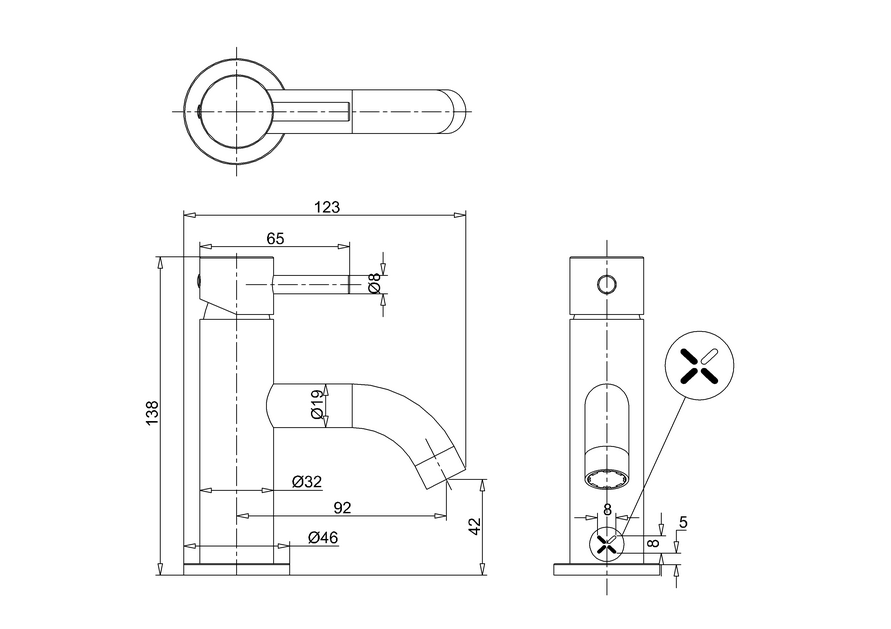

2D Drawing - PDF -
PRO114DNC
(PRO114DNC-DD-180525.pdf)
2D Drawing - PDF - PRO114DNC
