MPRO mini basin monobloc
As Shown
| PRO118DNC Basin Mini Monobloc No Waste Chrome |
Material
| PRO118DNC - basin monobloc - Brass |
Nett Weight
| PRO118DNC - basin monobloc - 1.31kg |
Gross Weight Including Packaging
| PRO118DNC - basin monobloc - 1.56kg |
Packed Dimension
| PRO118DNC - 285 x 235 x 72 = 0.0048 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN817 |
Additional Information
|
Range: Mike Pro |
|
Spout Projection: 110mm |
|
Spout Style: Swivel Spout |
|
Mount Type: Basin Mounted |
|
Style: Modern |
|
Lever Type: Twin Lever |
|
Water Pressure: MP |
|
Waste: Without pop-up-waste |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (aerator) | 1.62 | 3.05 | 4.21 | 4.55 | 4.46 | 4.73 | 5 |
| FT110FB1 | basin flexitail from blade basin monoblo |
| 2211-0046-1-N0 | c clamping single nipple mounted |
| CGPRO116C | cartridge cold of PRO135DNC, PRO116DNC and PRO118DNC |
| CGPRO116H | cartridge hot of PRO135DNC, PRO116DNC and PRO118DNC |
Downloads
-
2D CAD-File - DWG -
PRO118DNC
(PRO118DNC-DD-190410.dwg)
-

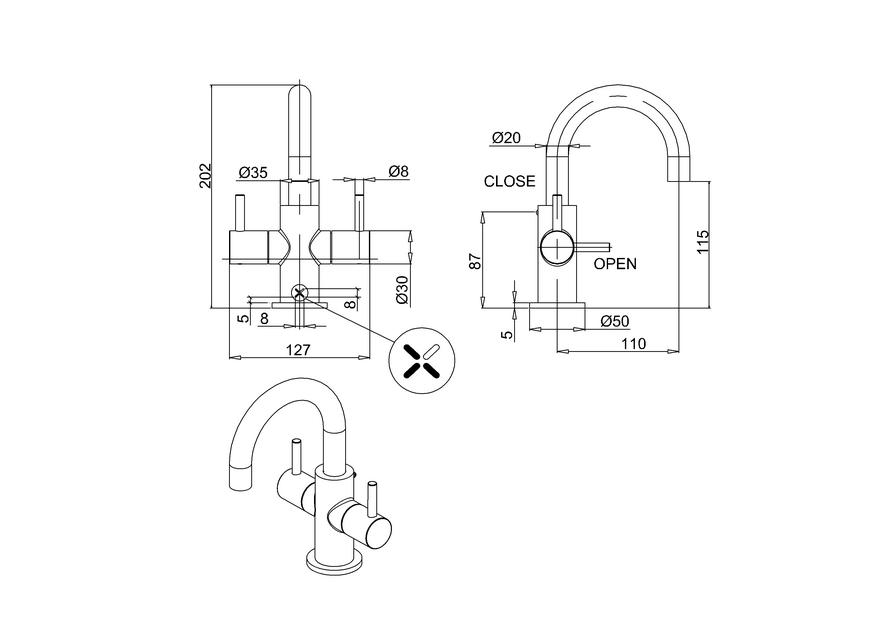

2D Drawing - PDF -
PRO118DNC
(PRO118DNC-DD-190410.pdf)
2D Drawing - PDF - PRO118DNC
