Kai Lever bath shower mixer with kit

asaq2.Model.Web_product_new?.web_name

Alternate Text

As Shown

KL422DC −

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

Additional Information

Range: Kai Lever

Spout Projection: 122mm

Spout Style: Fixed Spout

Mount Type: Bath Mounted

Style: Modern

Lever Type: Twin Lever

Water Pressure: LP

PRO974C	c finish 1.5m hose
X1A018N_C	KL422DC COLD VALVE
X2A018N_H	KL422DC HOT VALVE

Downloads

Instructions - PDF - KL422DC (English)

2D CAD-File - DWG - KL422DC (KL422DC6P8P7C-SL-DD-20120826.dwg)

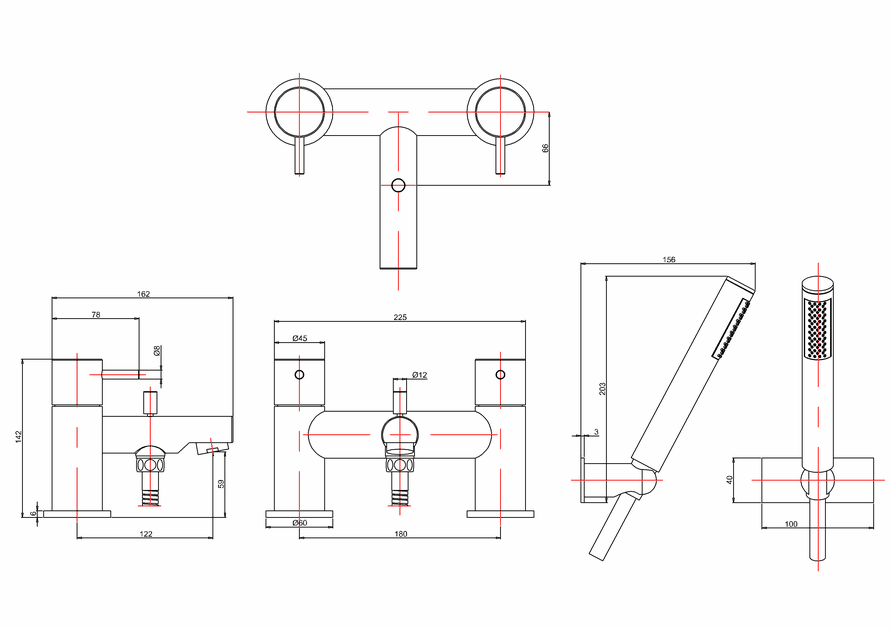

2D Drawing - PDF - KL422DC (KL422DC6P8P7C-SL-DD-20120826.pdf) 2D Drawing - PDF - KL422DC

3D IGS - File - IGS - KL422DC (kl422dc_asm.igs)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
