Kai Lever thermostatic bath shower mixer with kit
As Shown
| KL418TFC Thermostatic floor standing BSM with kit |
Colour
| KL418TFC - - Polished Chrome |
Material
| KL418TFC - - Brass |
Nett Weight
| KL418TFC - - 10kg |
Gross Weight Including Packaging
| KL418TFC - - 10.6kg |
Packed Dimension
| KL418TFC - 1085 x 360 x 150 = 0.0586 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Spout Style: Fixed Spout |
|
Mount Type: Floor Standing |
|
Style: Modern |
|
Lever Type: Single Lever |
|
Water Pressure: HP2 |
|
Range: Kai Lever |
|
Spout Projection: 238mm |
| FX416FA2 | base support parts #28~#46from DE416FC, KL418TFC Current VERSION |
| SSP010 | the diverter control (parts 24~28) from the KL418TFC |
| SSP011 | thermo handle for the KL418TFC |
| X7A020N_1 | thermostatic cartridge (part 33) from KL418TFC |
Downloads
-
2D CAD-File - DWG -
KL418TFC
(KL418TFC62836702C-DD-171028.dwg)
-

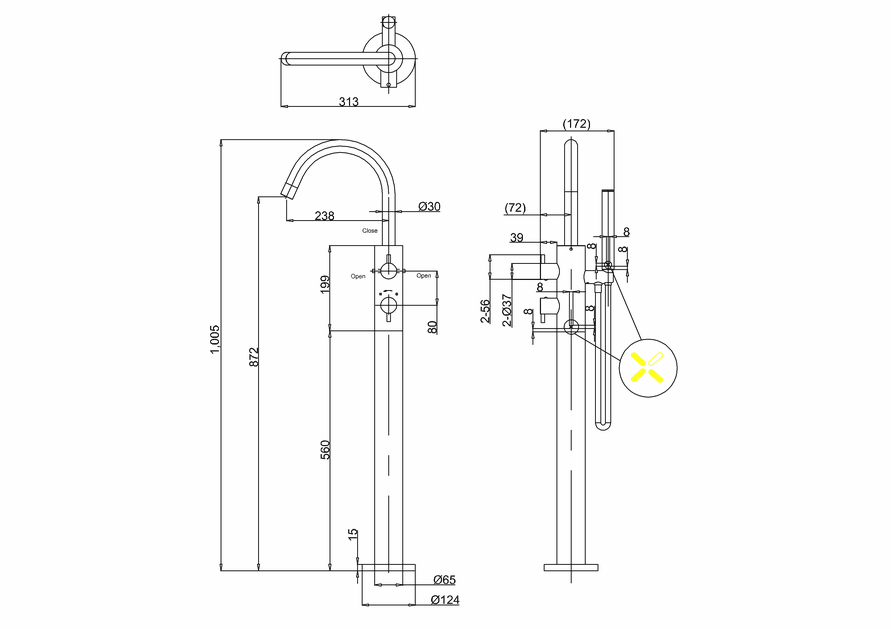

2D Drawing - PDF -
KL418TFC
(KL418TFC62836702C-DD-171028.pdf)
2D Drawing - PDF - KL418TFC
