Kai Lever manual shower valve

asaq2.Model.Web_product_new?.web_name

Product Options

Kai Lever manual shower valve Chrome

Without diverter

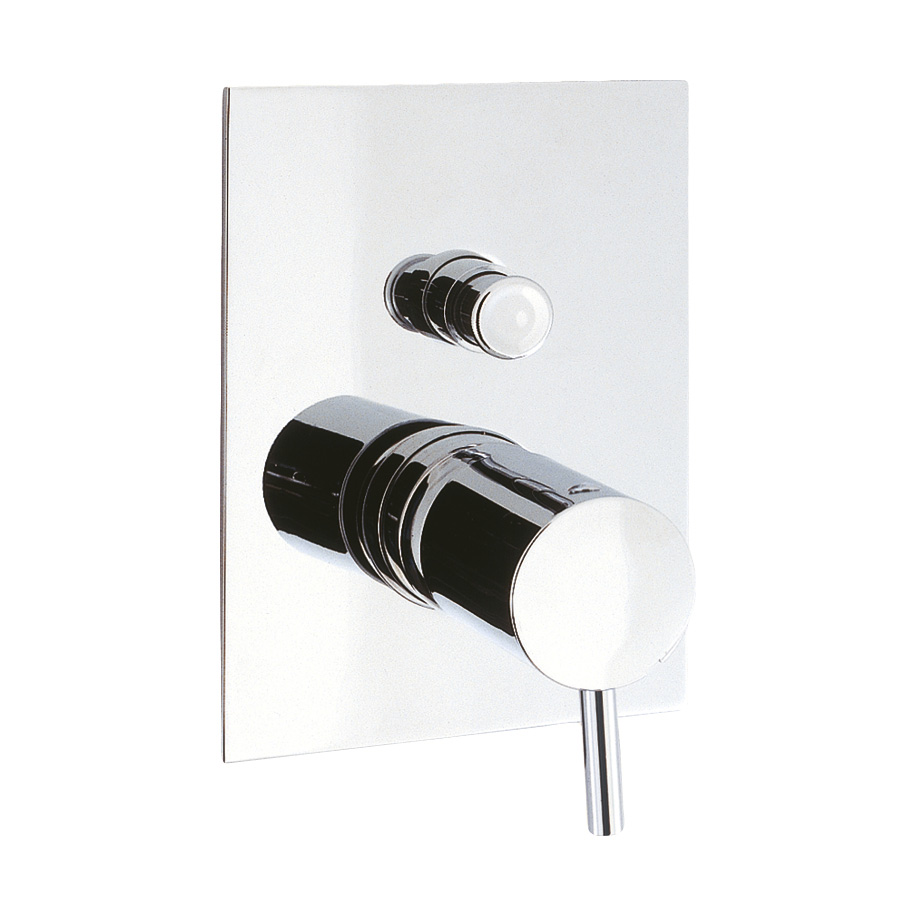

Kai Lever manual shower valve with diverter Chrome

With diverter

Alternate Text

As Shown

KL0004RC Manual Shower Valve recessed

Colour

KL0004RC - recessed shower valve, thermostatic shower valve, Traditional shower valve - Polished Chrome

Material

KL0004RC - recessed shower valve, thermostatic shower valve, Traditional shower valve - Brass

Size

KL0004RC - 67 x 100 x 100mm

Nett Weight

KL0004RC - recessed shower valve, thermostatic shower valve, Traditional shower valve - 0.7kg

Gross Weight Including Packaging

KL0004RC - recessed shower valve, thermostatic shower valve, Traditional shower valve - 0.88kg

Packed Dimension

KL0004RC - 165 x 135 x 85 = 0.0019 m3

Guarantee

15 year guarantee*
*Full terms & conditions here

Standards Information

Additional Information

Range: Kai Lever

Mount Type: Wall Mounted

Style: Modern

Thermo Type: Non-thermostatic

Water Pressure: HP1

CG110FL1	cartridge From KL0004RC
CC120FA2	chrome Cartridge Collar from KL120WNC, KL0004RC
T5T317C	collar (part #5) from KL0004RC
Z0A240C	square Back Plate From KL0004RC

Downloads

Instructions - PDF - KL0004RC (English)

2D CAD-File - DWG - KL0004RC (KL0004RCX9A042C-DD-120714.dwg)

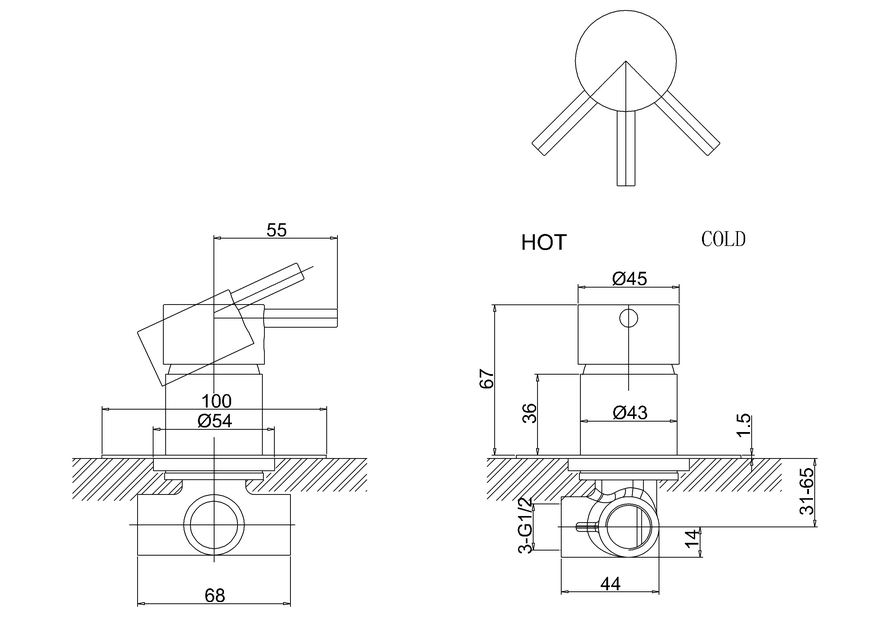

2D Drawing - PDF - KL0004RC (KL0004RCX9A042C-DD-120714.pdf) 2D Drawing - PDF - KL0004RC

3D IGS - File - IGS - KL0004RC (KL0004RC.igs)

Product image 1 - jpg

* Please note that some of the drawings might not be drawn to scale. Please refer to actual dimensions marked on the drawings.
