Standard Height Concealed WC Cistern
As Shown
| WCC47X46+ Standard Height Concealed Cistern Top/front |
Colour
| WCC47X46+ - - No Finish |
Material
| WCC47X46+ - - Plastic |
Nett Weight
| WCC47X46+ - - 3kg |
Gross Weight Including Packaging
| WCC47X46+ - - 4.26kg |
Packed Dimension
| WCC47X46+ - 620 x 510 x 170 = 0.0538 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Depth: 140mm |
|
Features: UK sized inlet and outlet pipe work |
|
Simple mechanical or cable connection method to ensure high performance |
|
Complete with accessible isolating valve |
| B3211-D-ESH6 | fill Valve WCF82X50+, WCC47X46+ |
| K4030-G-ESH4 | flush Siphon WCF82X50+, WCC47X46+ |
| K9564-ESH1 | int. Seal WCF82x50+, WCC47X46+ siphon (10pcs, pack) |
| K9503-ESH3 | seal ring for K210A |
Downloads
-
2D CAD-File - DWG -
WCC47X46+
(WCC47X46__1.dwg)
-

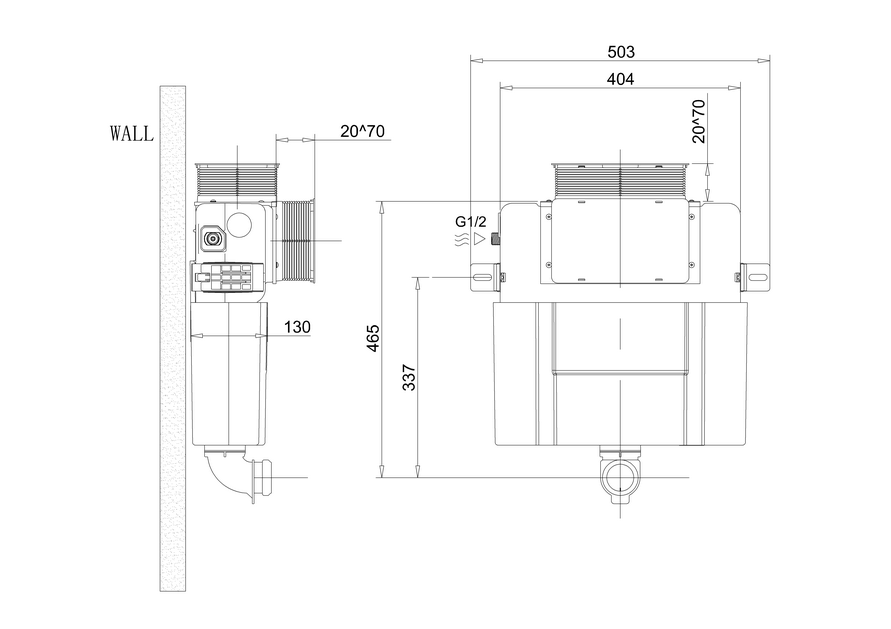

2D Drawing - PDF -
WCC47X46+
(WCC47X46__1.pdf)
2D Drawing - PDF - WCC47X46+
