0.82m Height Wall Hung WC Support Frame

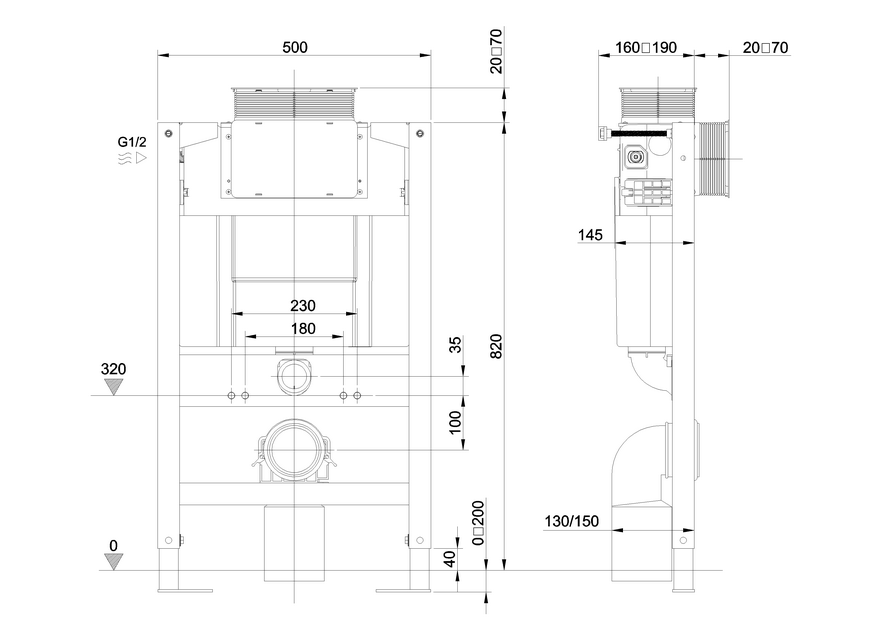

As Shown
| WCF82X50+ WC Frame & Cistern 820 X 500mm |
Nett Weight
| WCF82X50+ - frame for WC units - 14.9kg |
Gross Weight Including Packaging
| WCF82X50+ - frame for WC units - 15.65kg |
Packed Dimension
| WCF82X50+ - 580 x 230 x 915 = 0.1221 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Weight Tested: Epoxy power coated steel frame - tested to take up to 400Kgs weight |
|
Features: Large feet for easy rear fixing (specially designed for UK timber floor) |
|
Supplied complete with all fittings for installation |
|
Adjustable feet with rubber sound deadening pads |
|
UK sized inlet and outlet pipe work |
|
Easy install wall brackets for vertical or horizontal fixing |
| K9629-ESH1 | BASE SEAL WCF82X50 WCF47X46 WCF98X50 |
| K9502-ESH2 | discharge bend DN100 used on WCF82X50+ |
| B3211-D-ESH6 | fill Valve WCF82X50+, WCC47X46+ |
| K9652-ESH1 | fitting Bracket for WCF82X50 |
| K4030-G-ESH4 | flush Siphon WCF82X50+, WCC47X46+ |
| B3211-D-ESH2 | INLET WCF82X50 WCF47X46 WCF98X50 |
| K9564-ESH1 | int. Seal WCF82x50+, WCC47X46+ siphon (10pcs, pack) |
| K9565-ESH1 | K9565-ESH1 Gearing bracket(part no. 11, 12, 13, 14, 15) |
| K9657-ESH1 | retaining clips for K9652-ESH1 |
| B9432-ECL1 | service Kit for WCC49X50+ WCF82X50+ WCF98X50+ |
| K4020-G-ESH1 | SIPHON WCF82X50 WCF47X46 WCF98X50 |
| K9643-ESH1 | TOP SEAL WCF82X50 WCF47X46 WCF98X50 |
Downloads
-
2D CAD-File - DWG -
WCF82X50+
(WCF82X50.dwg)
-
2D Drawing - PDF -
WCF82X50+
(WCF82X50.pdf)
2D Drawing - PDF - WCF82X50+
