0.98m Height Wall Hung WC Support Frame
As Shown
| WCF98X50+ 980 HEIGHT FRAME AND CISTERN |
Colour
| WCF98X50+ - - No Finish |
Material
| WCF98X50+ - - Plastic |
Nett Weight
| WCF98X50+ - - 13.77kg |
Gross Weight Including Packaging
| WCF98X50+ - - 16.25kg |
Packed Dimension
| WCF98X50+ - 580 x 230 x 1080 = 0.1441 m3 |
Guarantee
|
2 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Weight Tested: Epoxy power coated steel frame - tested to take up to 400Kgs weight |
|
Features: Large feet for easy rear fixing (specially designed for UK timber floor) |
|
Supplied complete with all fittings for installation |
|
Adjustable feet with rubber sound deadening pads |
|
UK sized inlet and outlet pipe work |
|
Easy install wall brackets for vertical or horizontal fixing |
| K9629-ESH1 | BASE SEAL WCF82X50 WCF47X46 WCF98X50 |
| B3211-D-ESH2 | INLET WCF82X50 WCF47X46 WCF98X50 |
| B9432-ECL1 | service Kit for WCC49X50+ WCF82X50+ WCF98X50+ |
| K4020-G-ESH1 | SIPHON WCF82X50 WCF47X46 WCF98X50 |
| K9643-ESH1 | TOP SEAL WCF82X50 WCF47X46 WCF98X50 |
Downloads
-
2D CAD-File - DWG -
WCF98X50+
(WCF98X50_.dwg)
-

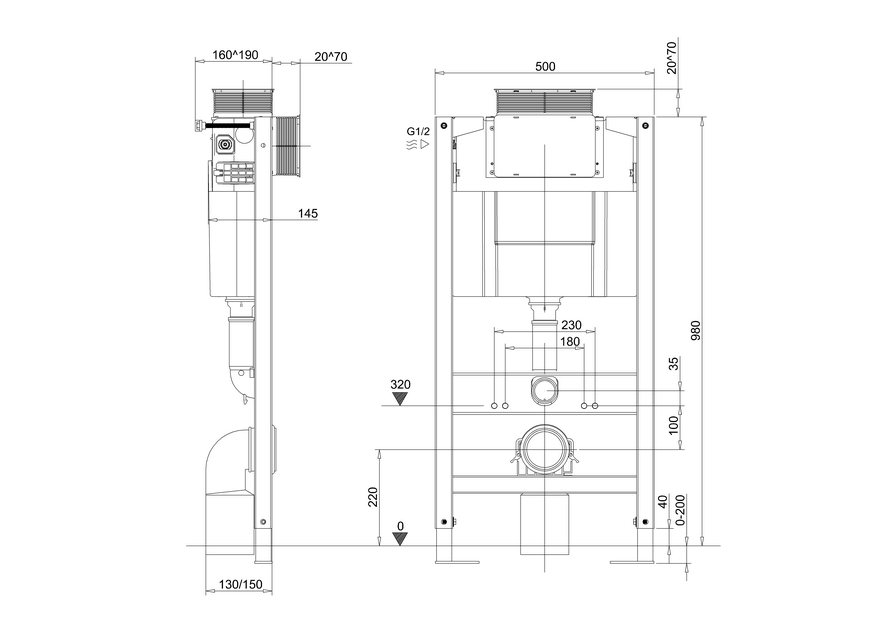

2D Drawing - PDF -
WCF98X50+
(WCF98X50_.pdf)
2D Drawing - PDF - WCF98X50+
