MPRO 300mm Showerhead
Product Options
finish options
|
Chrome
|

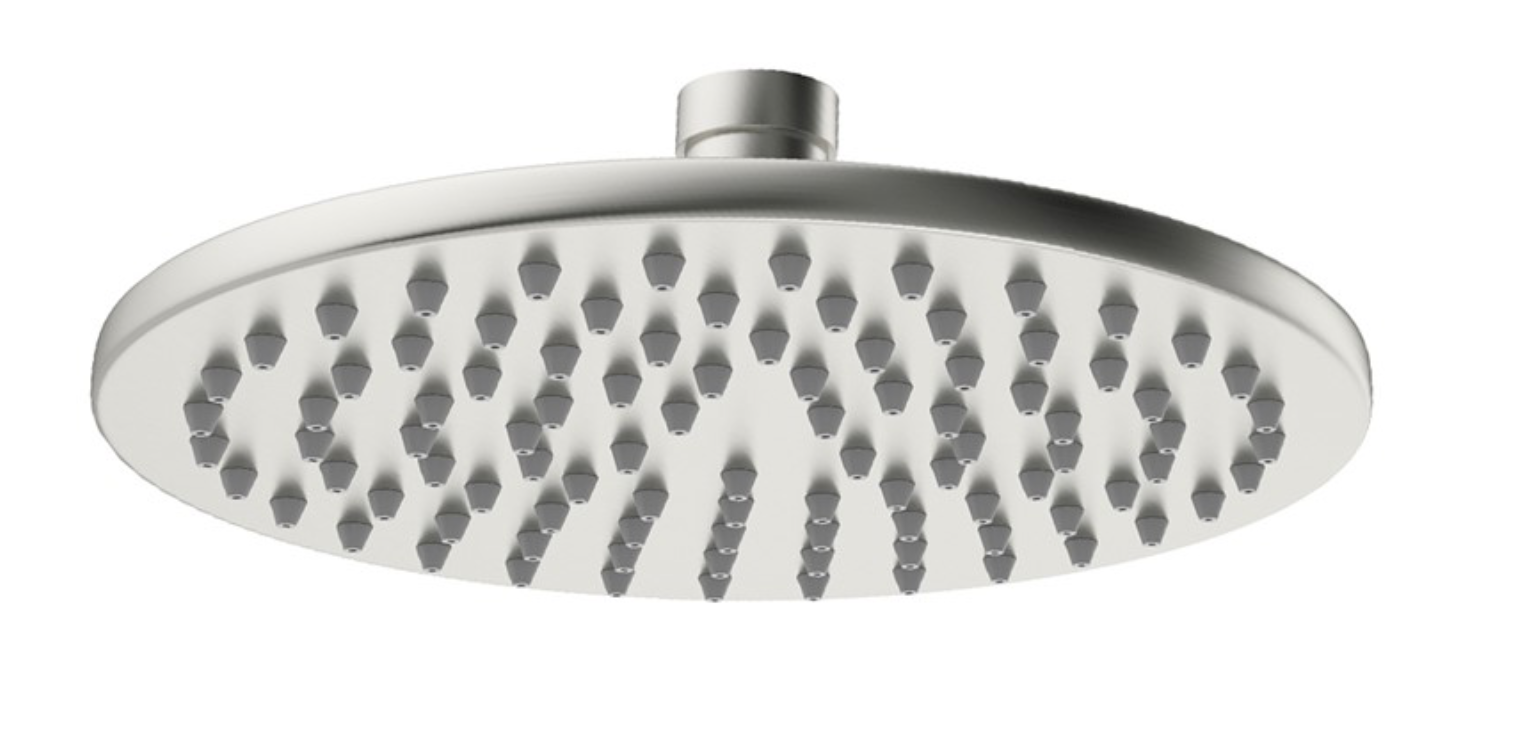

Brushed Stainless Steel
|

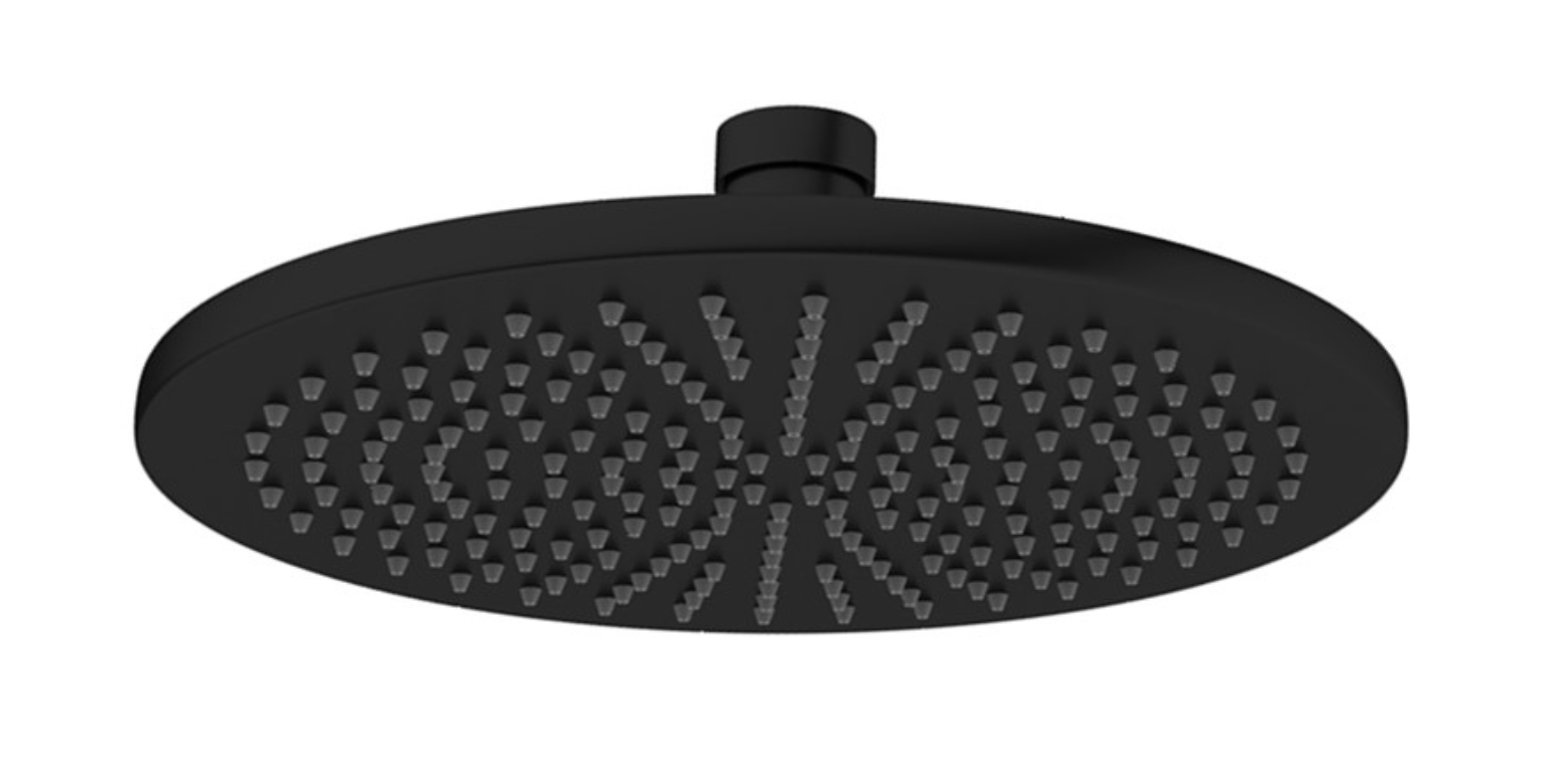

Matt Black
|

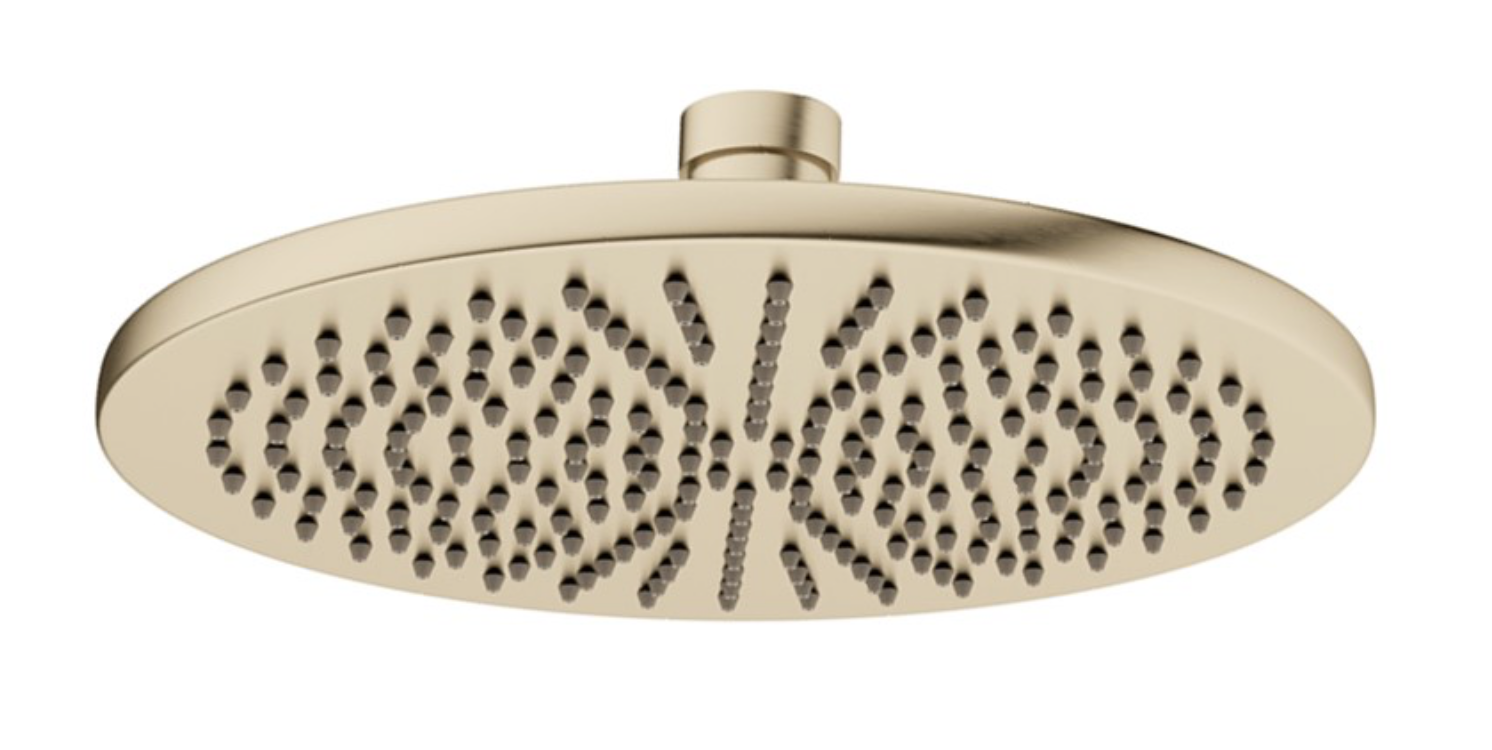

Brushed brass
|
As Shown
| PRO300C − |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Range: Mike Pro |
|
Diameter: Ø300mm |
|
Head Thickness: 5.8mm |
|
Mount Type: Ceiling or wall mount |
|
Style: Modern |
|
Style: Round |
|
Material: Brass |
|
Water Pressure: MP |
|
Guarantee: 10 Year Guarantee |
|
Product Notes: Shower arm sold separately |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (aerator) | 3.59805 | 6.032875 | 8.8434 | 11.9357 | 14.832925 | 17.1666 | 19.52195 |
Downloads
-
2D CAD-File - DWG -
PRO300C
(PRO300C-DD-190411_1.dwg)
-

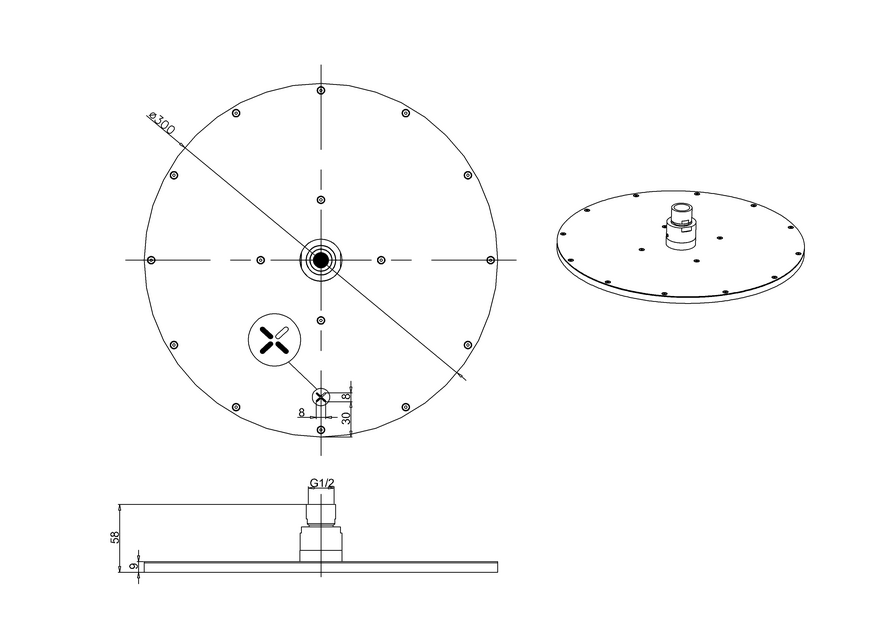

2D Drawing - PDF -
PRO300C
(PRO300C-DD-190411_1.pdf)
2D Drawing - PDF - PRO300C
