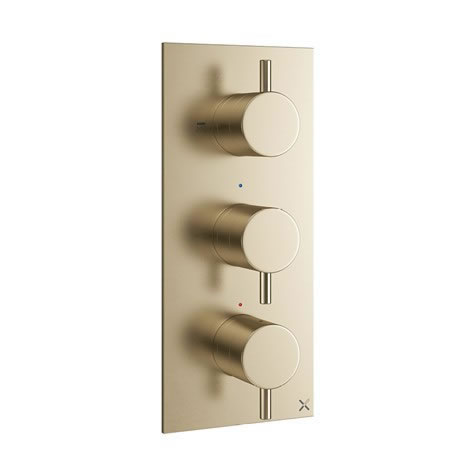

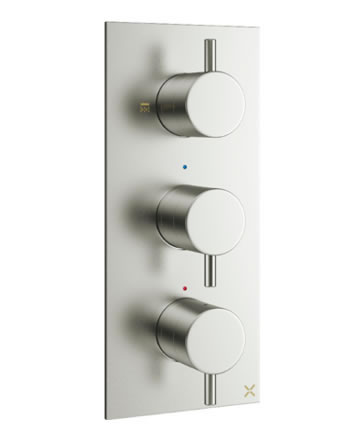

MPRO Thermostatic Shower Valve with 2 Way Diverter
Product Options
finish options
|
Chrome
|
Brushed Stainless Steel
|
Matt Black
|
Brushed brass
|
As Shown
| PRO2000LBPC − |
| WLBP2000R − |
| PRO2000RC+ - Combined product code |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Range: Mike Pro |
|
Mount Type: Wall Mounted |
|
Style: Modern |
|
Thermo Type: Thermostatic |
|
Water Pressure: LP |
|
Backplate Orientation: Portrait |
|
Outlets: 2 Outlet |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (aerator) | 9.3 | 14 | 14.8 | 24.5 | 31.7 | n/a | n/a |
| SC51 | FIXING HEX ADAPTOR FROM THERMO VALVE |
| GRTH | grub screw from Thermo lever |
| Z0A363N | NON RETURN VALVE |
| L9T168N_1 | nut only new version for CT range |
| AD1500FA1 | recessed shower valve connector 3, 4 to 3, 4 ( (No polishing; No plating) |
| SSP004 | screws (parts 17~19) of thermo valves |
| D1S397N | temperature Stop |
| THERMOWARNING | thermo Warning Label include stopper |
| NRV1000FA1 | thermostatic Non return valve |
Downloads
- 2D CAD-File - DWG - PRO2000RC+ pending.
