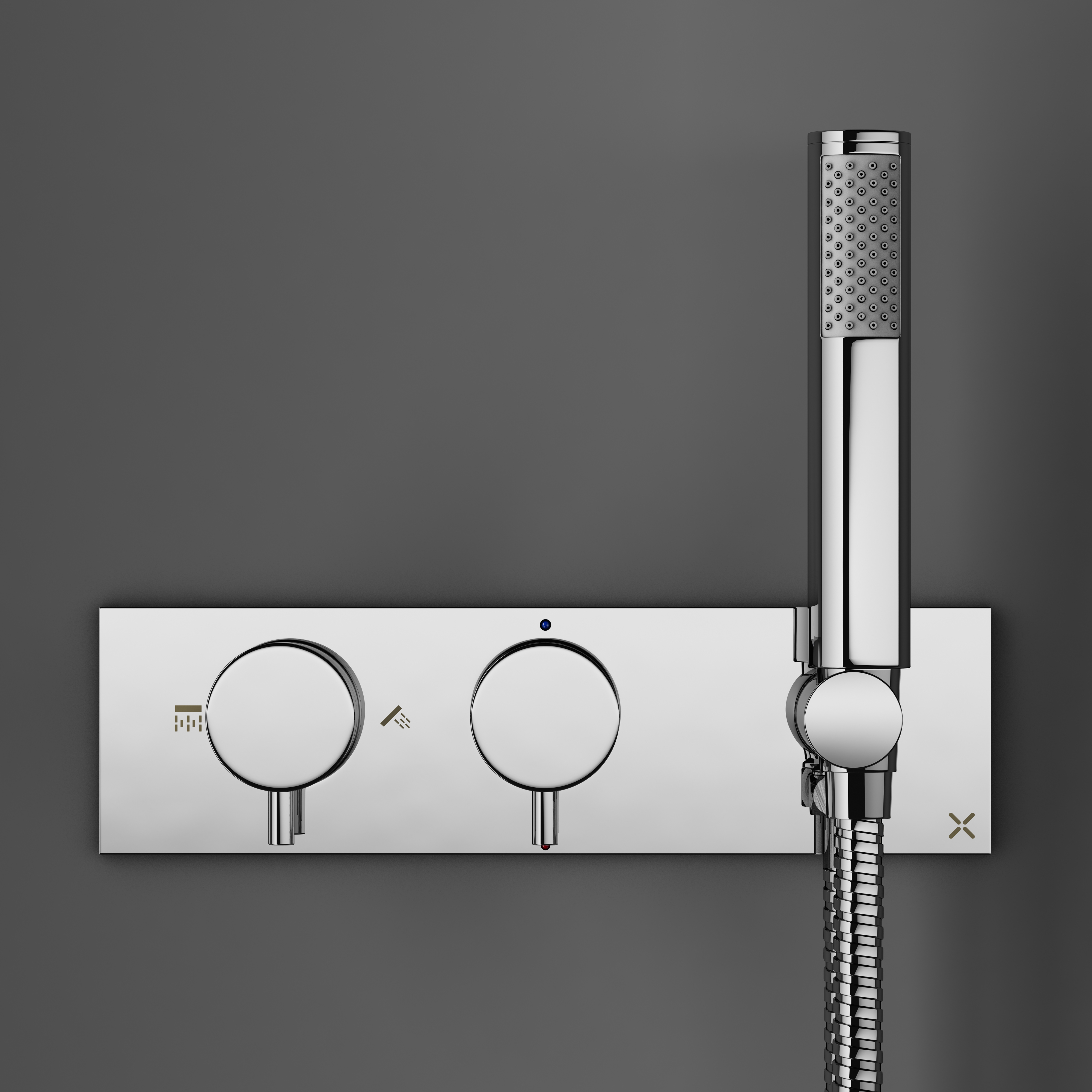

MPRO Thermostatic Shower Valve with 2 Way Diverter & Handset
Product Options
finish options
|
Chrome
|
Brushed Stainless Steel
|
Matt Black
|
Brushed brass
|
As Shown
| PRO1701LBPC 1701 Backplate, Collars & Handles Chrome |
| WLBP25X31R+ 2Outlet Thermo Valve MultiFlow NO COLLARS Landscape |
| PRO1701RC+ - Combined product code |
Gross Weight Including Packaging
| PRO1701LBPC - back plate - 2.5kg |
| WLBP25X31R+ - valve - 2.33kg |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
Additional Information
|
Range: Mike Pro |
|
Certificates: TMV2 approved valve |
|
Mount Type: Wall Mounted |
|
Style: Modern |
|
Thermo Type: Thermostatic |
|
Water Pressure: HP1 |
|
Backplate Orientation: Landscape |
|
Outlets: 2 Outlet |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (aerator) | 8.1 | 11.9 | 14.4 | 22.5 | 28 | n/a | n/a |
| 2172-0019-5-N0 | 2172-0019-5-N0 |
| PRO974C | c finish 1.5m hose |
| SC51 | FIXING HEX ADAPTOR FROM THERMO VALVE |
| GRTH | grub screw from Thermo lever |
| Z0A363N | NON RETURN VALVE |
| L9T168N-1 | nut only new version for CT range |
| SSP004 | screws (parts 17~19) of thermo valves |
| D1S397N | temperature Stop |
| THERMOWARNING | thermo Warning Label include stopper |
| NRV1000FA1 | thermostatic Non return valve |
