MPRO basin monobloc
As Shown
| PRO116DNC Basin Monobloc No Pop-Up Waste Chrome |
Material
| PRO116DNC - basin monobloc - Brass |
Nett Weight
| PRO116DNC - basin monobloc - 2.3kg |
Gross Weight Including Packaging
| PRO116DNC - basin monobloc - 3kg |
Packed Dimension
| PRO116DNC - 425 x 250 x 65 = 0.0069 m3 |
Guarantee
|
15 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN817 |
Additional Information
|
Range: Mike Pro |
|
Spout Projection: 135mm |
|
Spout Style: Fixed Spout |
|
Mount Type: Basin Mounted |
|
Style: Modern |
|
Lever Type: Twin Lever |
|
Water Pressure: MP |
|
Waste: Without pop-up-waste |
|
Certificates: KIWA Approved |
Flow Rates
| System Pressure | 0.2 bar | 0.5 bar | 1 bar | 2 bar | 3 bar | 4 bar | 5 bar |
|---|---|---|---|---|---|---|---|
| Spout (aerator) | 1.83 | 3.13 | 4.35 | 4.69 | 4.59 | 4.85 | 4.95 |
| FT110FB1 | basin flexitail from blade basin monoblo |
| 2211-0046-1-N0 | c clamping single nipple mounted |
| CGPRO116C | cartridge cold of PRO135DNC, PRO116DNC and PRO118DNC |
| CGPRO116H | cartridge hot of PRO135DNC, PRO116DNC and PRO118DNC |
Downloads
-
2D CAD-File - DWG -
PRO116DNC
(PRO116DNC-DD-190410.dwg)
-

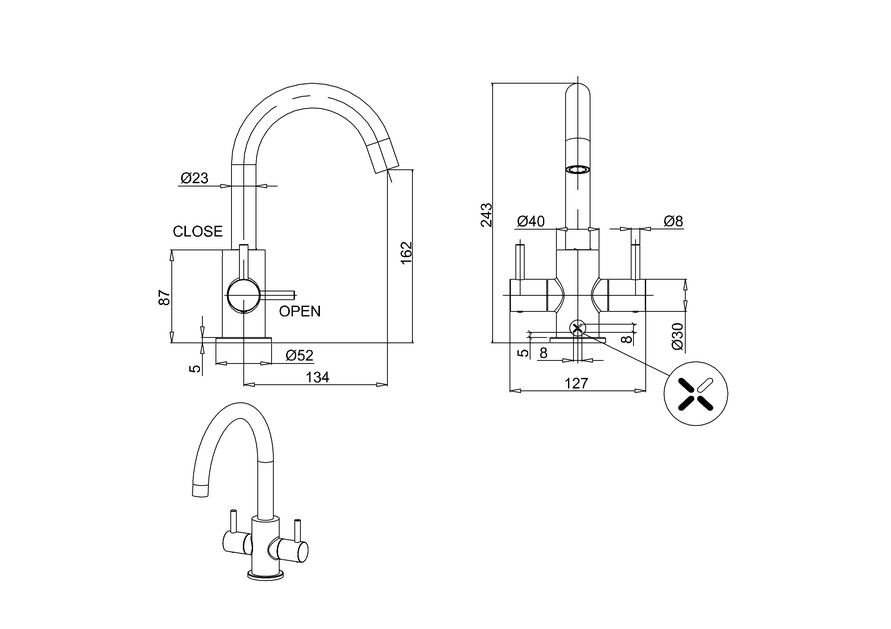

2D Drawing - PDF -
PRO116DNC
(PRO116DNC-DD-190410.pdf)
2D Drawing - PDF - PRO116DNC
