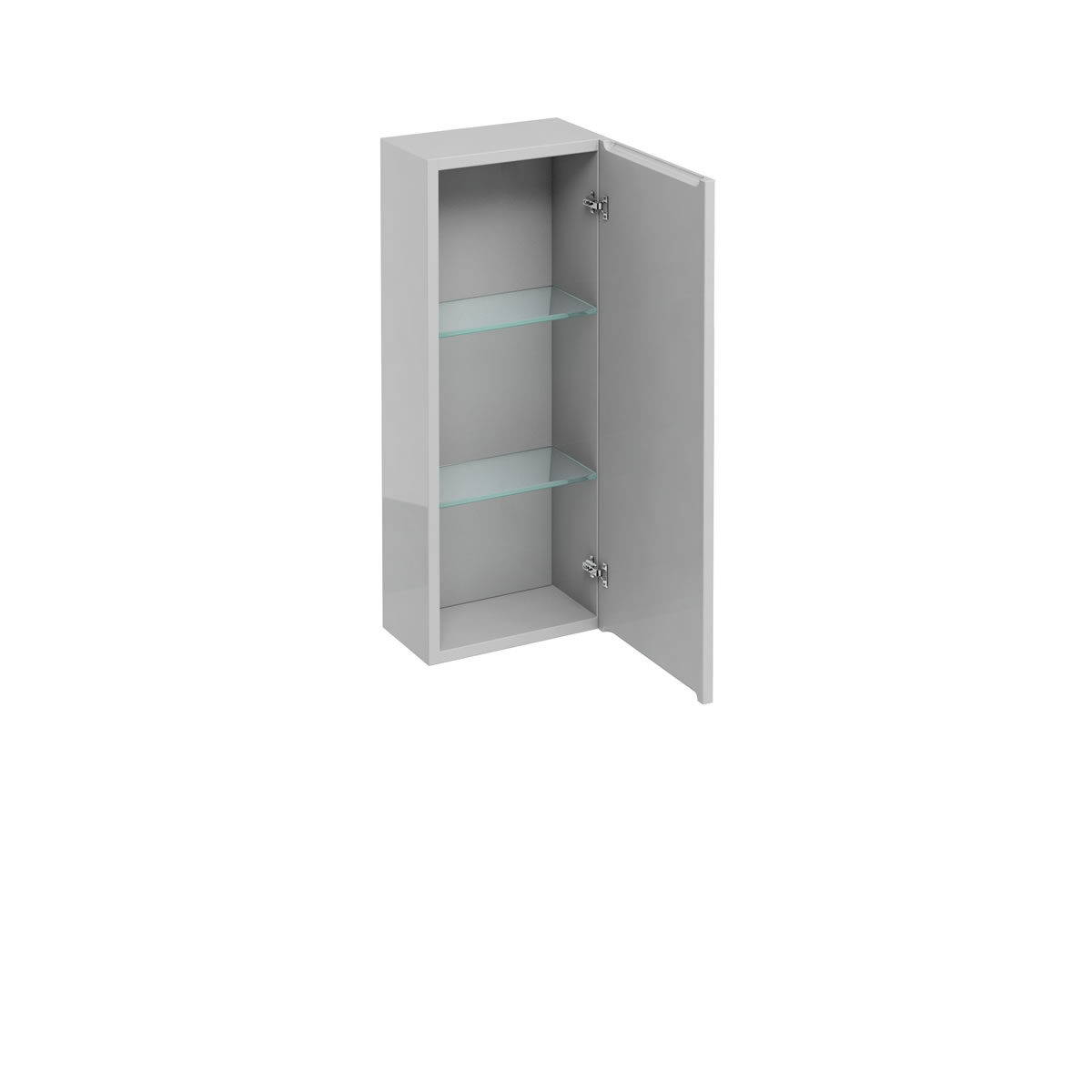

300 single door wall cabinet
Product Options
Colour options:
|
White
|
Light Grey
|
As Shown
| AC10W 300mm wall cabinet,White |
Nett Weight
| AC10W - wall cabinet - 9kg |
Gross Weight Including Packaging
| AC10W - wall cabinet - 10kg |
Packed Dimension
| AC10W - 400 x 250 x 860 = 0.086 m3 |
Guarantee
|
10 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Vinyl wrap gloss finish |
|
Soft close door |
|
5mm safety glass shelves |
|
Door can be opened left or right |
|
Rigid solid carcass - not flat pack |
| SP280 | glass shelf fixings (set of 4) |
| SP1348 | one piece of soft close hinge for Aqua straight panel |
| SP289 | wall hunging fixings (set of 2) |
Downloads
-
2D CAD-File - DWG -
AC10W
(AC10W_LD.dwg)
-

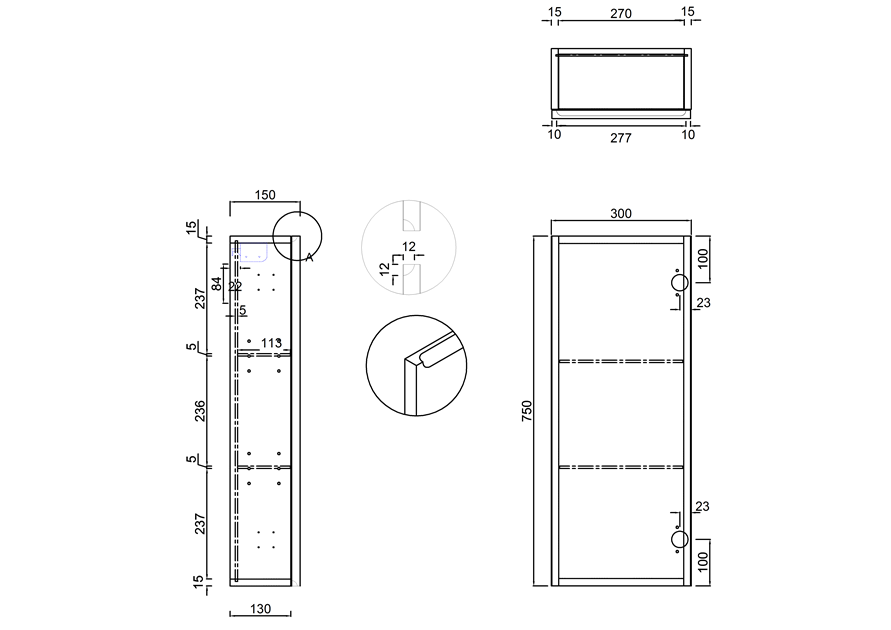

2D Drawing - PDF -
AC10W
(AC10W_LD.pdf)
2D Drawing - PDF - AC10W
-
3D DWG - File - DWG
-
AC10W
(AC10W.dwg)
-
3D DXF - File - DXF
-
AC10W
(AC10W.dxf)
-
3D IGS - File - IGS
-
AC10W
(AC10W.igs)
-
3D RFA BIMM Objects - File - RFA
-
AC10W
(AC10W.rfa)
