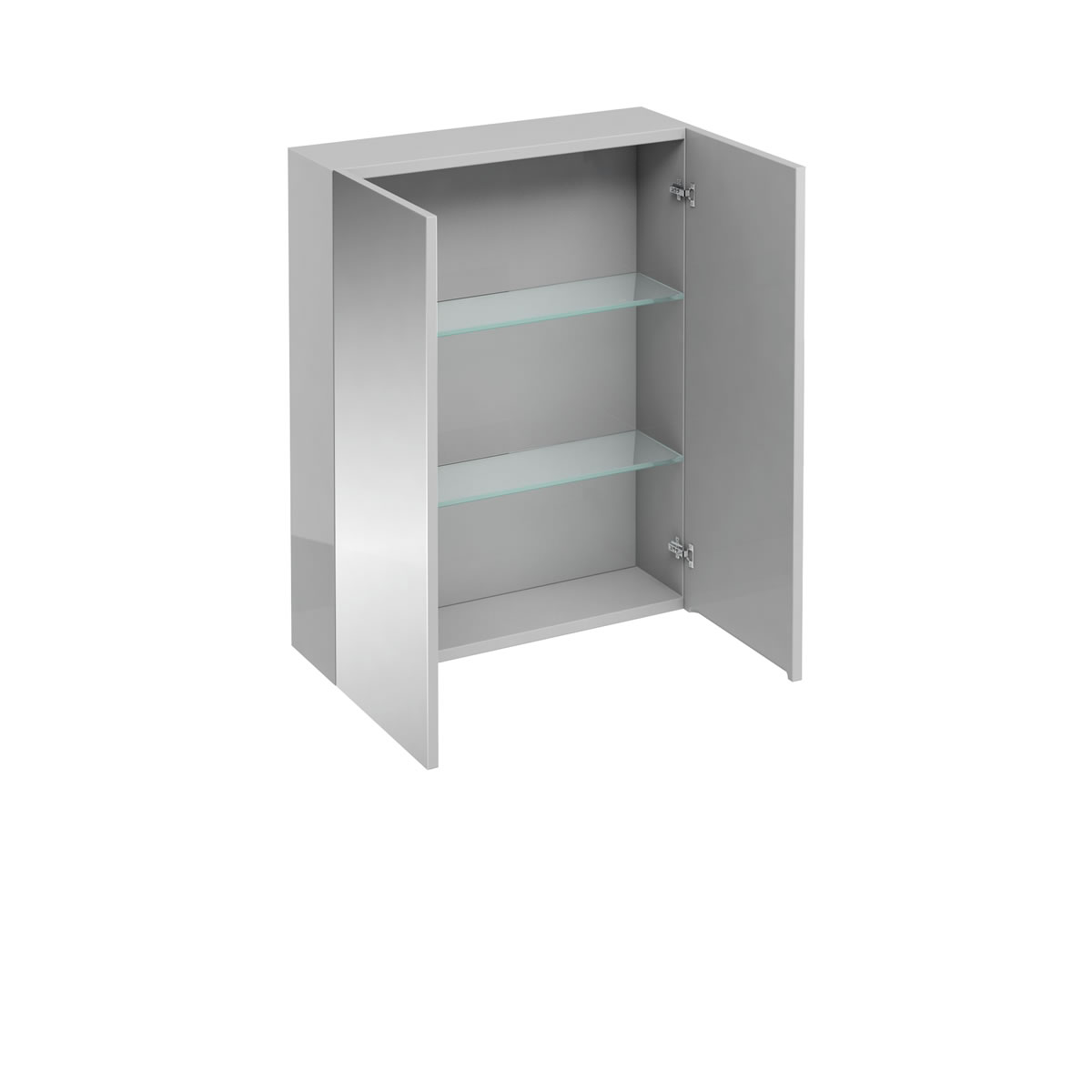

600 double mirrored door wall cabinet
Product Options
Colour options:
|
White
|
Light Grey
|
As Shown
| AC40W 600mm wall cabinet with mirrors,White |
Nett Weight
| AC40W - wall cabinet - 15.5kg |
Gross Weight Including Packaging
| AC40W - wall cabinet - 16.5kg |
Packed Dimension
| AC40W - 700 x 250 x 860 = 0.1505 m3 |
Guarantee
|
5 year guarantee*
*Full terms & conditions here |
Standards Information
|
EN14749:2016 |
Additional Information
|
Vinyl wrap gloss finish |
|
Soft close doors |
|
5mm safety glass shelves |
|
Rigid solid carcass - not flat pack |
|
Mirror backing is sealed |
|
3mm copper-free mirror |
| SP280 | glass shelf fixings (set of 4) |
| SP289 | wall hunging fixings (set of 2) |
Downloads
-
2D CAD-File - DWG -
AC40W
(AC40W_LD.dwg)
-

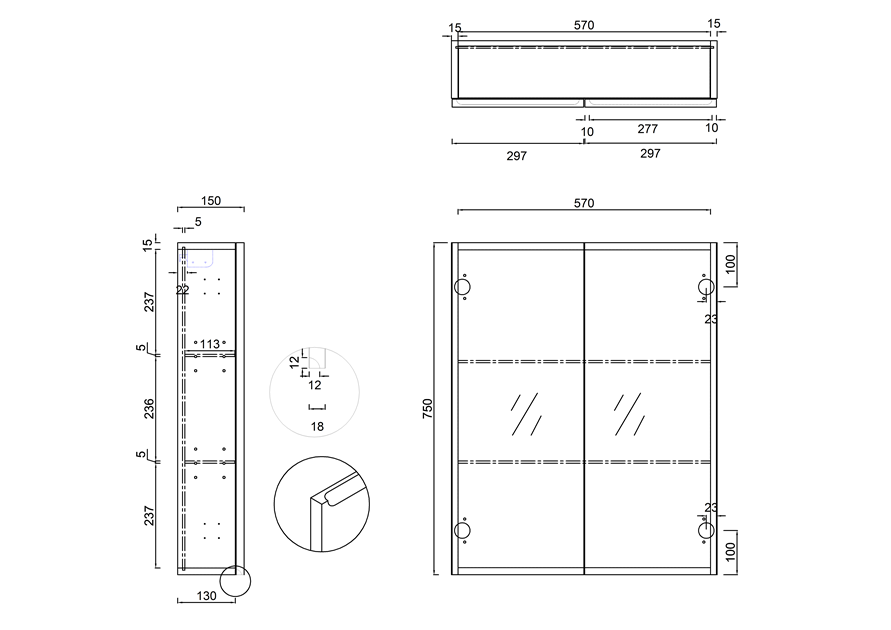

2D Drawing - PDF -
AC40W
(AC40W_LD.pdf)
2D Drawing - PDF - AC40W
-
3D DWG - File - DWG
-
AC40W
(AC40W.dwg)
-
3D DXF - File - DXF
-
AC40W
(AC40W.dxf)
-
3D IGS - File - IGS
-
AC40W
(AC40W.igs)
-
3D RFA BIMM Objects - File - RFA
-
AC40W
(AC40W.rfa)
